Shenzhen Sanyi Technology Co., Ltd. >> 12V/3A/6A Power Adapter with 2pin Connector

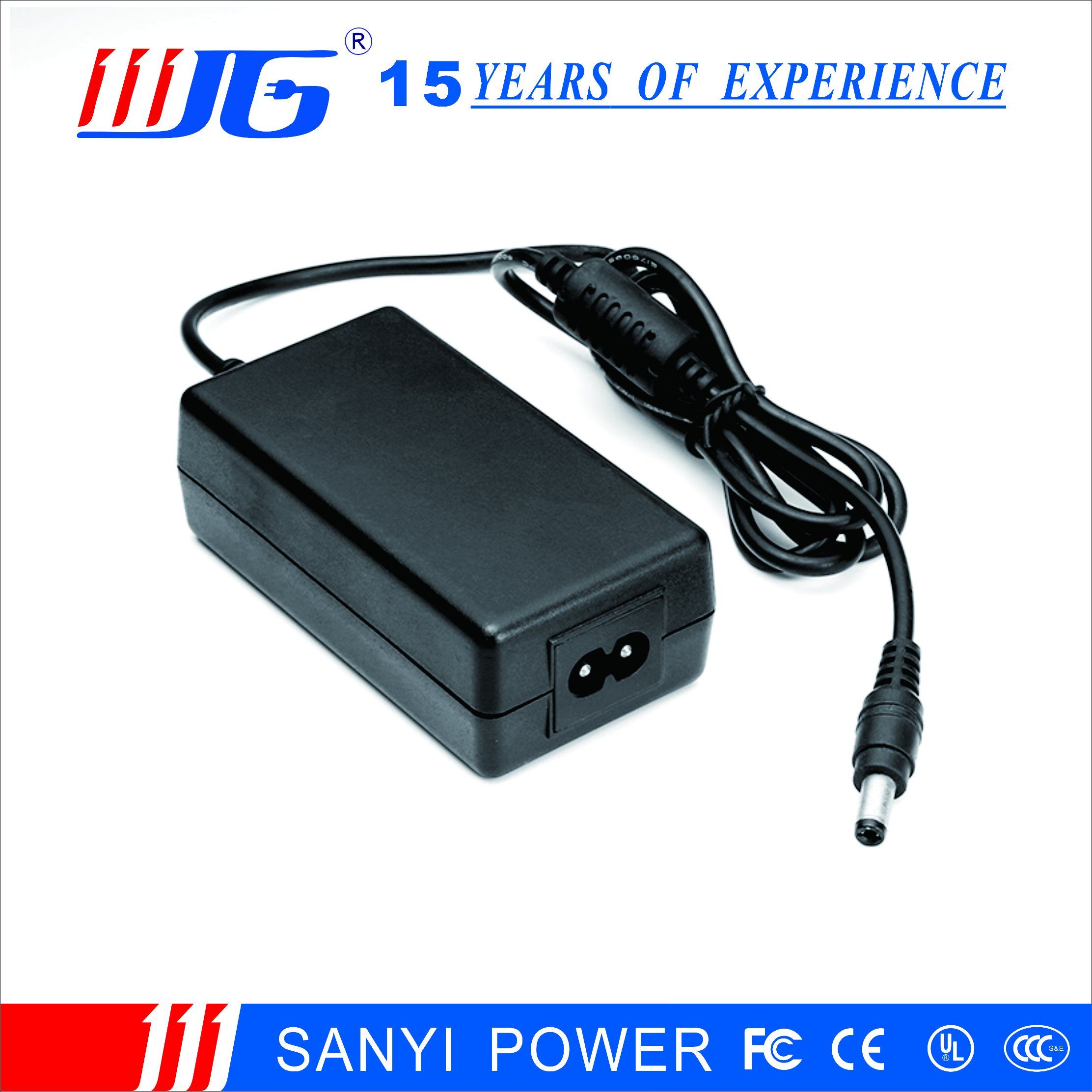

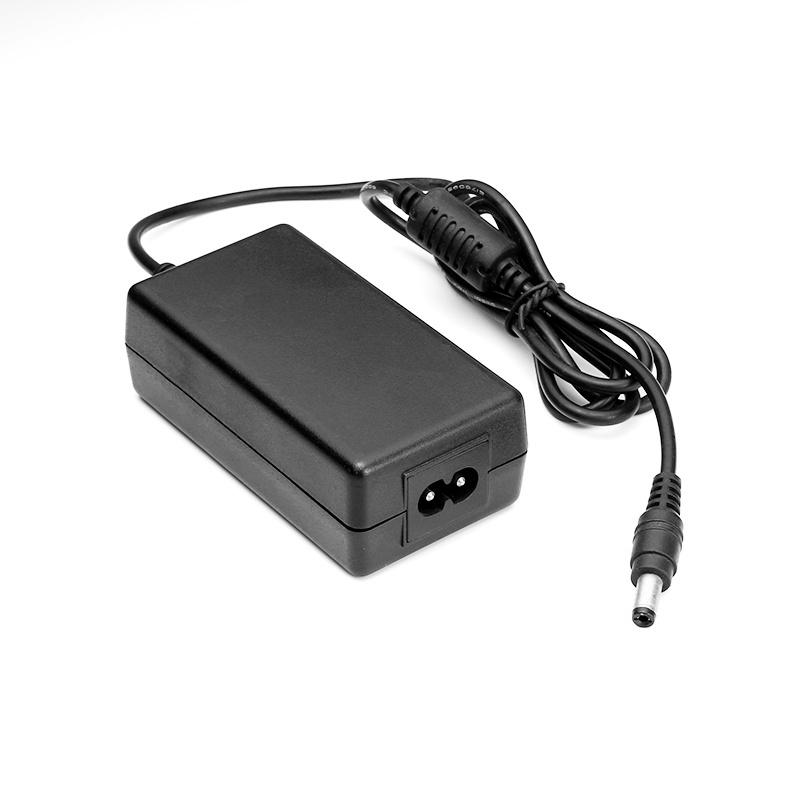

12V/3A/6A Power Adapter with 2pin Connector

12V/3A/6A Power Adapter with 2pin Connector
Price: US $ 4-5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal

12V Power Supply,36W power supply,Switching Power supply
1.FEATURES

input voltage: AC 100-240V 50/60HZ

range voltage: AC 90-264V 47/63HZ

output power: 36W

output voltage: 12V DC 3A

over voltage protection; over current protection; short circuit protection

load regulation: ±5%

Efficiency: 77% minimum

No load consumption: <0.5W

operating temperature: 0ºC~40ºC

storage temperature: -20ºC~85ºC

opera ting relative humidity:5~95%RH

Isolation (Hi-Pot)-1500VAC, 1 minute, L1&L2/FG, 10mA -3000VAC, 1 minute,

Insulation resistance: DC 500V 100MΩ

Overall dimension: 116*50*30MM

Application: LED light, security system, LCD monitor,network device, portable power tool etc.
2.Model:

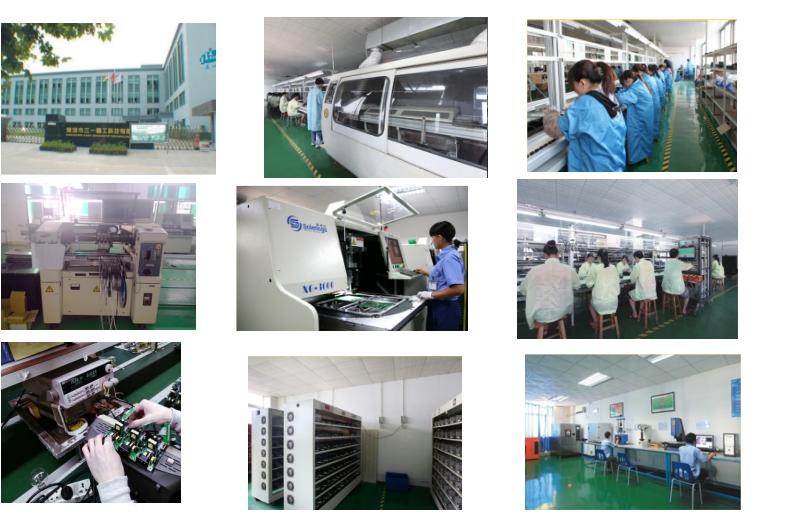

3.Factory Profiles



4.Certificate

5.Contact
SHENZHEN SANYI TECHNOLOGY CO.,LTD
Web: www.szsanyi.com


Attn:Rubychen
Phone:+86 15207552952
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community,  LongGang District,Shenzhen 518172,China

Prod Model: AD-S1230AA
Usage: Display
Output Type: AC or DC
Connection: Desktop
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.

We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.

We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
