12V 4A Desktop Type Power Adapter

Name: 12V 4A Desktop Type Power Adapter
Brand: all-electronics-online.com
SKU: 831772075
Availability: InStock
Rating: 4.5 (116 reviews)

Price:	US $ 4-5.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IC-1204000
Usage:	CCTV Camera, Audio,STB
Connection:	Desktop
Output Type:	AC-DC
Certification:	Ce,FCC, SAA,Rcm

Product Description

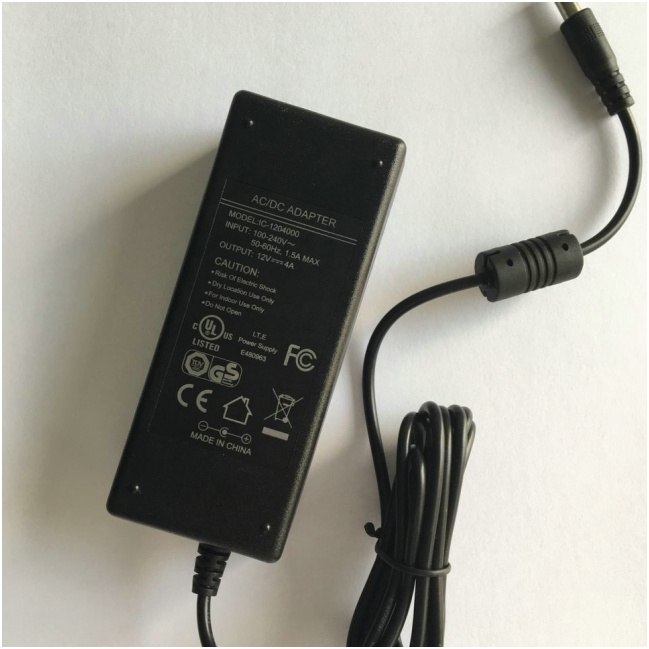

12V 4A 48W desktop type power supply
DC cord: 1.2m / 1.5m / 1.8m
DC jack: ---USB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin
AC cable: ---US UK AU EU KR IN etc.
AC Connector:--- C8,C13,C14

Operating Temperature:----0ºC-+40ºC
Input voltage range:----100-240V
Input current:-----1.5AMax
Input frequency range:----47-63Hz
Output voltage range:----12V
Output V current range:---4A
Rated Output Power:---48W Max
Short circuit protection----Yes
Over current Protection------Yes
Over Voltage Protection------Yes
Unload standly power:-0.3W Min
Efficiency:-----------78% -- 87%Max
Erp V CEC RoHS
Ripple and noise:-----50mVp-p Max
In-rush Current:-------60AMax
AC leakage Current:------0.25mA Max
DIELECTRIC STRENGTH Hi-Pot :-3000Vac/5mA/5s.
Insulation resistance:-----10MΩMin at 500V DC
Surge:-------------2KV
SAFETY STANDARD:---IEC60065,IEC60950,UL60065
EMC STANDARD:----EN55020/EN55024
Package: PE bag or PE bag+inner box ,or customized

Shenzhen Innovator Electronic Limited was found in 2015 with a mission of manufacturing and marketing high quality power supply/adapter to the customers worldwide, with special emphasis on the North American and European market.

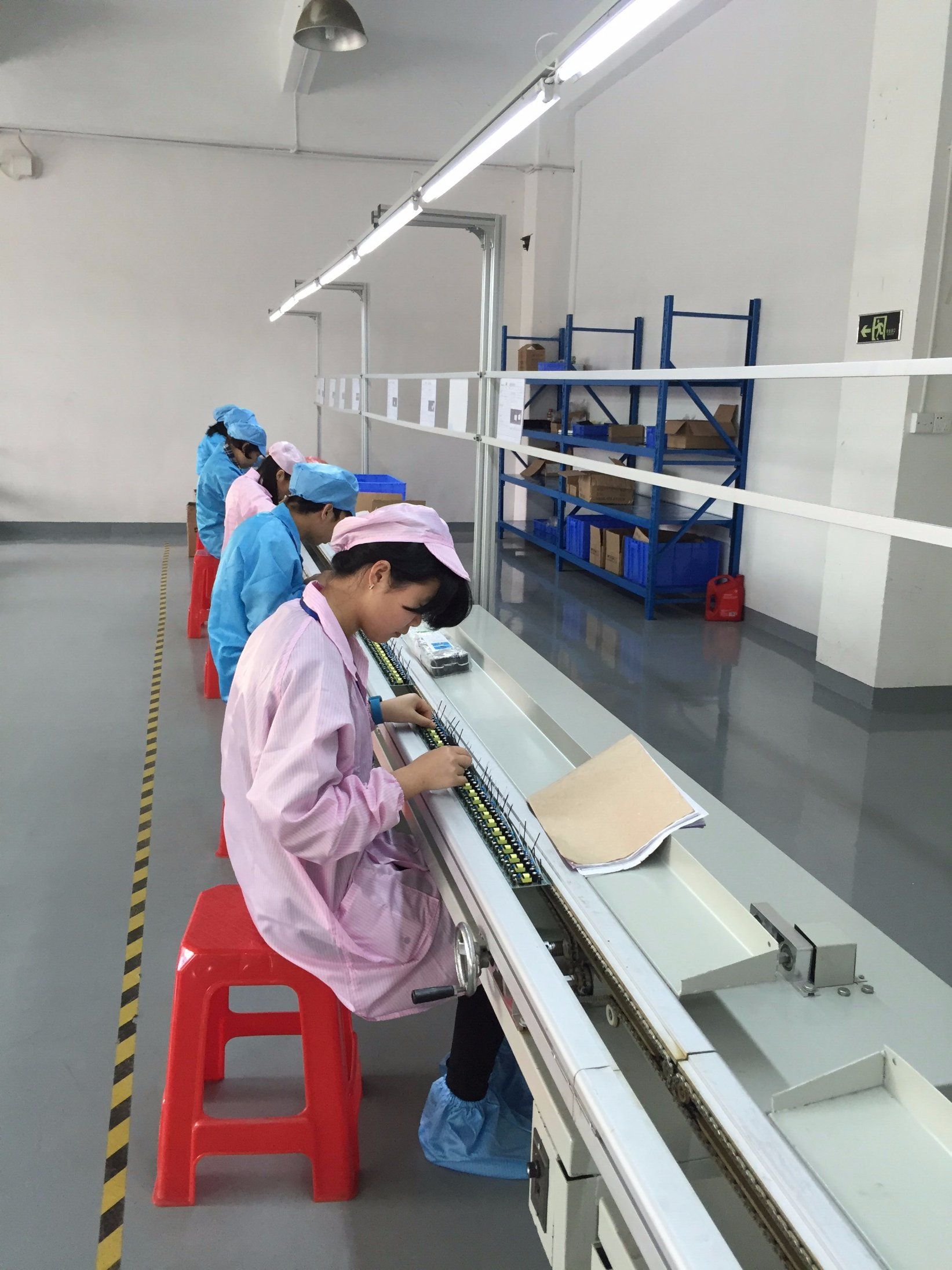

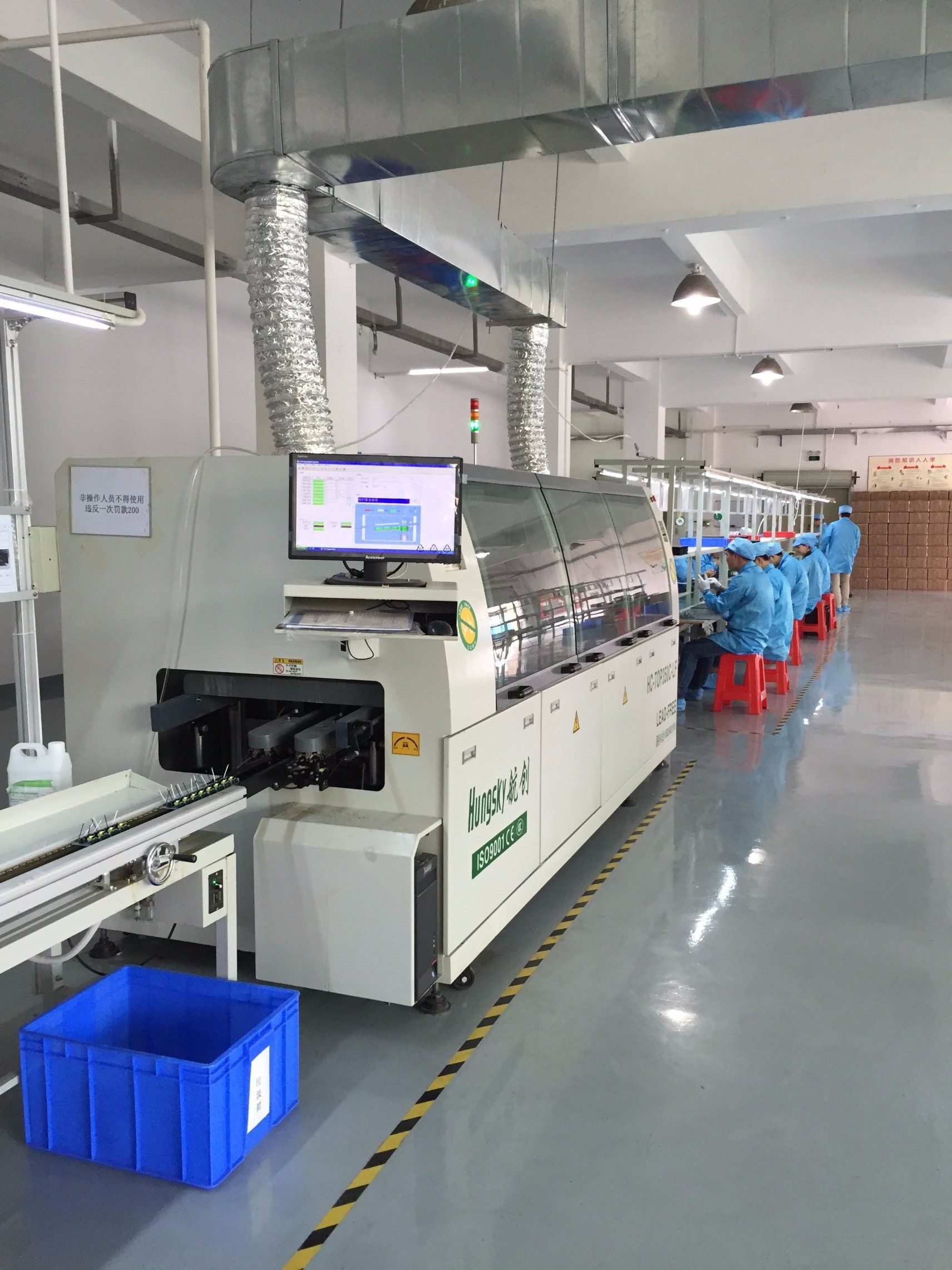

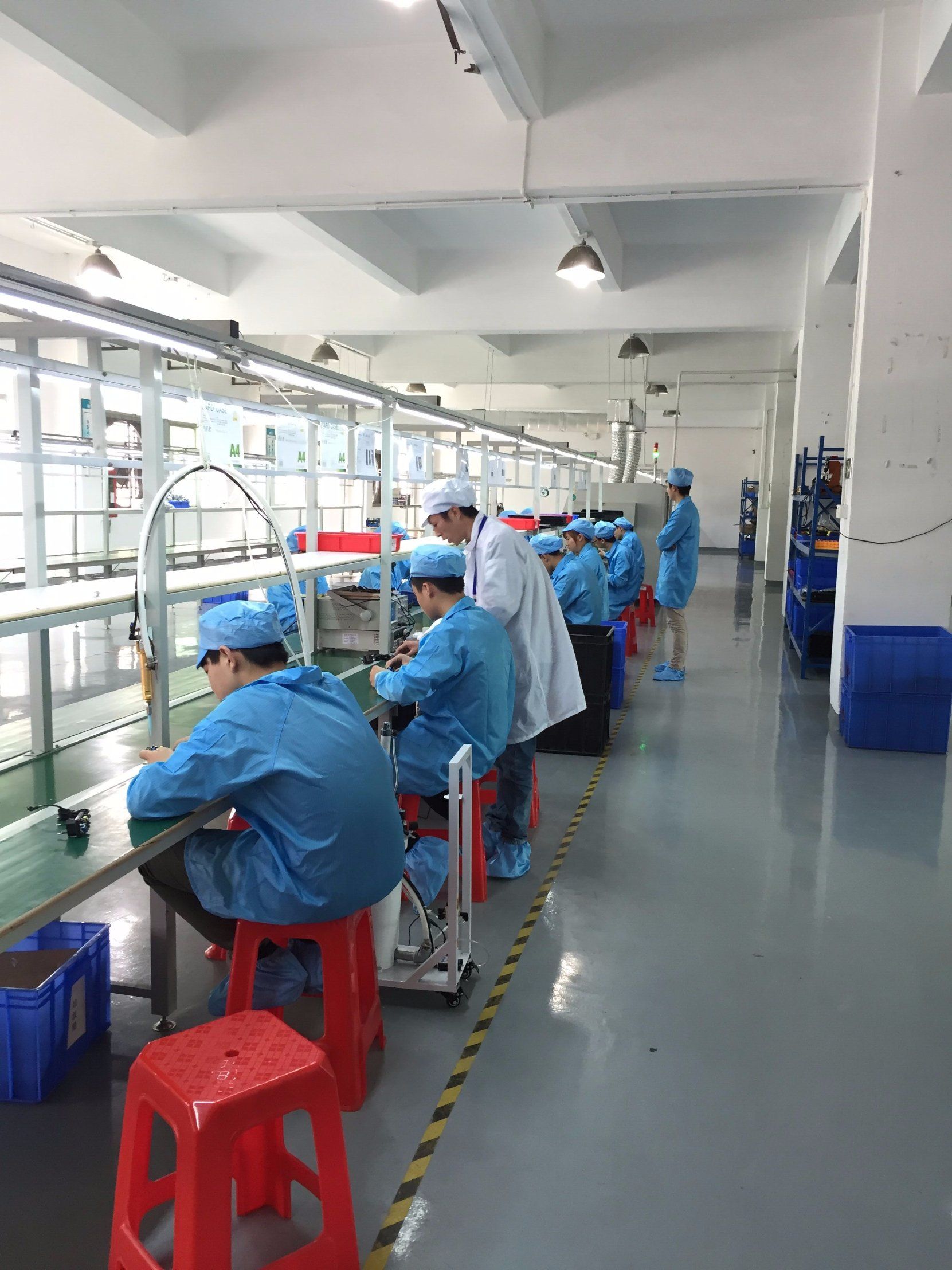

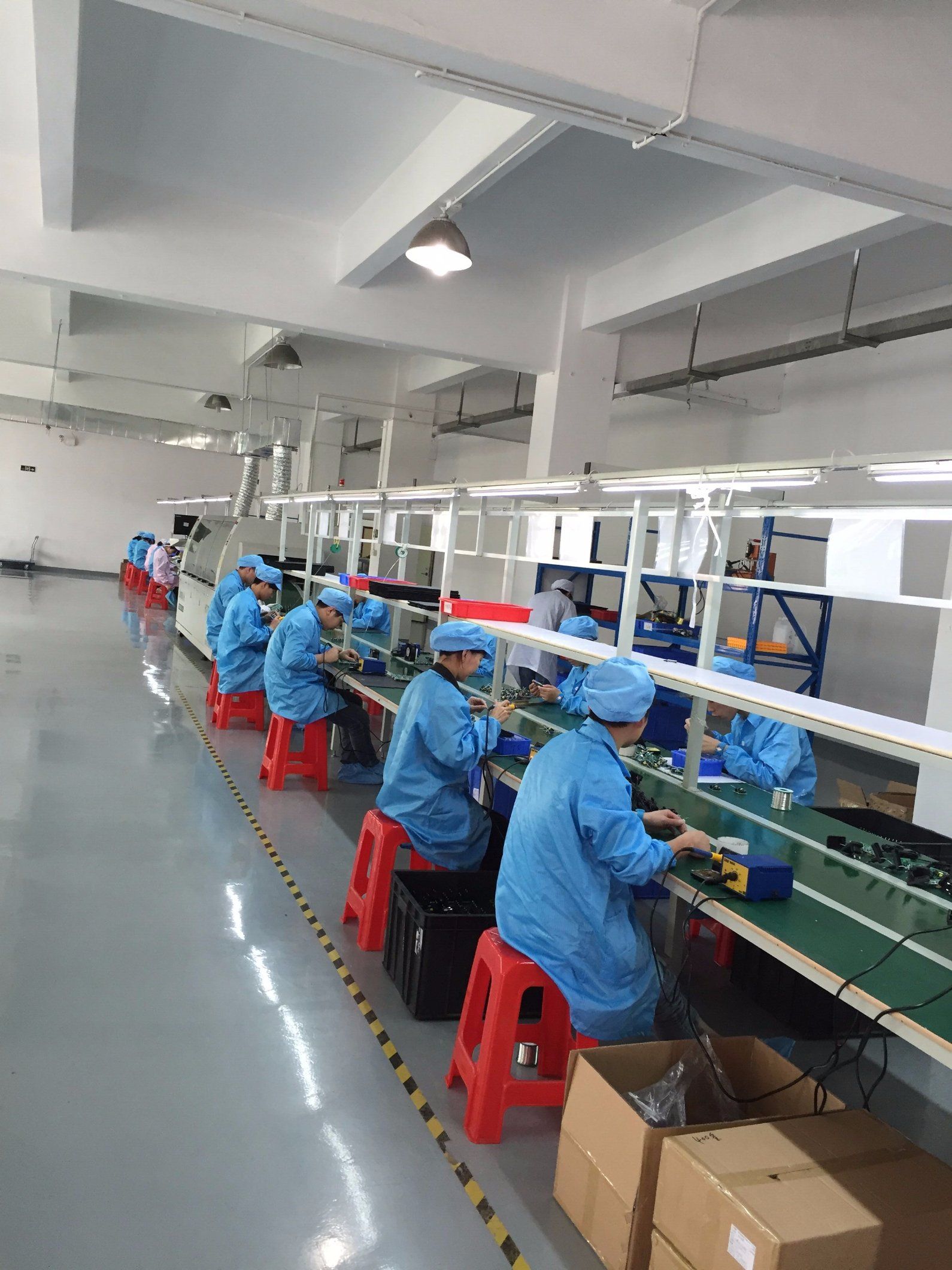

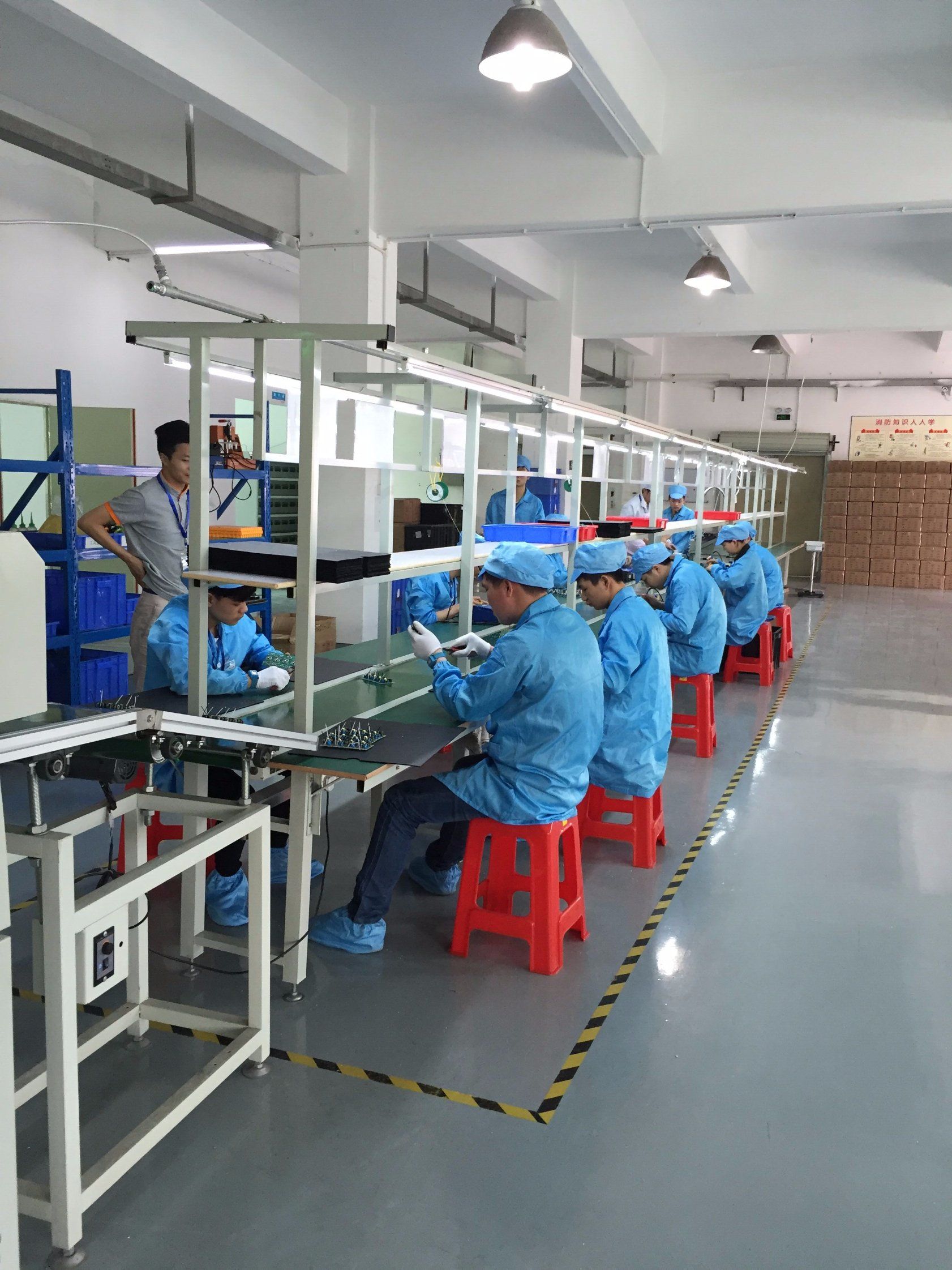

We are professional in producing power supply/adapter for LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot. The products ranges from 5W to 120W. We now supply more than 100 models products cover in the market. We are UL certified factory, fully equipped with the more modern manufacturing line, aging room, functions testing center, which cover the whole key manufacturing processes from PCB design, plug-in components, assembling, aging, to functions testing.

We have been committed to the improvement and innovation of technology. Through the analysis of the market dynamics and the needs of customers, we strive to provide high quality and excellent service. We will persist in the principles mentioned above, and take steps to be an international and high-tech modern enterprise
