| Prod Model: |
6FM40G (12V40AH) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black |
| Size: |
L196*W166*H176(Th176)mm |
| Terminal: |
Nb/B/F9/F7/F21 |
| Weight: |
13.5kg |
| Packing Qty: |
1PCS/CTN |
| Lead-Time: |
20-25 Days for One Container |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Tools |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

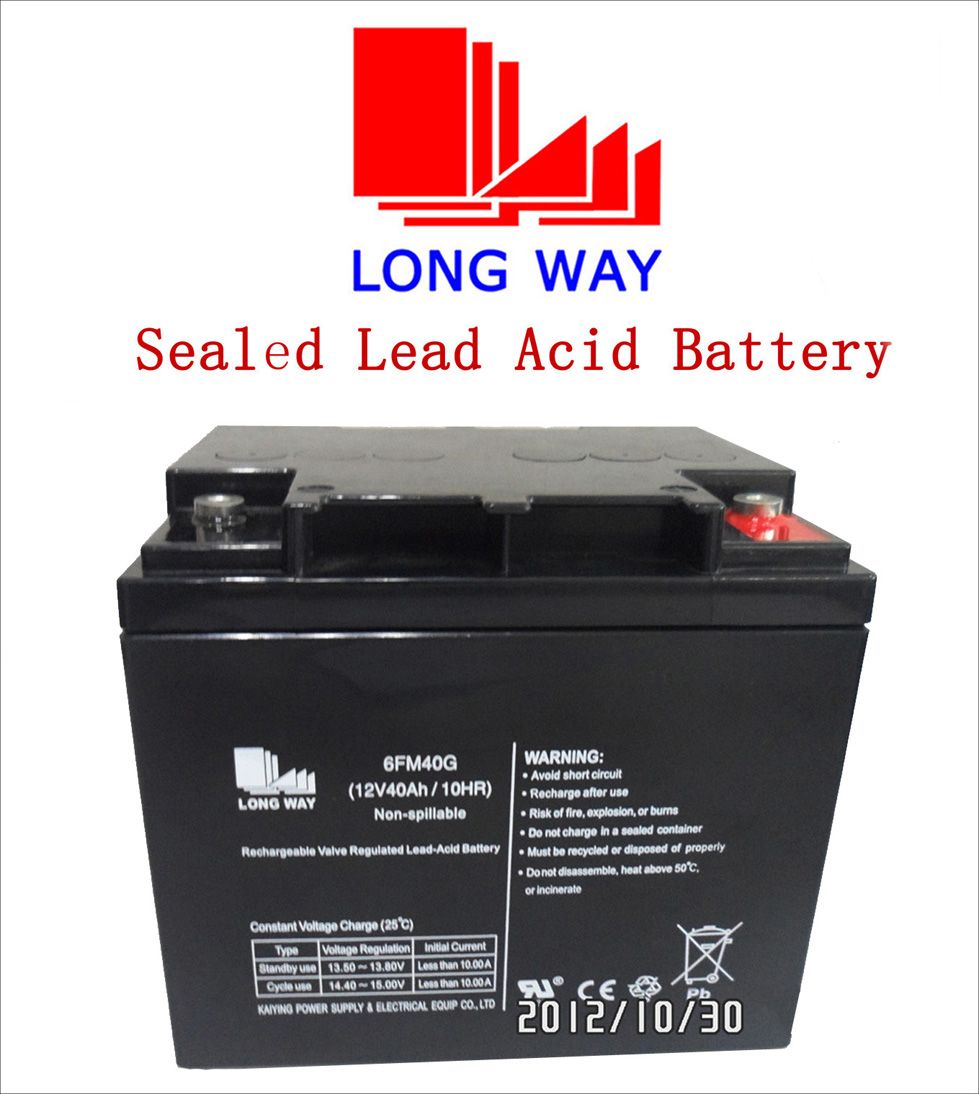

LONGWAY 12v40ah Electric Tools UPS SOLAR Rechargeable Sealed Lead Acid Battery
LONGWAY standard series valve regulated lead acid batteries are designed with AGM(Absorbent Glass Mat) technology and for general application purpose, such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards,
such as IEC60896-21/22, BS6290-4, Eurobat Guide. The battery container and cover are available both in VO class flame retardant ABS or HBO ABS plastics.
Specifications:
| Cells per Unit | 6 |
| Normal Voltage | 12V |
| Capacity | 40Ah@10Hr-rate to 1.80V per cell@25ºC |
| Weight | Approx.(13.5±3%) kg (29.76lbs) |
| Maximum Discharge Current | 400A(5sec) |
| Internal Resistance | Approx. 8mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -15ºC~50ºC
Charge: -15ºC~40ºC
Storage: -15ºC~40ºC |
Nominal Operating
Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.7~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 12A |
| Equalization and Cycle Service | 14.4V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | Terminal F7/F21 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
Applications
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines;
²
General Features
² Stable quality&high reliability ² Sealed construction
² Environmentally friendly ² Maintenance-free operation
² Low pressure venting system ² Heavy duty grid
² Low self discharge ² UL component recognition(MH46789)
