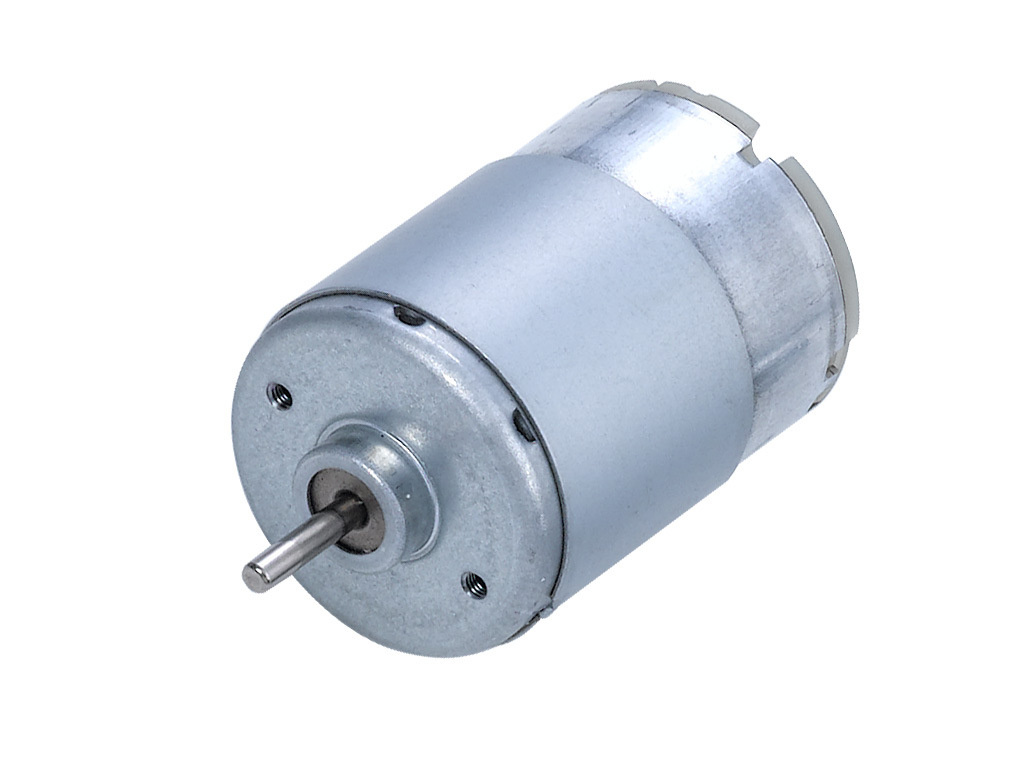

12V High Rpm Electric DC Suction Motor for Vacuum Cleaner

Name: 12V High Rpm Electric DC Suction Motor for Vacuum Cleaner
Brand: all-electronics-online.com
SKU: 839995175
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 2/Piece
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

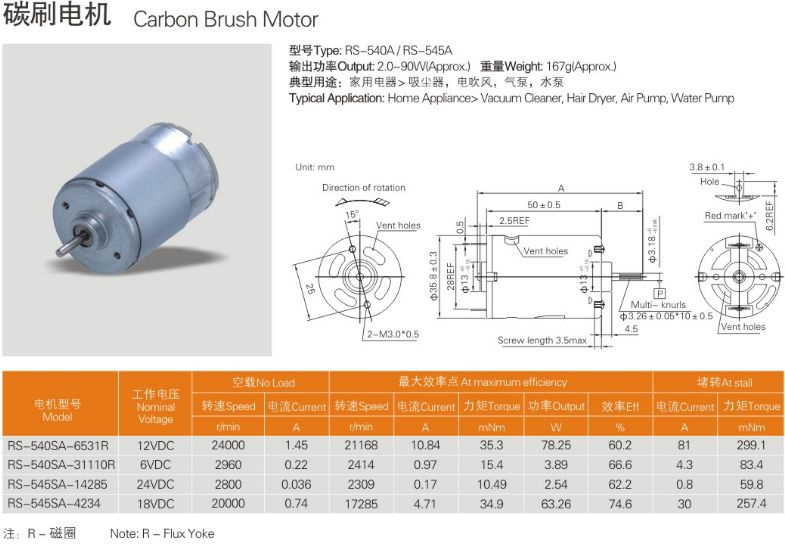

Motor Performance

Model No.	RS-540SA-3777D
Rated voltage	12VDC
No Load	Speed(r/min)	9200
No Load	Current(A)	0.31
At Max Efficiency	Speed(r/min)	3044
	Current(A)	2.16
	Torque(mNm)	20.95
	Output(W)	17.65
	Eff.(%)	68.2
At stall	Current(A)	15
At stall	Torque(mNm)	166.7

Design&Innoviation

2-pole stator	* Leadwires with connector / pins
	* EMI suppression components
* Ferrite permanent magnet	* PTC or thermostate protection
* 3, 5, 7, 8, 9, 12,16 slots armature	* Built-in AC/DC rectifier
* Silicon-steel lamination with epoxy coating	* Built-in cooling fan
* High-carbon steel shaft	* Multiple output shaft
* Cu-Ag alloy commutator	* diamond knurls, straight knurls, D-cut, stepped shaft
* Copper-graphite brushes	* Shaft-mounted gears, eccentric gears, belt pulleys
* Be-Cu leaf-brush commutating system	* Stainless steel (SS304, SS420) shaft
* SECD round / flat type housing	* Ball bearing
* SECD end cap / glassfiber reinforced PA6/6 end cap	* Cage-brush commutating system
* Cylinder / self-aligning Cu-Fe alloy sintered bushes	* Precious metal brush / commutator
* 155ºC (class F) magnet wire	* Hall encoder
	* Low-cogging torque design
	* 180ºCclass H), 200ºC (class C) magnet wire
	* -40ºC ~ 220ºC bearing lubricant
	* Neodymium magnets

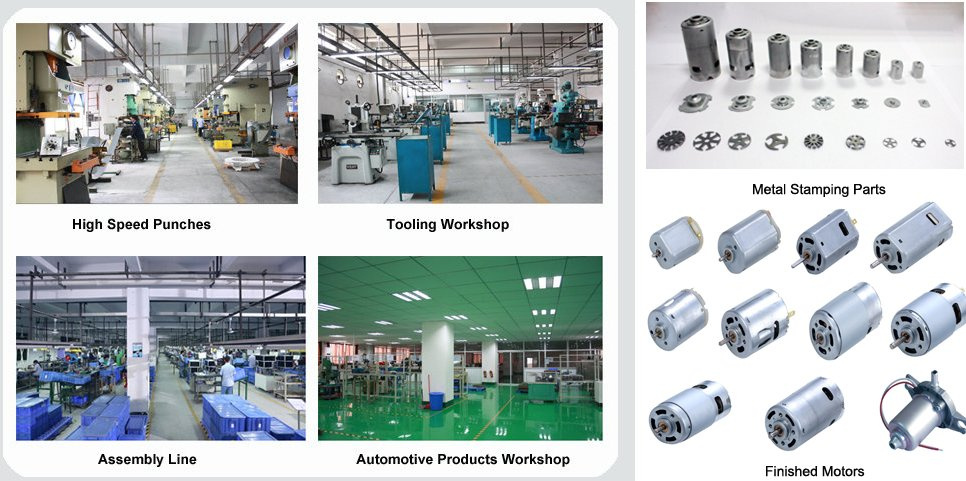

Factory Tour
Shenzhen Chengfang Electric Machine is the professional PMDC motor manufacturer.The company was established in 2003.
It occupies an area of 15,000 square meters with 700 employees.

Products range from Low Voltage DC motor to High Voltage DC motor with diameter of 20mm to 61mm. Input voltage ranges from
1.2VDC to 240VAC. The major applications including automotive, home appliance, power tool, office automation and electric model.

Workshop

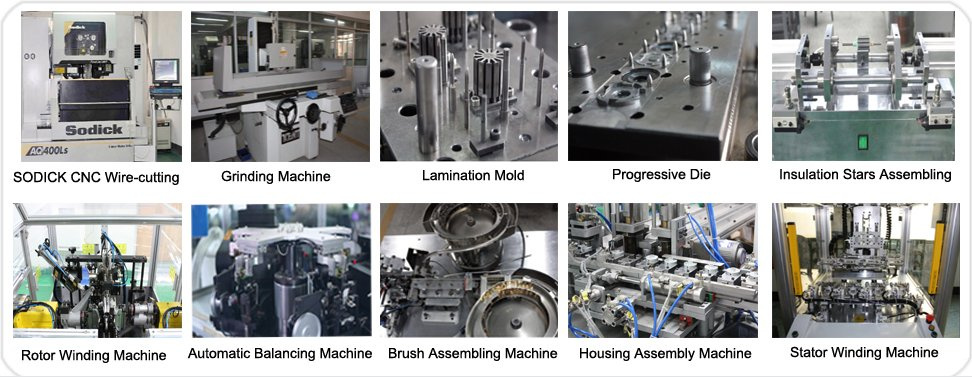

Equipement

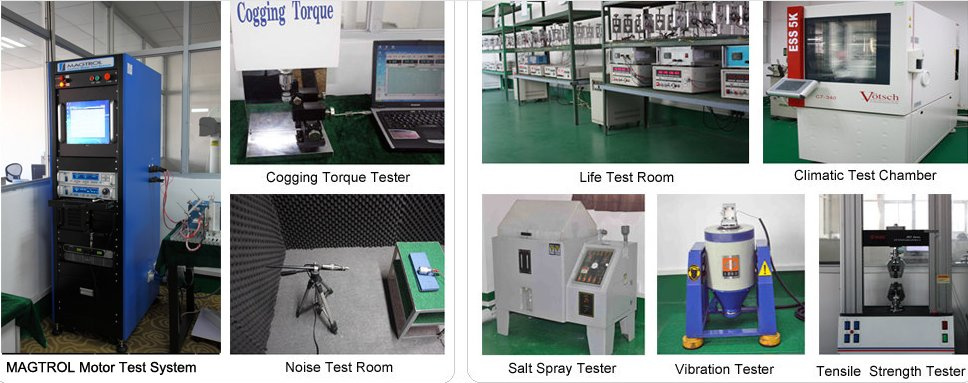

Performance&Type Test

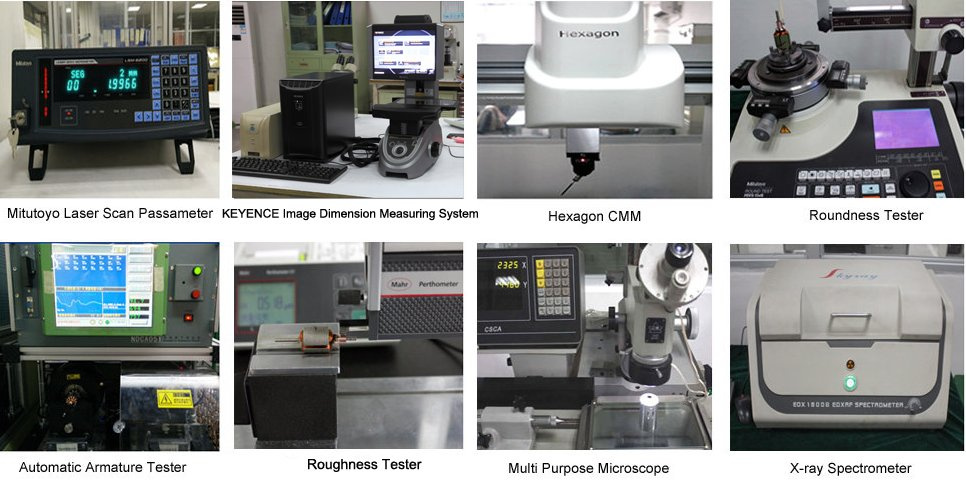

Quality Insepction

Certifications

Prod Model:	RS-540SA
Input Power:	200 Watts
Output Power:	150 Watts
Life Time:	More Than 150 Hours
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	Chengfang

Shenzhen Chengfang Electric Machine Co., Ltd. is an ISO/TS 16949 certified manufacturer of brush DC / High Voltage DC motors. Established in 2003, Chengfang makes DC motors ranging from Series 1 (dia. 20.4mm) to Series 9 (dia. 52mm).

Chengfang supplies our DC motors to automotive, home appliance, power tool, office equipment, fitness apparatus, and electric model industries.

Chengfang holds several patents in motor design. We are able to supply DC motors with low cogging design, built-in EMC components, built-in PTCs, built-in AC/DC rectifiers, hall encoders and neodymium magnet design.

Chengfang has a full range of testing equipment to evaluate motor performance in various aspects, including dynamic motor performance testing M/CS, static torque testers, roundness testers, roughness testers, vibration testing M/CS, and environment testing M/CS and spectrometers. Chengfang's motors are in compliance with UL, CE, RoHS and CCC regulations.

Chengfang holds all manufacturing processes in house, thus keeping quality under strict control and competitive cost. Chengfang provides comprehensive motor design to save every cent of our customers.

With fast response, short lead time, comprehensive design, good quality, and competitive price, Chengfang is gaining a higher and higher reputation in the industry.
