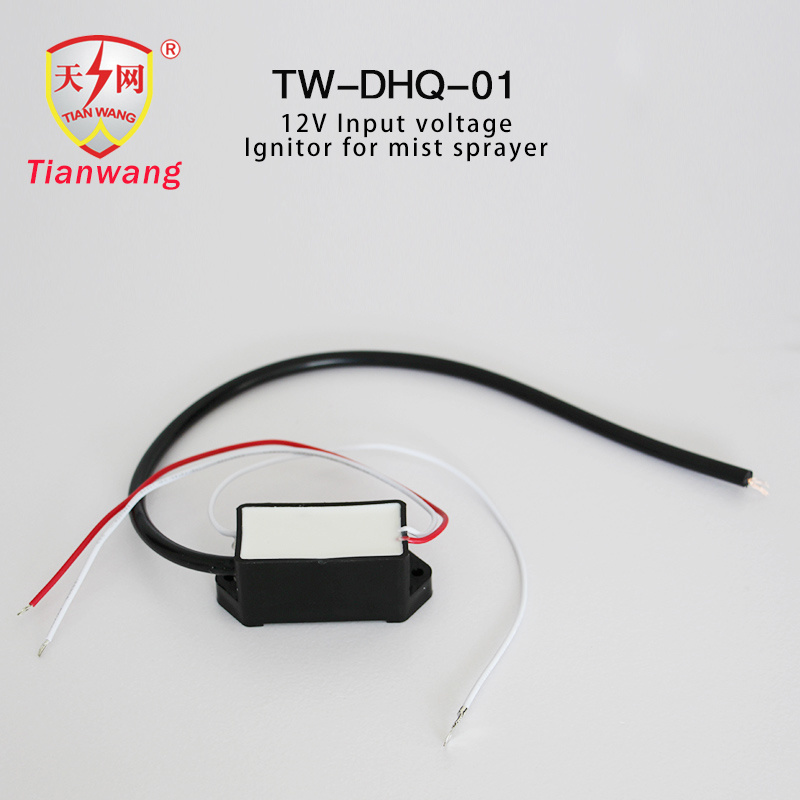

12V Ignitor Module for Fireworks Salute
Price: |
US $ 4.5-5.5/Piece |
Min Order: |
5000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
TW-DHQ-01 |
Size: |
77 X 30 X 30cm |
Weight: |
115g |
Current: |
1000mA |
Input Voltage: |
3.6/ 4.8/ 6/ 12V |
Output Voltage: |
3-11kvdc |
Igniting Distance: |
10mm |
Diameter Of Input Wire: |
2 mm |
Diameter Of Output Wire: |
6.8 mm |
Length Of Input: |
180 mm |
Length Of Ourput: |
240-400 mm |
Application: |
Electronic |
Coil: |
Shell-type Transformer |
Brand: |
Tw |
Product Description
TW Pulse/DC high voltage IgnitorI. Product scope:- Farming and Forestry Machine
- Mist and Fog Machine
- Gas Burner, Automatic Electronic Gas Burner
- Natural Gas ,Gas Cooker,cooking Stove
- Electrostatic Adsorption
- Wedding Industry,Electron Gun Salute
- Insect killer ,Mosquito swatter
- Stun Gun,Security Equipment
- Ozone Module
- Portable Ozone Generator
- Industrial Ozone Generator
- Air Dryer for Ozone Generator
- Household Air Purifier
- We can design and manufacture transformers regarding to customer request. Tell us the specification of ignitor you want,we will do sample for you to test.

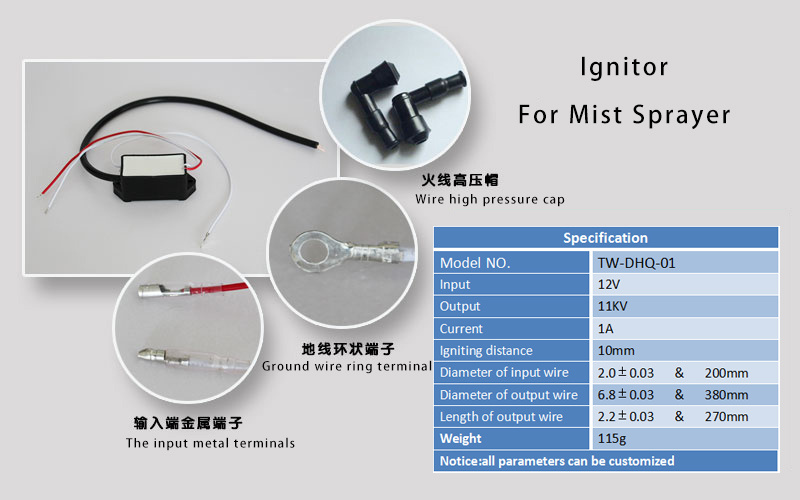

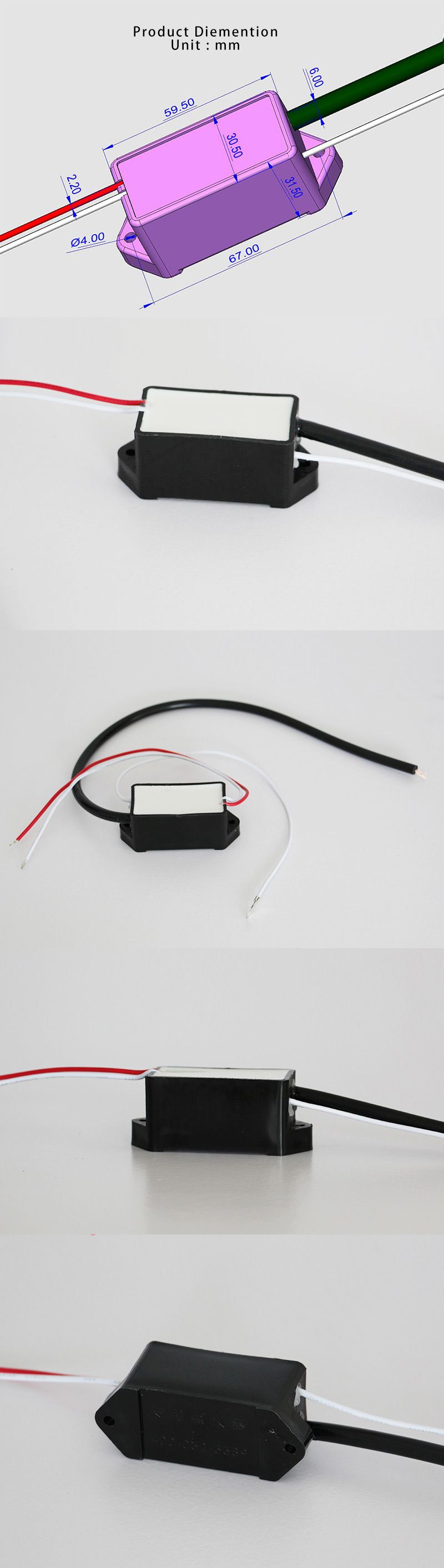

II. Specification Size(mm): 77 X 30 X 30 Weight(g): 115 Current(MA): 1000 Input voltage(VDC): 3.6, 4.8, 6, 12 Output voltage(KVDC): 3~11 Igniting distance(mm): 10 Diameter of the input wire(mm): 2± 0.03 Diameter of the ouput wire(mm): 6.8± 0.03 Length of the output(mm): Ground wire 240, firing line 400 Length of the input(mm): 180 |
III. PrincipleDC inverter transformer through a small boost to around 10000V AC high voltage.DC power supply: 2.4V-24VOutput voltage: 2000V-12000VIV.Our Service:1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Protection of your sales area, ideas of design and all your private information

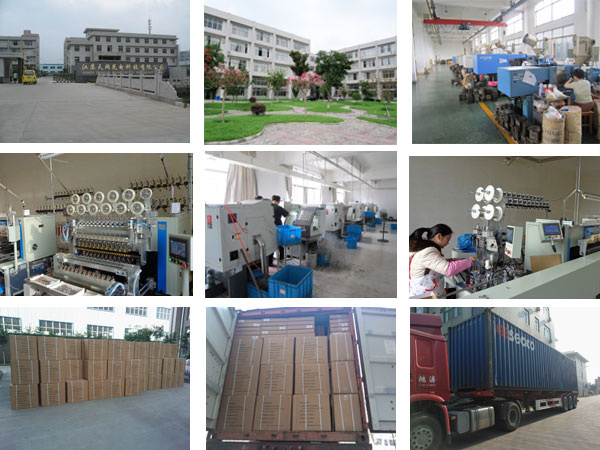

5.The ability of monthly develop new product can help you enlarge your market.V.Professional factory of high voltage generators:High-voltage generator for security equipmentWe have been engaged into the research and development of various high voltage generators for security apparatus since foundation, and after over ten years' effort, now we have more than 100 types of product which are extensively used in electric batons, anti-theft doors, anti-theft cases, automobile anti-theft seat mats, bank anti-theft and warning systems, etc home and abroad. After many years' practice, our products have won lots of loyal customers because high voltage output, stable working performance and low damage rate, etc.High-voltage generator for eco-friendly equipmentSeries TWHB high voltage generators developed by our plant to satisfy the market demand are respectively applicable for oil fume purification, air purification and water purification. The working principle is that alternating current 110V or 220V is transformed into high voltage alternating current of 15KV above via the high voltage generator by the unique electronic process and electric field polar plates. A high voltage static electric field is generated by the negative and positive plates and thus corona of oil fume flowing through the field happens. Oil fume particles charged are absorbed on the polar plates by the strong electric field for further removing. The energy output of this series of product is quite large, and two groups of high voltages can be delivered at the same time. The product is integrated with stable performance, high reliability and dual protection from overloading and overheating. The technical content has reached the internationally advanced level, and products are exported to Taiwan, Japan and Europe. VI.Why choose TIANWANG: 1.Professional manufacturer2.High quality and reasonable price3.OEM&ODM design accepted4.100% testing in each testing process High quality and best services.5.We have CE,RoHS and REACH certification. VII.Note:1.MOQ:1,000 PCS2.Delivery time:7-15 days, or as per customer's quantity. 3.Payment terms: T/T,Western union,bank transfer. 4.We will feel appreciated if you can provide the parameters of the product or the photo of the item. 5.All products of the size,electrical performance can be designed according to customer requirements in R&D. 6.Samples is not for free, with the fee of freight must be paid by recipient 7. Package: As per customer's requirements Good quality, reasonable price, high output, Quick delivery and satisfying service are guaranteed. We sincerely hope to establish longtime and friendly business relationship with you!================================================================================================== company address:NO.5,HuaXiang Road ,Development Zone,Jingjiang City, Jiangsu Province,China.
Jiangsu Tianwang Solar Technology Co., Ltd., founded in 1990, produces high-voltage electric products, such as stun guns, electric mosquito swatters, high-voltage generators(ignitor). We have a talented R&D team, capable workers on line and brilliant sales team.
During the past 20 years, we have been persisting in the spirit of "Fine Quality, Science and Technology, Unity, Cooperation". We have well-trained staff working in our company. They are the key of guaranteeing good product quality. We have founded an integrated system of material purchase, reasonable electric circuit arrangement, advanced manufacturing techniques, perfect detection artifice, rigorous quality track and feedback as well as excellent after-sales service. All of these guarantee the realization of "Quality First" and "No Faulted Products". Thereby, our company has won trust as well as support from customers at home and abroad.
We will persist in "Faithful Cooperation" and provide more new products. We would like to try our best to offer excellent services too. We are longing for your cooperation.
