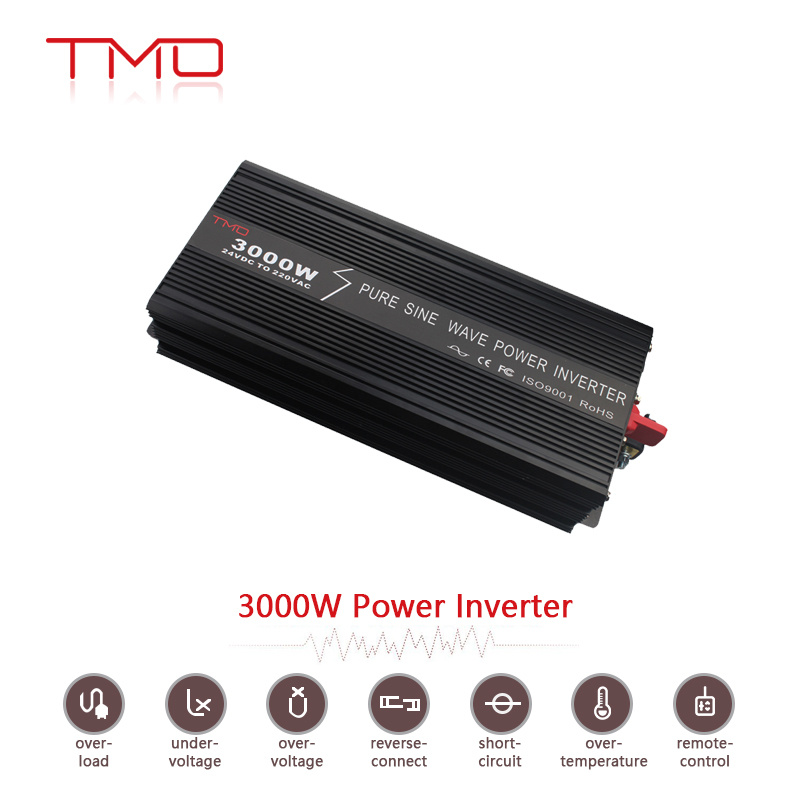

12V to 110V 220V Pure Sine Wave Solar Power Inverter 3000W
| Price: |
US $ 150-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
12V to 110V 220V Pure Sine Wave Solar Power Inverter 3000W
Technology Parameters
| Model | TMO-P3000 | TMO-P2000 | TMO-P1000 |
| AC Input | Direct Voltage | 24VDC | 24VDC | 24VDC |
| Voltage Range | 20-31VDC | 20-31VDC | 20-31VDC |
| No-load Current | <0.8 | <0.8 | <0.8 |
| Efficiency | >90% | >92% | >92% |
| DC Link | Pure copper terminal | Pure copper terminal | Pure copper terminal |
| AC Link | Customized socket | Customized socket | Customized socket |
| AC Output | Output Voltage | 220V | 220V | 220V |
| Rated Power | 3000W | 2000W | 1000W |
| Peak Power | 6000W | 4000W | 2000W |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Output Frenquency | 50Hz 60Hz | 50Hz 60Hz | 50Hz 60Hz |
| Waveform Distortion | ≤3% | ≤3% | ≤3% |
| Protection | Low Voltage Shut Down | 20.5VDC±1V | 20.5VDC±1V | 20.5VDC±1V / |
| Short Circuit | output shut down | output shut down | output shut down |
| Over Load | output shut down | output shut down | output shut down |
| Over Voltage | 31VDC±1V | 31VDC±1V | 31VDC±1V |
| Over Heating | output shut down | output shut down | output shut down |
| Environmental | Working Temperature | -10ºC------+50ºC | -10ºC------+50ºC | -10ºC------+50ºC |
| Working Humidity | ≤90%RH | ≤90%RH | ≤90%RH |
| Storage Temperature | -30ºC------+70ºC | -30ºC------+70ºC | -30ºC------+70ºC |
| Package | Dimension(mm) | 420*165*85 | 340*165*85 | 340*165*85 |
| Packing(mm) | 500*240*160 | 420*240*160 | 420*240*160 |
| Net./gross weight(Kgs) | 4.9/5.5 | 3.5/3.9 | 2.7/3.1 |
| Others | Strating Method | Soft Starting | Soft Starting | Soft Starting |
| Cooling Method | Intelligent Fan Cooling | Intelligent Fan Cooling | Intelligent Fan Cooling |
| Output Type | Dual | Dual | Dual |
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. |

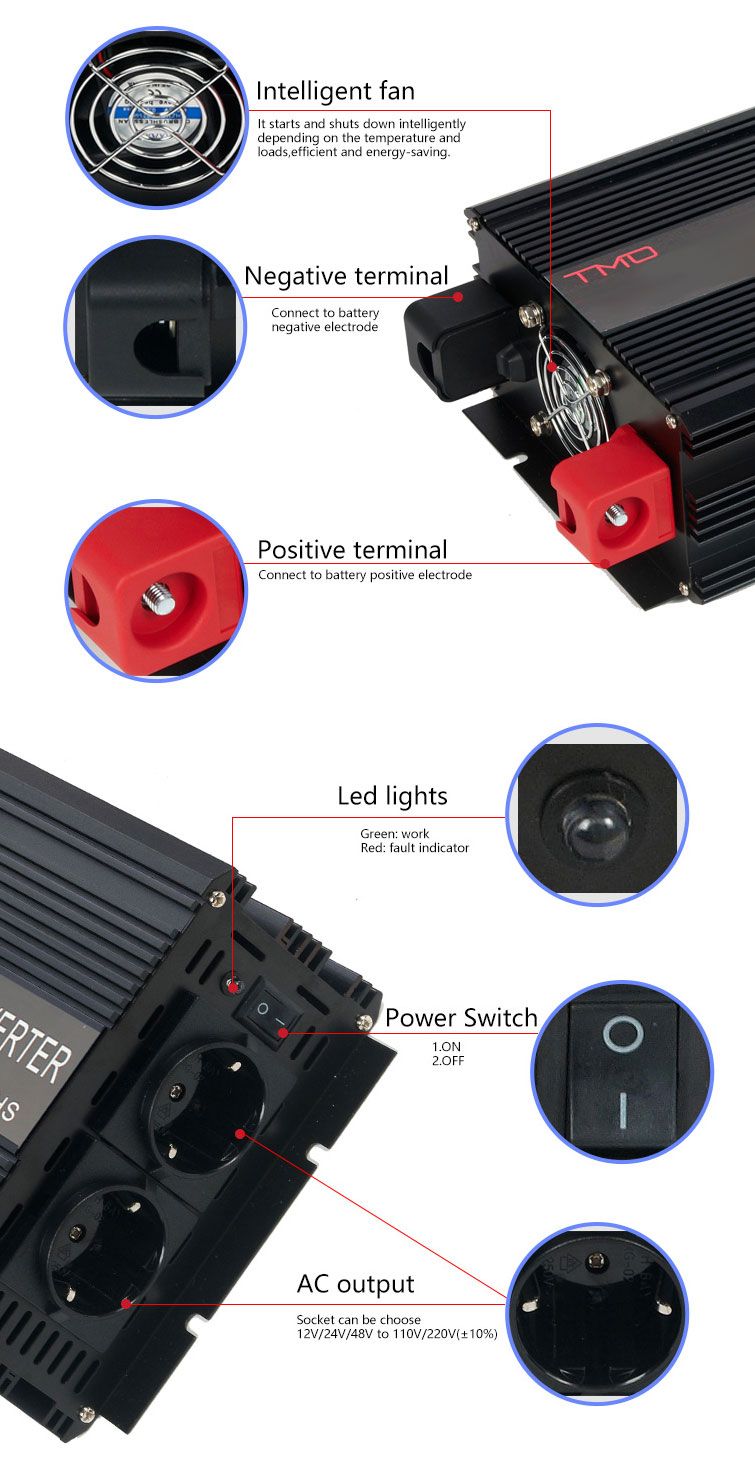

Product Features
Customer Service
OEM Services
1.Logo:Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label:Please offer us your own model numbers.
3. Manual:Please offer us the finished manual file that can be printed directly.
4. Packing Box:We will offer you the demension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.
Lead Time
1.Sample orders will be delivered from our factory within 7 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Big orders will be delivered from our factory within 15-25 working days at most.
Payment Terms
1. T/T ,Western Union,Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Shipment
1.By EMS, DHL, FedEx, TNT, UPS or other express.
2.By our forwarding agent (by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
After-sale service
1.All products have been checked and packaged in good condition before dispatch.
2.Warranty : Two years
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.
| Prod Model: |
TMO-P3000 |
| Product Name: |
Inverter 12V 110V/220V |
| Package Dimension: |
500*240*160mm |
| Efficiency: |
92% |
| Frequency: |
50Hz or 60Hz |
| Key Word: |
Solar Power Inverter with Charger |
| Protection: |
Multiple Protecting |
| Warranty: |
24 Months |
| Remote Control: |
Optional |
| Built-in Charger: |
Optional |
| LED Display: |
Optional |
Wuhan TMO Import & Export Co., Ltd is a high-tech enterprise integrating the research, development, production, sales and technical services, which is mainly focusing on off-grid power solutions and new energy solutions. Our factory established in 2012, located in Wenzhou, the largest manufacturing base of low voltage electric equipment in China. Our company strictly comply with ISO9001 quality standard for production, strengthen production and quality control, implementation of comprehensive information management and gradually move towards high-end applications.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
