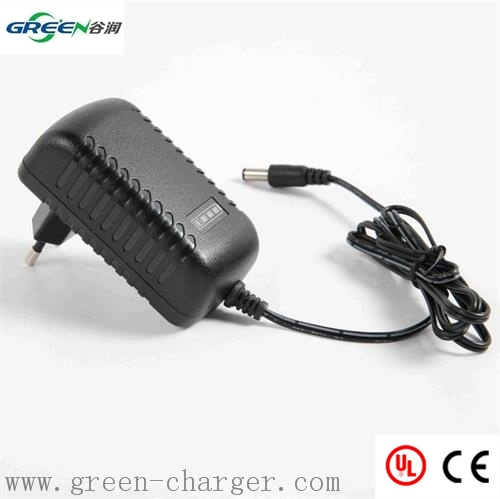

12V1.5A Trickle Lead Acid Battery Charger

Name: 12V1.5A Trickle Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 772487185
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 4.5-5.5/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

P2012-A12 Trickle Battery Charger for 12V Lead Acid Battery

Specification
Input: 100~240V
Output: 13.8V 1.5A
Charge Process: CC+CVH+CVL(3 Stages mode)
Charger Indicator: Bi-color LED, RED/GREEN
Output Protections: Short-circuit, Reverse Polarity
Safety Approval: CE cUL PSE
Size: 83 x 43 x30mm
Suit for Battery: 12 Volt 2~8Ah Lead-Acid Battery Charger

Feature:

Programmed 3 auto stages (CC-Bulk-Float) charging process.

Designed for all kinds of 12V 2~12Ah lead-acid battery, such as SLA, AGM and Gel battery.

With bi-color LED indicator, easily know the charging process.

Protection mode for battery polarity reversed or the output connectors shorted.

UL, CE approval (EN60335-2-29 and UL1310)

Application: Car Battery, Motorcycle Battery, Automotive Battery, motorbike battery, etc.

Specification for P2012-A12

Input Voltage	100-240VAC, 50-60Hz
Input Current	0.2A rms
Back current drain	1.3mA
Bulk voltage Limited	P2012- A6	P2012-A12
	7.3V	14.5V
Bulk charge current	1A or 2A, defined when order	0.8A or 1.5A, defined when order
Floating voltage	6.8V	13.6V
Operate Temperature	-20ºC~40ºC
Cooling	Natural convection. Do not cover the charger.
Charge principle	Auto 3 stages: CC-CV(Bulk)--Floating
LED indicator	Green for full charged or idle, Red for charging
Battery type	All types of 12V lead-acid batteries. (SLA, Gel, AGM.)
Battery capacity	4~12Ah
Size	81 x 43 x 30mm
Output cable and plug	1.2 meter 2xAWG22#, UL2468 wire; plug type defined when order.
Input plug	US or VDE
Enclosure	ABS+PC Plastic housing
Weight	100g

Charger of Series P2012-AXX

Charger Models	Input	Output	Suit for Battery
P2012-A6	100~240V	6.9V 2.0A	6 Volt 2~12Ah
P2012-A12	100~240V	13.8V 1.5A	12 Volt 2~8Ah

Prod Model:	P2012-A12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Black
Customized:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
LED Dispaly:	Yes
Delivery Date:	2-3 Weeks
Type:	Lead-Acid Battery
Charger Type:	Lead-Acid Battery Charger
Charger Application:	Electric Toy/Tools/Light/Lamp, Military Station
Nominal Voltage:	13.8V
Compatible Battery Type:	12 Volt 2~8ah Lead-Acid Battery
Size:	83 X 43 X30mm
Socket Type:	UL,VDE,PSE,UK,SAA...

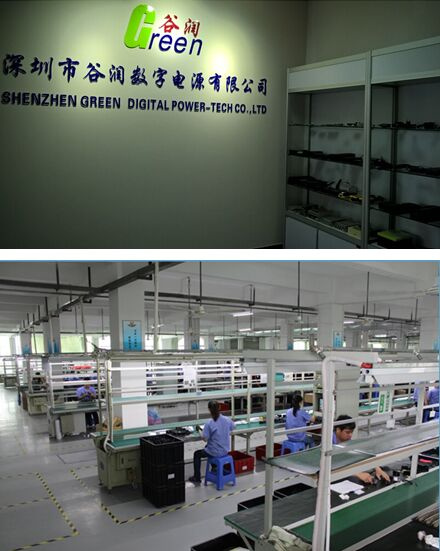

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
