Zhongshan Weipasi Power Co., Ltd. >> 12V180AH Front Access Terminal OPzV GEL Tubular plate Batter Solar Telecom Battery Communication Battery Power Cabinet Battery Telecommunication Solar Projects

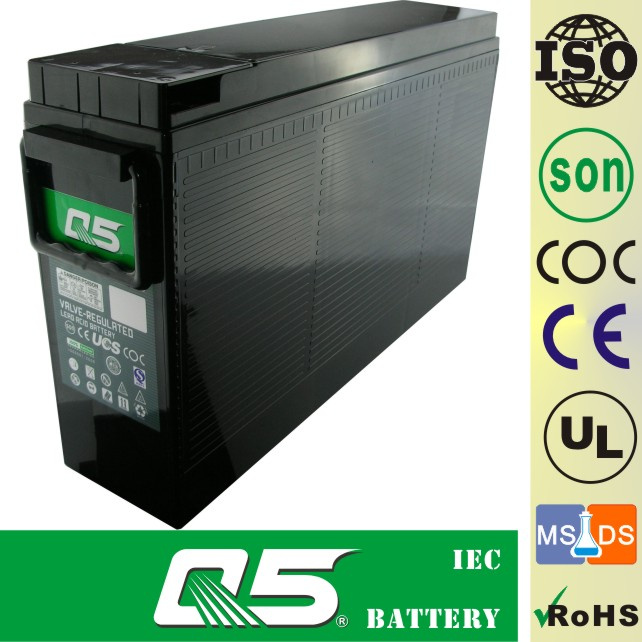

12V180AH Front Access Terminal OPzV GEL Tubular plate Batter Solar Telecom Battery Communication Battery Power Cabinet Battery Telecommunication Solar Projects
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
http://v.youku.com/v_show/id_XNzU2NjAwNjg0.html
http://v.youku.com/v_show/id_XOTM1NjI0NTg4.html
Q5/Weipasi Power Company keenly encourages environmental awareness; PLEASE follow guidelines for the recycling /disposal of lead.
1)Float service
2)Uninterruptible Power Supplies
3)Medical
4)Telecommunications
5)Switch Gear
6)Photovoltaic
7)Solar
8)Wind
9)Control Systems
10)Cellular Radio Stations
11)Cathodic Protection
12)Navigation Aids
13)Marine equipment
14)Electric Power Systems:example, telecommunication, large-scale UPS, nuclear power station, electric power substation and so on.
............................ect.................
Notice
Don't near the hot source and don't under the sunshine.
Don't charge in the sealed container.
No short circuit. It should be addition charge if you don't use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don't store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don't work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don't put the battery in the fire, or it will explode.
Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
Don't clean the battery by using the organic solution. (e.g. petrol)
2V/12V OPzV, OPzS SeriesModel | Voltage | Capacity | Dimension | Terminal | Internal Resistance |
10hr | Length | Width | Height | TotalHeight |
WPSOpzV2-200 | 2 | 200 | 103 | 206 | 355 | 390 | F10 | 0.6 |
WPSOpzV2-250 | 2 | 250 | 124 | 206 | 355 | 390 | F10 | 0.57 |
WPSOpzV2-300 | 2 | 300 | 145 | 206 | 355 | 390 | F10 | 0.55 |
WPSOpzV2-350 | 2 | 350 | 124 | 206 | 471 | 506 | F10 | 0.42 |
WPSOpzV2-420 | 2 | 420 | 145 | 206 | 471 | 506 | F10 | 0.38 |
WPSOpzV2-490 | 2 | 490 | 166 | 206 | 471 | 506 | F10 | 0.35 |
WPSOpzV2-600 | 2 | 600 | 145 | 206 | 646 | 681 | F10 | 0.33 |
WPSOpzV2-770 | 2 | 770 | 210 | 254 | 471 | 506 | F10 | 0.31 |
WPSOpzV2-800 | 2 | 800 | 191 | 210 | 646 | 681 | F10 | 0.3 |
WPSOPzV2-1000 | 2 | 1000 | 233 | 210 | 646 | 681 | F10 | 0.27 |
WPSOpzV2-1200 | 2 | 1200 | 275 | 210 | 646 | 681 | F10 | 0.25 |
WPSOpzV2-1500 | 2 | 1500 | 275 | 210 | 796 | 831 | F10 | 0.23 |
WPSOpzV2-2000 | 2 | 2000 | 399 | 214 | 772 | 807 | F10 | 0.22 |
WPSOpzV2-2500 | 2 | 2500 | 487 | 212 | 772 | 807 | F10 | 0.2 |
WPSOpzV2-3000 | 2 | 3000 | 576 | 212 | 772 | 807 | F10 | 0.19 |
WPSOPzV12-100 | 12 | 100 | 409 | 174 | 215 | 240 | F12 | 8.00 |
WPSOPzV12-150 | 12 | 150 | 532 | 207 | 215 | 240 | F12 | 7.00 |
WPSOPzV12-200 | 12 | 200 | 520 | 268 | 220 | 245 | F14 | 5.00 |
6V, & 12V SeriesModel | Voltage (V) | 10h Rate Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Total Height (mm) | Term -inal |
WPS12-7 | 12 | 7 | 151 | 65 | 95 | 99 | F1/F2 |
WPS12-12 | 12 | 12 | 151 | 98 | 95 | 95/99 | F1/F2 |
WPS12-18 | 12 | 18 | 181 | 77 | 167 | 167 | M6 |
WPS12-24 | 12 | 26 | 167 | 175 | 125 | 125 | F7 |
WPS12-24H | 12 | 26 | 167 | 126 | 175 | 175 | F6 |
WPS12-33 | 12 | 33 | 196 | 131 | 155 | 180 | F7 |
WPS12-38 | 12 | 38 | 196 | 166 | 175 | 182 | F7 |
WPS12-55 | 12 | 55 | 229 | 138 | 208 | 227 | F7 |
WPS12-65 | 12 | 65 | 350 | 166 | 178 | 178 | F7 |
WPS12-70 | 12 | 75 | 259 | 169 | 208 | 227 | F7 |
WPS12-90 | 12 | 90 | 307 | 169 | 208 | 227 | F7 |
WPS12-100 | 12 | 100 | 329 | 172 | 215 | 240 | F7 |
WPS12-120 | 12 | 120 | 409 | 174 | 209 | 238 | F7 |
WPS12-150 | 12 | 150 | 484 | 171 | 241 | 241 | F7 |
WPS12-160 | 12 | 160 | 532 | 209 | 241 | 244 | F7 |
WPS12-200 | 12 | 200 | 522 | 240 | 216 | 242 | F7 |
WPS12-250 | 12 | 250 | 520 | 268 | 220 | 249 | F7 |
WPS6-120 | 12 | 120 | 280 | 265 | 206 | 206 | M8 |
WPS6-200 | 6 | 200 | 306 | 168 | 222 | 228 | F14 |
2V Series
Browse the following pages:
http://weipasi.en.made-in-china.com/product-group/RbhEcWpkJUVu/2V-GEL-AGM-Long-Life-Battery-catalog-1.htmlModel | Voltage (V) | 10h Rate Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Total Height (mm) | Terminal |
WPS2-50 | 2 | 50 | 161 | 50 | 166 | 166 | F7/F14 |
WPS2-100 | 2 | 100 | 171 | 72 | 205 | 212 | F7/F14 |
WPS2-150 | 2 | 150 | 172 | 102 | 205 | 227 | F7/F14 |
WPS2-200 | 2 | 200 | 173 | 111 | 329 | 365 | F8/F15 |
WPS2-300 | 2 | 300 | 171 | 151 | 330 | 366 | F8/F15 |
WPS2-400 | 2 | 400 | 211 | 176 | 329 | 367 | F8/F15 |
WPS2-500 | 2 | 500 | 241 | 172 | 331 | 366 | F9/F15 |
WPS2-600 | 2 | 600 | 301 | 175 | 331 | 366 | F9/F15 |
WPS2-800 | 2 | 800 | 410 | 175 | 330 | 365 | F9F15 |
WPS2-1000 | 2 | 1000 | 475 | 175 | 328 | 365 | F10/F15 |
WPS2-1500 | 2 | 1500 | 401 | 351 | 342 | 378 | F10/F16 |
WPS2-2000 | 2 | 2000 | 491 | 351 | 344 | 383 | F10/F16 |
WPS2-3000 | 2 | 3000 | 712 | 353 | 241 | 382 | F10/F16 |
12V Front access terminal Series
Browse the following pages:
http://weipasi.en.made-in-china.com/product-group/eoVQlUYbXRhZ/12V-Front-Access-battery-catalog-1.htmlModel | Voltage (V) | 10h Rate Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Total Height (mm) | Terminal |
WPS12-55FT | 12 | 55 | 277 | 106 | 223 | 223 | F13 |
WPS12-75FT | 12 | 75 | 562 | 114 | 188 | 188 | F13 |
WPS12-100FT | 12 | 100 | 394 | 110 | 286 | 286 | F13 |
WPS12-105FT | 12 | 110 | 507 | 110 | 223 | 223 | F13 |
WPS12-120FT | 12 | 120 | 552 | 110 | 239 | 2.39 | F13 |
WPS12-125FT | 12 | 125 | 436 | 108 | 317 | 317 | F13 |
WPS12-150FT | 12 | 150 | 551 | 110 | 288 | 288 | F13 |
WPS12-180FT | 12 | 200 | 561 | 125 | 316 | 316 | F13 |
12 | 180 | 561 | 125 | 316 | 316 | F13 |
Prod Model: |
12V180AH |
Quality Standard: |
ISO9000, CE, RoHS, MSDS, Soncap, Coc/Voc, UL, IEC |
Productong Lead-Time: |
2~30 Days After Deposit |
Battery Size(mm): |
561*125*316 |
Qty Per Box: |
1PC |
Designed Floating Service Life: |
>15 Years @ 20 ° C/68 ° F |
Color: |
Red, Black, Grey, Brown, Order |
Type: |
Lead-Acid Batteries |
Usage: |
Boat |
Nominal Voltage: |
12V |
Discharge Rate: |
High Discharge Rate |
Rechargeable: |
Chargeable |
Shape: |
Oblong Battery |
ZhongShan Weipasi Power Co., Ltd. is a professional and leading manufacture of battery company. We manufacture the battery from raw material to finished products, Have our own plates factory, and a sister lighting company Special Owl lighting technology Co., Ltd.
We are very confident that we can satisfy you with good quality and best price. Our products include Maintenance-Free car battery for JIS/DIN/BCI series, Dry-Chargd car battery for JIS/DIN/BCI/CN series, UPS (Uninterruptible power supplies) battery, emergency lighting facility battery, electric toy battery, backup power battery, Solar Power Systems battery, Power tools battery, elevator battery, lawn mower battery, vacuum cleaners battery, telecommunication equipments battery, electric golf car battery, electric scooter battery, electric wheel chair battery, electrically-operated-gate/power-door/auto-door battery, medical equipments battery, remote Switching battery, control equipments battery, marine equipment battery, alarm and security devices battery, electric charger power systems battery, navigation systems battery, electronic instruments, monitor/Control Systems battery and battery for transformer substation, microwave relay station, power plant, remote sensing device, energy storage of solar/wind power generator.
Sister lighting company Special Owl lighting technology Co., Ltd. Products include LED rechargeable flashlight, head lamp, desk lamp, searchlight, emergency light, mosquito swatter, bulb, barn lantern, portable solar lighting, solar power system...
We has already gained many well-known certificates like ISO 9001: 2000, CE, UL, COC/VOC, SONCAP, MSDS, IEC test report and RoHS, and its batteries are highly recognized all over the world and widely applied in automobiles, marine boats, electronic bicycles, vacuum cleaners, air pumps and all types of UPS and toys. Meanwhile, they are also used in lots of systems as telecommunication, emergency lighting, security and burglar alarm, power station, solar, nation defense etc. Furthermore, we are able to provide customers newly-developed products per their requirements.
