Prod Model: |
6FM35G |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
CE/UL/ISO9001/ISO14001/Ohsas18001 |
Terminal: |
F9/F7 Also Can Be Designed |
Color: |
Grey or Black |
Type: |
Lead-Acid Batteries |
Usage: |
Lighting |
Nominal Voltage: |
12V |
Discharge Rate: |
Low Discharge Rate |
Rechargeable: |
Chargeable |
Shape: |
Rectangle Battery |
Product Description

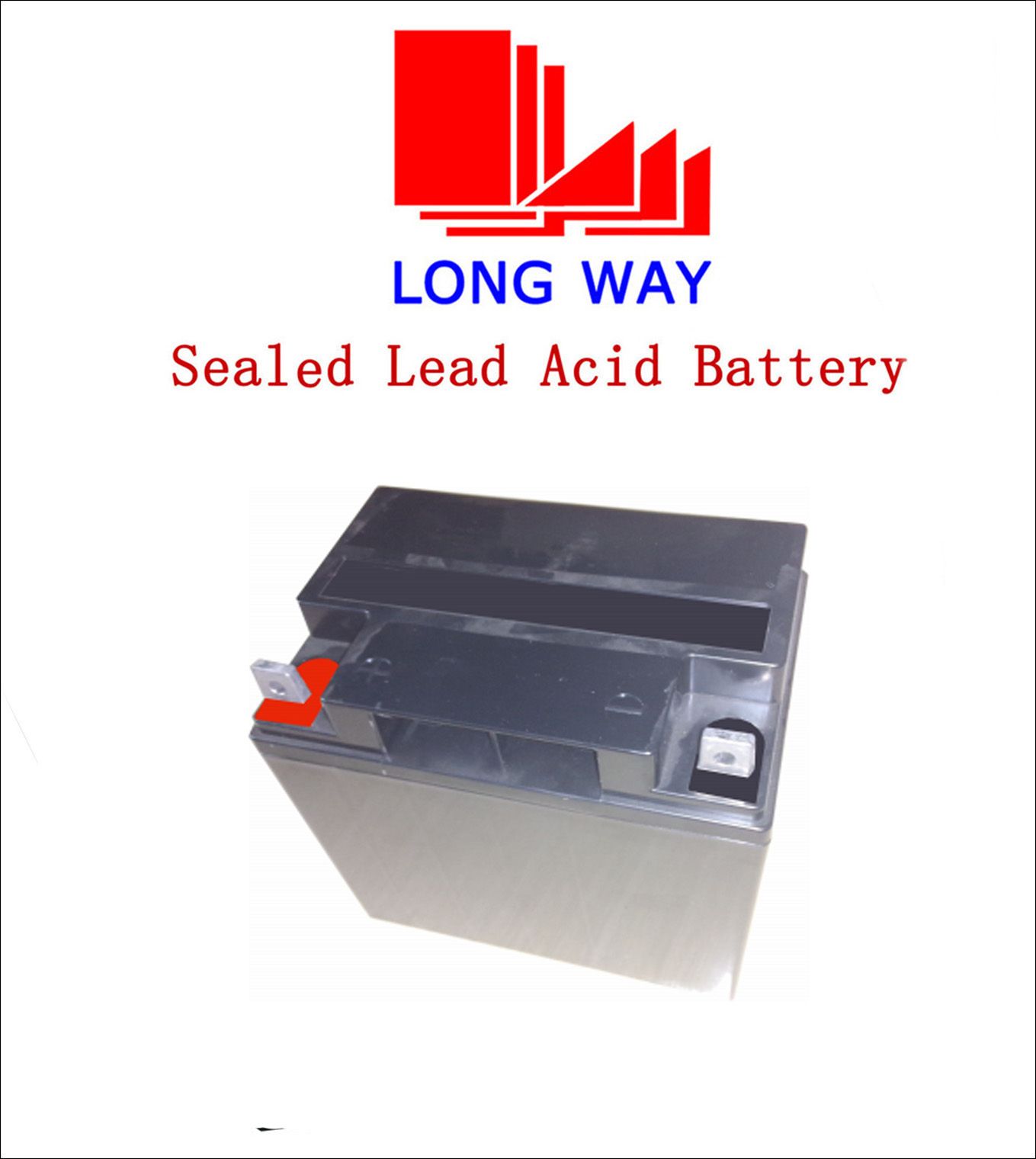

LONGWAY 12Volt 35ah 10hr valve regulated lead acid battery vrla battery manufacturer
LONGWAY Sealed lead acid battery used for AGM VRLA/SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V 1.3Ah-190Ah used for emergency lighting and alarm lighting and sound application.
12V 0.8Ah - 250Ah used for power storage and backup for standby power & deep cycle use.
2V 50Ah- 3000Ah used for solar power systems and telecommunication are using
all self-made high quality and thick deep cycle plates.
Specification
Product type: Vrla battery 12V35AH/10hr
Capacity: 35Ah@10Hr-rate to 1.80V per cell@25° C
Weight: Approx. 10.5 kg(23.15lbs)
Maximum Discharge Current: 350A(5sec)
Internal Resistance: Approx. 8.5mΩ Full charged @25° C
Operating Temperature Range:
Discharge: -15° C~50° C
Charge: -15° C~40° C
Storage: -15° C~40° C
Nominal Operating Temperature Range: 25° C± 3° C
Float Charging Voltage: 13.7~13.9VDC/unit Average @25° C
Maximum Charging Current: 8.75A
Equalization and Cycle Service: 14.4V~15.0VDC/unit Average @ 25° C
Self Discharge
LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
For more than 6 months at 25° C. Self-discharge ratio less than 3%
Per month at 25° C. Please charge batteries before using.
Terminal: F9
Container Material: ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
OEM acceptable.
General Features
Ø Stable quality&high reliability
Ø Sealed construction
Ø Environmentally friendly
Ø Maintenance-free operation
Ø Low pressure venting system
Ø Heavy duty grid
Ø Low self discharge
Ø UL component recognition(MH46789)
Applications:
*Alarm systems, Cable television, communications equipment, control equipment,
*Computers, electronic cash registers, electric test equipment,
*Electric powered bicycle and wheel chair,
*Emergency lighting systems, fire&security, geophysical equipment,
*Marine equipment, medical equipment,
*Micro processor based office machines, portable cine&video lights,
*Power tools, solar powered systems,
*Telecommunications systems, television&video recorders, toys,
*Uninterruptible power supplies, vending machines;
Packing and Shipping
*Packing Qty: 1 PC/CTN
N. W: 10.5kg
G. W: 11.0KG
*Packing carton size: 214*149*226 mm
*Packing: By Carton Box With Wooden Pallet.
*Lead-time: 1500 PCS for one container
10-25 days after order for the first container, 3-7days for the second container.
*Loading Port/Discharge Port: From Xiamen, China to any port in Your country by ship.
Our certificate
Our factory photo
We are committed to expert porfessionalism and dependable services.
Any questions, pls feel free to contact us and welcome you!
Standby LONGWAY Standard Series batteries |
Battery Model | Nominal Voltage(V) | Nominal Capacity (AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
6FM1.2 | 12 | 1.2 | 3.86 | 98 | 1.71 | 43.5 | 2.05 | 52 | 2.28 | 58 | 1.26 | 0.57 | F1 | E |
6FM2.2 | 12 | 2.2 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.70 | 0.77 | F1 | C |
6FM2.4 | 12 | 2.4 | 7.01 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 2.14 | 0.97 | F1 | C |
6FM2.6 | 12 | 2.6 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.83 | 0.83 | F1 | C |
6FM3.2 | 12 | 3.2 | 5.28 | 134 | 2.64 | 67 | 2.34 | 59.5 | 2.60 | 66 | 2.80 | 1.27 | F1/F2 | E |
6FM4 | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.15 | 1.43 | F1/F2 | C |
6FM4.5 | 12 | 4.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.26 | 1.48 | | C |
6FM5 | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.57 | 1.62 | F1/F2 | C |
6FM5A | 12 | 5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.66 | 1.66 | F2+F1- | C |
6FM5B | 12 | 5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
6FM5.5 | 12 | 5.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.86 | 1.75 | F1/F2 | C |
6FM5.5A | 12 | 5.5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.86 | 1.75 | F2+F1- | C |
6FM5.5B | 12 | 5.5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
6FM6 | 12 | 6 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.30 | 1.95 | F1/F2 | F |
6FM7 | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.63 | 2.10 | F1/F2 | F |
6FM7.2 | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.74 | 2.15 | F1/F2 | F |
6FM7.5 | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.20 | F1/F2 | F |
6FM8 | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
6FM8E | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
6FM9 | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.60 | F1/F2 | F |
6FM10A | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.61 | 3.00 | F2 | F |
6FM10B | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.39 | 2.90 | F2 | F |
6FM10 | 12 | 10 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 6.72 | 3.05 | F2 | F |
6FM11 | 12 | 11 | 7.13 | 134 | 3.15 | 80 | 6.34 | 161 | 6.50 | 165 | 10.10 | 4.58 | F3 | C |
6FM12 | 12 | 12 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 7.17 | 3.25 | F2 | F |
6FM14 | 12 | 14 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
6FM15 | 12 | 15 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 10.14 | 4.60 | F4 | D |
6FM17 | 12 | 17 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.02 | 5.00 | F4 | D |
6FM18 | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.90 | 5.40 | F4 | D |
6FM18C | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.10 | F4 | D |
6FM20 | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.35 | 5.60 | F4 | D |
6FM24 | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.60 | F4/F8 | D |
6FM26 | 12 | 26 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.96 | 8.60 | F4/F8 | D |
6FM28 | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9.00 | F4/F8 | D |
6FM28A | 12 | 28 | 6.50 | 165 | 4.96 | 126 | 6.89 | 175 | 7.01 | 178 | 18.74 | 8.50 | F14/F9 | D |
6FM30 | 12 | 30 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 20.94 | 9.50 | F9/F15 | C |
6FM33 | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 22.49 | 10.20 | F9 | C |
6FM35 | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.50 | F9 | C |
6FM38 | 12 | 38 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 28.66 | 13.00 | F9 | D |
6FM40 | 12 | 40 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.76 | 13.50 | F9 | D |
6FM45 | 12 | 45 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 30.86 | 14.00 | F9 | D |
6FM50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.04 | 16.80 | F9 | C |
6FM55 | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.50 | F9 | C |
6FM60 | 12 | 60 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
6FM65 | 12 | 65 | 13.78 | 350 | 6.50 | 165 | 7.17 | 182 | 7.17 | 182 | 46.30 | 21.00 | F6/F9 | C |
6FM70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
6FM75 | 12 | 75 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 50.71 | 23.00 | F9 | C |
6FM80B | 12 | 80 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 51.81 | 23.50 | F9 | C |
6FM80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25.00 | F9 | C |
6FM90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F9 | C |
6FM95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27.00 | F9 | C |
6FM100H | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30.00 | F11 | C |
6FM100E | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.50 | F11 | C |
6FM120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35.00 | F11 | C |
6FM120E | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 68.34 | 31.00 | F11 | C |
6FM134 | 12 | 134 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F10 | C |
6FM150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 97.00 | 44 | F11 | C |
6FM160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F10 | C |
6FM200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60 | F11 | E |
6FM200E | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 134.48 | 61 | F11 | E |
6FM230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 145.51 | 66 | F11 | F |
6FM250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F11 | E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
