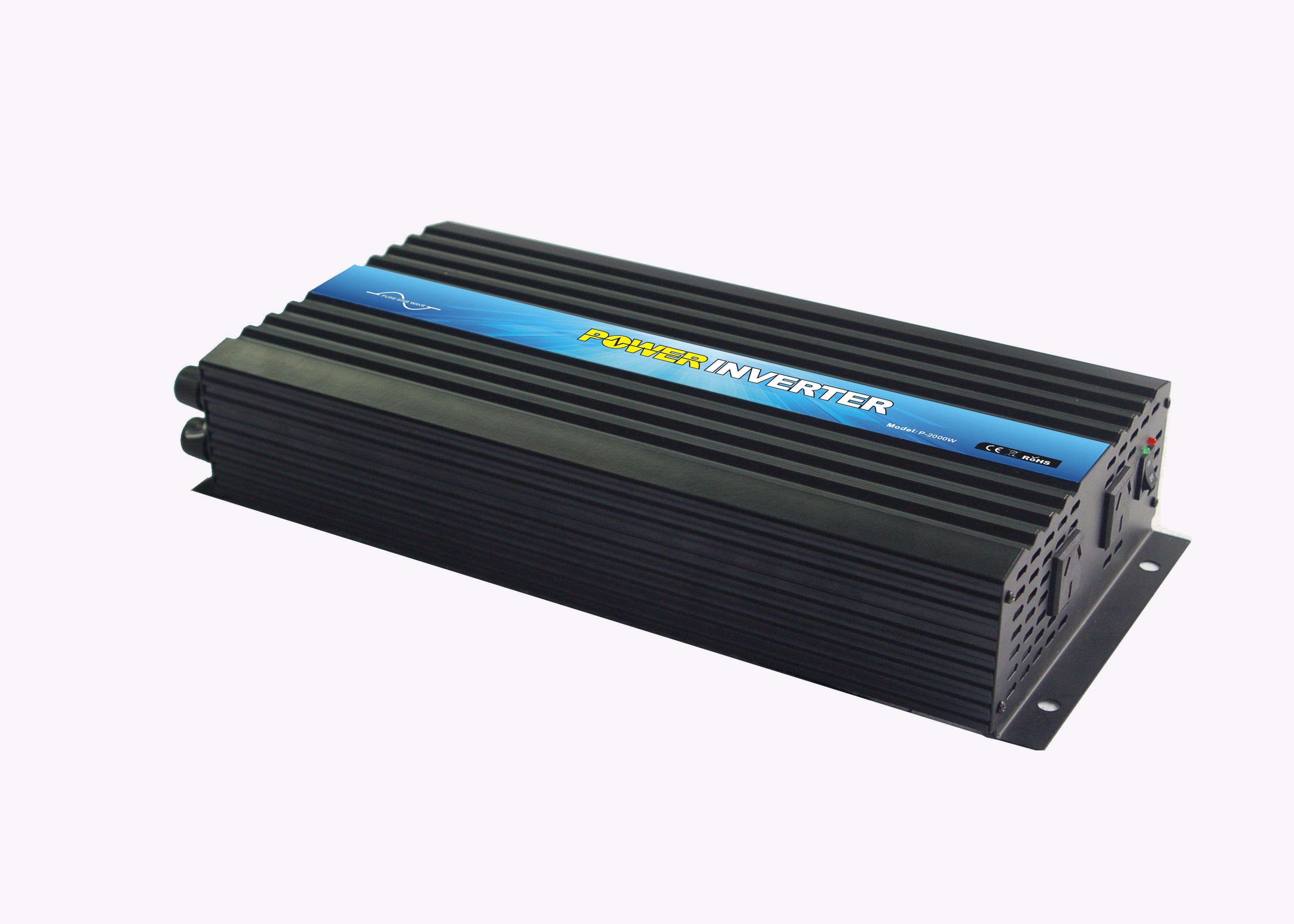

12VDC 2000W Pure Sine Wave off-Grid Solar Inverter
Price: |
Negotiable/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
2000W pure sine wave inverter | | | | | |
Product Features: |
High transform efficiency, fast start; |
Pure sine wave output waveform; |
Softstart function; |
Strong adaptability and stability ; |
With automatic over-current and output short circuit protection to avoid damaging the equipment; |
Temperature-controlled fan, safe & efficient; | | | | |
Safe and reliable with built-in fuse. | | | | | |
1 year warranty (Remarks: Customizable input voltage such as 36v,72v,96v,110v etc; output voltage such as 120v, 130v, 200v etc; Many kinds of sockets are available). |
Function details: |
Model | P2000-12A | P2000-24A | P2000-48A | P2000-12B | P2000-24B | P2000-48B |
Rated Power | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W |
Peak Power | 4000W(within 5 millisecond) |
DC Input Voltage | 12V | 24V | 48V | 12V | 24V | 48V |
AC Output Voltage | 110VAC±10% | 220VAC±5% |
No-load Current | < 1.7A(DC13V) | < 1.05A(DC26V) | < 0.85A(DC52) | < 1.7A(DC13V) | < 1.05A(DC26V) | < 0.85A(DC52) |
AC Output Frequency | 50HZ±1%/60HZ±1% |
AC Output Waveform | Pure sine wave |
Waveform Distortion | THD<3% |
Full Load Efficiency | >86%(DC13V) | >88%(DC13V) | >90%(DC13V) | >86%(DC13V) | >88%(DC13V) | >90%(DC13V) |
DC Input Voltage Range | 10.6V-15.5V | 21.6V-30V | 43.2V-63V | 10.6V-15.5V | 21.6V-30V | 43.2V-63V |
Low Voltage Alarm | 10.5±0.3V | 21±0.6V | 41.8±1.2V | 10.5±0.3V | 21±0.6V | 41.8±1.2V |
Low Voltage Protection | 9.5±0.2V | 19±0.3V | 38±0.4V | 9.5±0.2V | 19±0.3V | 38±0.4V |
Over Voltage Protection | 16±0.5V | 32±1V | 65±2V | 16±0.5V | 32±1V | 65±2V |
Low Voltage Recovery | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V |
Over Voltage Recovery | 15.7±0.3V | 31.8±0.4V | 63±1V | 15.7±0.3V | 31.8±0.4V | 63±1V |
Over-load Protection | 120%-125% |
Protective Function | Low voltage: LED red light turn on,buzzer warning, automatic recovery |
Over voltage: LED red light turn on ,automatic recovery |
Over-load: LED red light on,machine locked, need to be rebooted |
Over temperature: LED red light turn on,buzzer warning, automatic recovery |
Short circuit(within 2 seconds): automatic recovery |
Input reverse connection: Fuse burn-out |
Work Temperature | -10°C - +50°C |
Storage Temperature | -30°C - +70°C |
Humidity | 20%-90%RH without condensation |
Work Altitude | ≤1200m |
Size | 448*199*78mm/pc |
Net Weight | 5.66±0.05kg/pc | 5.54±0.03kg/pc | 5.46±0.03kg/pc | 5.66±0.05kg/pc | 5.54±0.03kg/pc | 5.46±0.03kg/pc |
Package Size | 520*260*165mm/pc; 520*260*305mm/2pcs |
Gross Weight | 7.16±0.05kg/pc | 6.88±0.05kg/pc | 6.8±0.05kg/pc | 7.16±0.05kg/pc | 6.88±0.05kg/pc | 6.8±0.05kg/pc |
13.86±0.1kg/2pcs | 13.4±0.05kg/2pcs | 13.2±0.05kg/2pcs | 13.86±0.1kg/2pcs | 13.4±0.05kg/2pcs | 13.2±0.05kg/2pcs |
Services:
1)The good construction warranty-1 years2)Your can get good reputation from your market and obtain more orders3)Your client satisfied on the right schedule and quality4)Our professional service before and after sale5)The reasonable price6)Any questions from you are welcome and will be replied in 24 hoursFAQ:1. What is inverter?Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.2.How many kinds of output wave form for inverters?Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate. 3.How do we equip an appropriate inverter for battery?Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
Prod Model: |
P2000-12-110 |
Input: |
12VDC |
Output: |
110VAC |
Rated Power: |
2000W |
Peak Power: |
4000W |
Size: |
448*199*78mm |
Weight: |
5.6kgs |
No-Load Current: |
<1.7A(DC13V) |
Output Frequency: |
50Hz±1%/60Hz±1% |
Protections: |
Overload&Short-Circuit Protection |
