| Prod Model: |
12V17ah |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0 |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

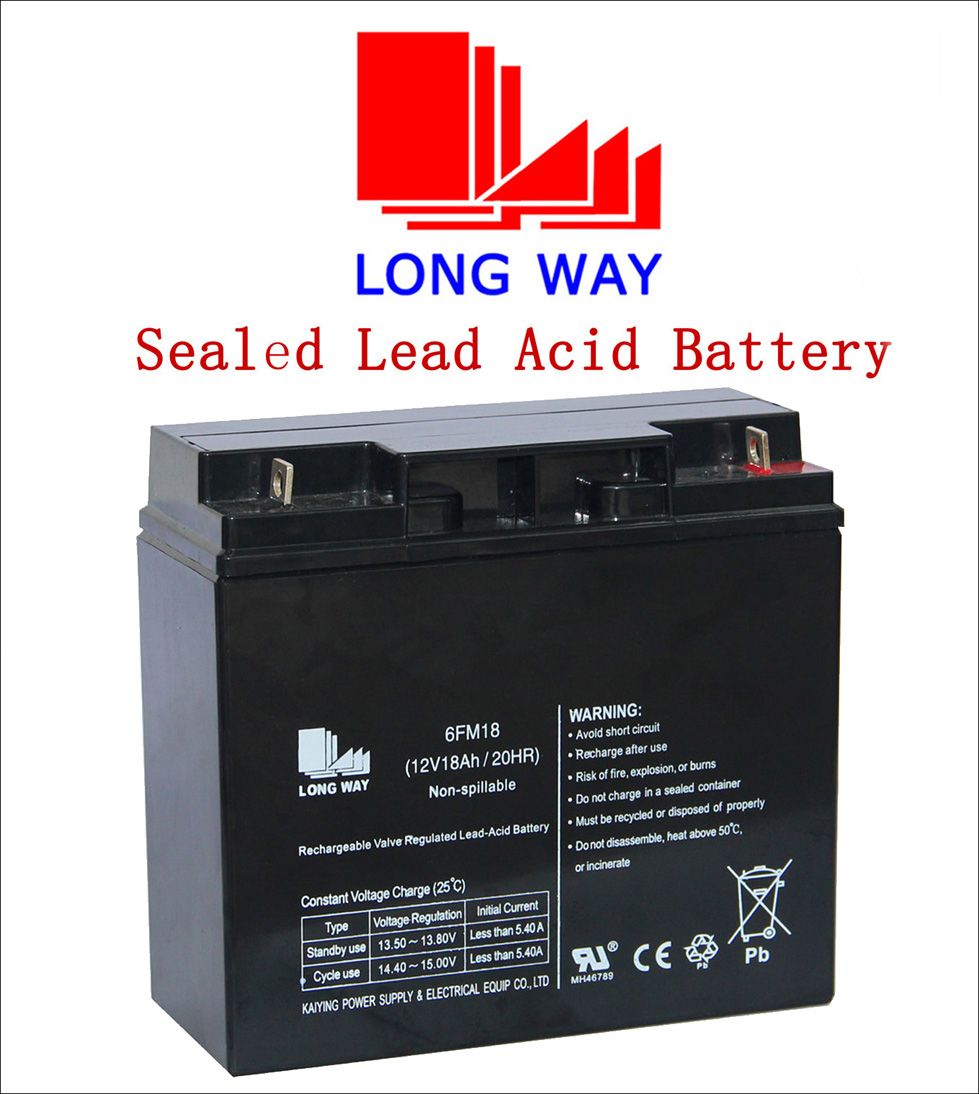

12Volt 17 agm lead acid battery for lift elevator
LONGWAY® Standard battery is design for a general purpose by KaiYing
Power. 6FM17 is a general purpose battery up to 5 years in star service or
more than 260 cycles at 100% discharge in cycle service. As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.
| Normal Voltage | 12V |
| Capacity | 18Ah@20Hr-rate to 1.75V per cell@25ºC |
| Weight | Approx. (5.1%)kg(2.21bs) |
| Maximum Discharge Current | 180A(5sec) |
| Internal Resistance | Approx.14mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.7~13.9VDC/unitAverage @25ºC |
| Maximum Charging Current | 5.4A |
| Equalization and Cycle Service | 14.4V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | F4/F8 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L181*W77*H167(TH167)mm |
LONGWAY battery used for AGM VRLA/SLA maintenance-free battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.Construction· Component ......Raw material ·
Sealant ........Epoxy Resin· Positive ........Lead dioxide ·
Safety valve .....EPDR· Negative ........Lead ·
Terminal ........Copper· Container ........ABS ·
Separator ........Fiber glass· Cover ........ABS ·
Electrolyte .......Sulfuric acidFEATUR
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case If get interest, just contact me freely.12Volt 17 agm lead acid battery for lift elevator
