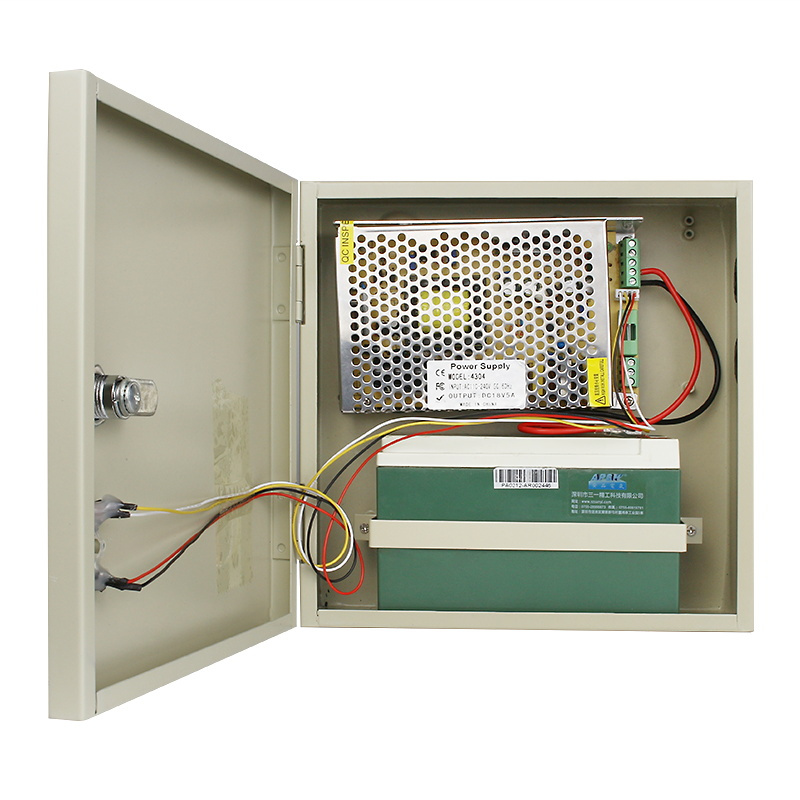

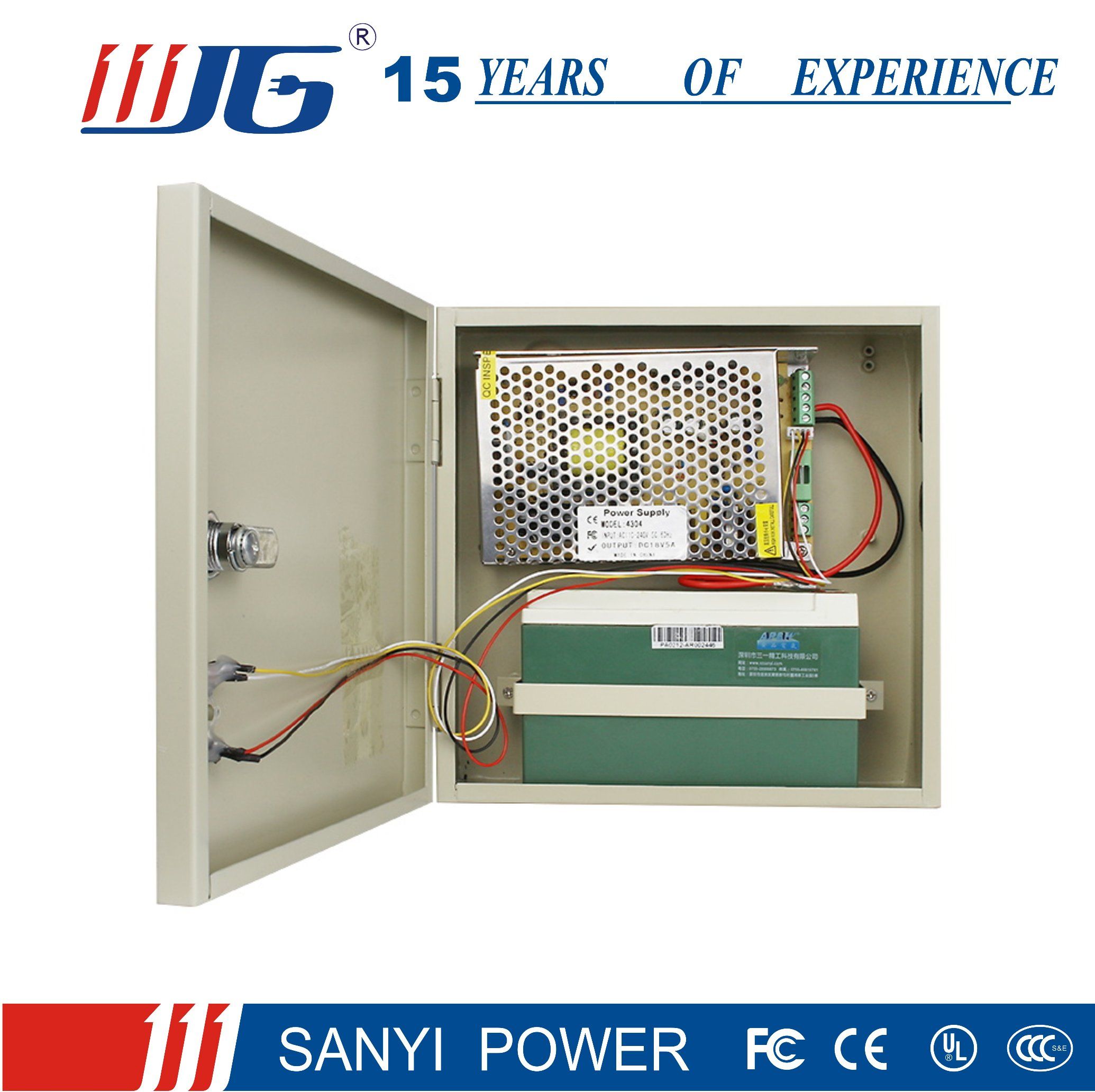

13.8V/21V/30V Access Control Power Supply with UPS Backup
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Power supply for access control system1.Characteristic>Universal AC input/Full arange
>Automatic protection function:a short circut,overload,over temperature protection
>Have On/NC(normally open,normally closed)function, suitable for different types of electric lock
>A delay lock control,adjustable time in 0~15s
>Battery discharge protection and short circuit protection,power outage seamless docking.
>Directly control the electric lock,reduce entrance guard unit load
>Can be customized according to user selection1.Specification| MODEL | MJ-60B |
| Output | DC Voltage | V1 | V2 | V3 |
| | | 13.8V | 12 | 13.8 |
| | Rated Current | 5A | 1A | 1A |
| | (6)Current Range(Note 6) | 0~5A | 0~1A | 0~1A |
| | Charging Voltage | / | / | 13.8 |
| | Charge Current | / | / | 1A |
| | Over Voltage | / | / | 10.5V |
| | Rated Power | 69W | 12W | / |
| | (2)Ripple & Noise Max(Note2) | 120mVp-p |
| | Voltage Adj. Range | ±10% |
| | (3)Voltage Tolerance(Note 3) | ±5% |
| | (4)Line Regulation Note 4) | ±1% |
| | (5)Load Regulation(Note 5) | ±1% |
| | (Typ.)Efficiency(Typ.) | 85%
%% |
| | ,Setup,Rise Time | 500ms,30ms/220VAC |
| | (Typ.)Hold up time(Typ.) | 30ms/220VAC |
| Input | Voltage Range | 100~240VAC (300VAC5S,) (Withstand 300VAC surge input 5 second, No damage) |
| | Frequency Range | 50/60Hz |
| | (Typ.)Ac Current(Typ.) | 0.8A/220VAC |
| | (Typ.)Inrush Current(Typ.) | Cold Start:70A/220VAC |
| | (Typ.)Leakage Current(Typ.) | <2mA/240VAC |
| Protection | | Protection type:Diode clamp,recovers automatically after fault condition is removed |
| | Over load | 105%~150% |
| | | Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| | Over Voltage | 115%~150% |
| | | Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| Environment | Working Temp | -10ºC~70ºC |
| | Working Humidity | 20~90%RH,non-condensing |
| | Storage Temp,Humidity | -20ºC~75ºC 10~98%RH,non-condensing |
| | Temp. Coefficient | ±0.03%/ºC(0~50ºC)(+5V) |
| | Vibration | 10~500Hz,5G 10/,X,Y,Z60 10Min/1 cycle,period for 60min,each along X,Y,Z axes |
| Safety & EMC(Note 7) | Safety Standards | GB4943,EN60950 |
| | Withstand Voltage | I/P-O/P:3KVAC 10s I/P-FG:1.5KVAC 10s |
| | Isolation Resistance | I/P-O/P 3KVAC 10mA 5s I/P-FG 1.5KVAC 10mA 5s |
| | EMI Conduction Radiation | Compliance to :EN55022, EN61000-3-2,3,FCC part15,GB9254 class B,GB17625.1 |
| | EMS Immunity | Compliance to :EN61000-4-2,3,4,5,6,8,11,Alight industry level, criteria A |
| Others | MBTF | ≥100000h. |
| | Dimension/Packing | 180*230*80mm(L*W*H)/ 1.5KG;10pcs/15Kg |

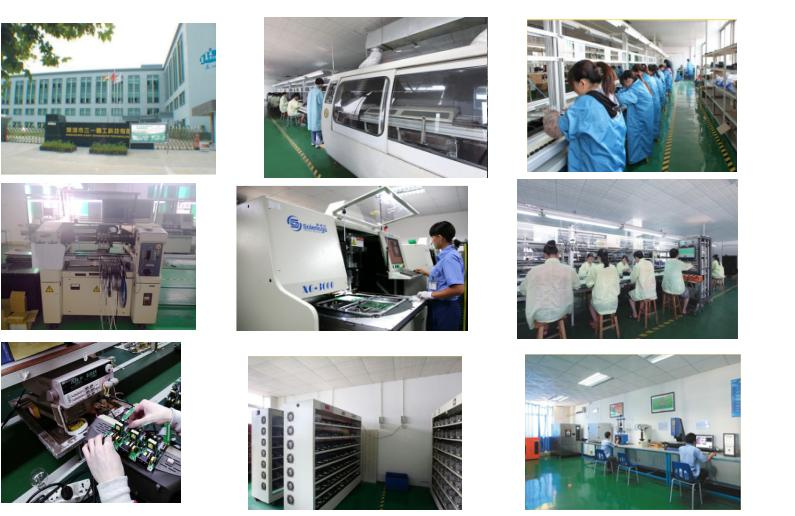

3.Factory Profiles
4.Certificate
5.FAQ| Q1:What kind of payment term do you accept ? |
| A1:T/T,L/C,Paypal,Western Union |
| Q2: What is your MOQ ? |
| A2:The MOQ can be 1Pcs |
| Q3:What's your lead time ? |
| A3:The delivery time is 1-25days which depend on detail items and quantity. |
| Q4:Do you accept OEM ODM ? |
| A4: Yes,Customized specification & structure /Print logo on your products/Customized color package box |
| Q5:What is the warranty for your product? |
A5:All our products have been strictky quality checked before packing. Our repare rate under 0.1%~0.2% .We have the best
professional and experienced engineer and we are very strict QA and QC .So,You don't need worry about the quality problem
if cooperate with us. |
| Q6:Can we be your distributor? |
| A6:Yes,If your annual sales much more than our other customers in your country,that your can be our distributor. |
6.ContactSHENZHEN SANYI TECHNOLOGY CO.,LTD Web: www.szsanyi.com
Attn:Ruby
Phone+86 18688739138
Tel: +86 755 28986673
Add: Floor 4, Block 1,JiaHongTai Industrial Area, XinTun Village,AiLian Community, LongGang District,Shenzhen 518172,China
| Prod Model: |
MJ60B |
| Input Frequency Range: |
50/60Hz |
| Input Voltage: |
110V-240V |
| Type: |
Distribution Metering Box |
| Structure: |
Open Frame |
| Certification: |
FCC Ce ISO RoHS |
| Application Range: |
Camera, IR Illuminators, Video Process Equipment |
| Brand: |
Sanyi Power |
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.
We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.
We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
