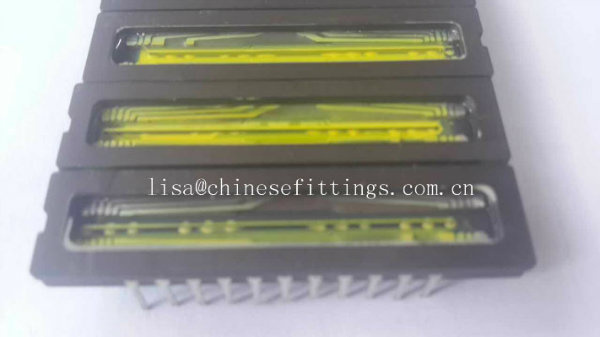

130nm Wavelength 1304dg UV Coated CCD

2048-element Sony silicon CCD
By our uv enhanced coating technology, the sensitive wavelength of SONY ILX511 can be 149nm-1100nm
1. Our products:
CCD:    Sony CCD ILX511  UV Coated (without glass)
            Sony CCD ILX526A  UV Coated (without glass)
            Sony CCD ILX554b  UV Coated (without glass)
            Toshiba CCD 1304DG  UV Coated (without glass)
CMOS: SONY ICX CMOS UV Coated (without glass)
            APS CMOS UV Coated (without glass)
UV coating of sensors :
In order to extend the usable spectral region of the sensors, they can be provided with a specialized coating. In the case of applications with UV light this coating emits visible light, which is detected by the sensors. Such a coating lowers the lower end of the spectral sensitivity from 350nm down to 150nm. Starting from 400nm the coating is almost transparent, so the sensitivity in the visible and in the near infrared is hardly affected. For such an UV coating above all sensors with large pixels are suitable. Some often requested sensors can be supplied with UV coating from stock (see table below). For other sensors this is possible on request.

Type	Manufacturer	Pixel number	Pixel size [μm2]	Data rate fps of pixel frequency
ILX511-UV	Sony	2048	14,0 x 200,0	2 MHz
ILX554B-UV	Sony	2048	14,0 x 56,0	2 MHz
TCD1304DG-UV	Toshiba	3648	8,0 x 200,0	1 MHz

2. Package:

PACKAGE STRUCTURE
PACKAGE MATERIAL	Cer-DIP
LEAD TREATMENT	TIN PLATING
LEAD MATERIAL	42 ALLOY
PACKAGE MASS	5.20g

3. After sales service:
3.1 When receiving the goods, please count the quantity, if anything less than ordered, please inform within three days. We will check our record and re-send accordingly.
3.2 After receiving the goods, please test and inform if there is any quality problem within one month. If there is quality problem in fact, we will replace or return payment accordingly. (IF THE QUALITY PROBLEM MADE BY MAN-MADE DAMAGE BY USER, WE WONT REPLACE FREE.)
