1. A 4-in 1 console with 15" LCD display is integrated to a drawer type worktable of 1U height to facilitate rack installation.
2. Support mixed interface (PS/2 & USB), facilitate computer port connection.
3. Support MS windows, Netware, UNIX and Linux.
4. Support iMac, Power MAC and Sun Micro system with USB connection.
5. No software is needed. Select computer via OSD menu, button and hotkey.
6. Provide multiple hotkeys(Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/R-Win) to switch computer ports and activate OSD menu.
7. Provide access control list function, capable of saving 8 independent user accounts.
8. Support hot plug & play --- computer can be removed without having to shutdown the LCD console.
9. Support two user levels, capable of searching computer/server name.
10. Can save keyboard status information when switching computer.
11. Support daisy-chained serial connection (8 levels) and stacking cascade connection (2 levels).
==15" LCD KVM console (disassembly design for keyboard, touch pad mouse)==

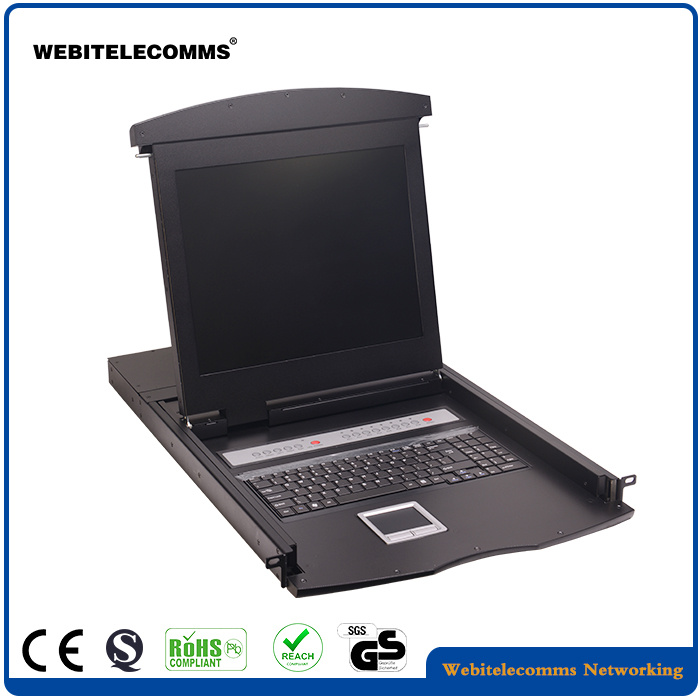

WB-AI3108ULG is KVM console module featuring an integrated 15" LCD panel, over-thin keyboard, and touch pad in a 1U, rack-mountable, Slideway housing
With A Grade 15" TFT LCD, the highest resolution is 1280X1024 60Hz, the optimum resolution is 1024X768 75Hz
Compared to traditional keyboards, monitor and mouse, it could save almost 85% space
==Features:==
Control platform with LCD, keyboard, mouse and single-port KVM switch
1U height, suitable for 19" standard cabinet installation and metal structure
15" LCD screen with high brightness, high clear and high resolution
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 105°
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
Built-in or external-in power
Automatic power on/off, when pulling control platform out from cabinet, the power turns on automatically
When pushing it into the cabinet, the power turns off automatically
An easy to use OSD menu
IP module: To realize the remote control by IP card
| Type | WB-AI3108ULG |
| Computer connections | 8 |
| CPU port selection | Front panel switches/OSD menu |
| Console connectors | Keyboard | Disassembled standard 99-key keyboard |
| Mouse | Disassembled standard PS/2 touch pad |
| Video | 15/17/19 inch SXGA color TFT-LED |
| Cable connectors | Keyboard | 1 x PS/2 male (purple) | 1 x USB male |
| Mouse | 1 x PS/2 male (green) |
| Video | 8 x HDB-15 male (blue) |
| IP Port | Network | RJ45 port |
| LEDs | On Line | 8red LEDs |
| Selected | 8green LED |
| Video resolution | 1280 x 1024 |
| Power | DC12V, 4A |
| Power adaptor | External: AC 100~230V |
| Operating temperature | -10C~50C |
| Storage temperature | -20C~60C |
| Housing | Metal |
| Weight | 18.6 Kg |
| Dimensions(L x W x H ) | 446 x 636 x 42 mm |
