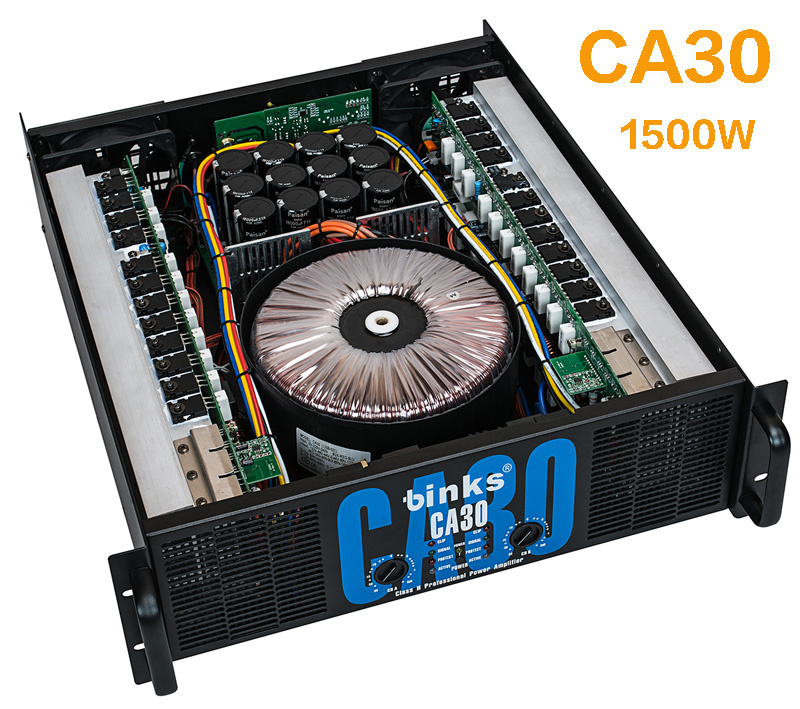

1500W Professional Power Audio Amplifier (CA30)

Name: 1500W Professional Power Audio Amplifier (CA30)
Brand: all-electronics-online.com
SKU: 799928735
Availability: InStock
Rating: 4.8 (147 reviews)

Price:	US $ 400-500/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Professional Power Audio Amplifier (CA30)

Features
1.CA Series provide extensive protection features such as Overheat short currents; DC protection; zero current; clip limiter; soft start
2. Copper transformer,big capacitor,level-2 or 3 power supply.
3. Flow-through ventilation from front to back
4. 200W-1300W power area
5.High power toroidal Copper transformer
6.Internal heat sinks with forced air cooling for rapid, heat dissipation
7. Dual fans for proper cooling to maintain performance and proper working levels
8. Can endure 8ohm, 4ohm and 2ohm loads

Technical Parameters:

Model	CA2	CA4	CA6	CA9	CA12	CA18	CA20	CA30
Stereo power 8Ω	2×200W	2×300W	2×400W	2×520W	2×800W	2×1100W	2×1300W	2×1300W
Stereo power 4Ω	2×300W	2×450W	2×600W	2×780W	2×1200W	2×1800W	2×1950W	2×2250W
Stereo power 2Ω	2×400W	2×600W	2×800W	2×1040W	2×1600W	2×2200W	2×2600W	2×3000W
Bridge power 8Ω	600W	900W	1200W	1560W	2400W	3600W	3900W	4500W
Bridge power 4Ω	800W	1200W	1600W	2080W	3200W	4400W	5200W	6000W
Frequency Resoponse	5Hz-35KHz(+0/-0.5dB)				20Hz-20KHz+0/-0.3dB
THD+N	<0.01% 8Ω 1KHz				<0.03% 8Ω 1KHz
Sighal to Noise	>100dB	>100dB	>100dB	>100dB	>95dB	>95dB	>95dB	>102dB

Model	CA2	CA4	CA6	CA9	CA12	CA18	CA20	CA30
Damping coefficient	>400	>400	>400	>400	>400	>400	>400	>400
Crosstalk	>70dB	>70dB	>70dB	>70dB	>70dB	>70dB	>70dB	>70dB
Input impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input sensitivity	1.0V/2.0V				0.775V/1.0V/1.4V
Protection	Output Relay-Zero Cument Switch,Irtellctual Cup Limiter
High	2U	2U	2U	2U	3U	3U	3U	3U
G.W	21KG	23KG	26KG	27.5KG	39KG	40KG	41KG	41KG
Dimension(L×W×H)	575×570×158mm				655×590×205mm

Detailed Pictures

Prod Model:	CA30
OEM:	Yes
Channel:	2
Transformer:	Copper
Transistor:	48PCS
Power Supply:	3-Level
Power:	200-1500watts
Type:	Professional Amplifier
Usage:	KTV System
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Sound Channel:	2.1
Output Number:	8
Voltage:	AC 220V
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB

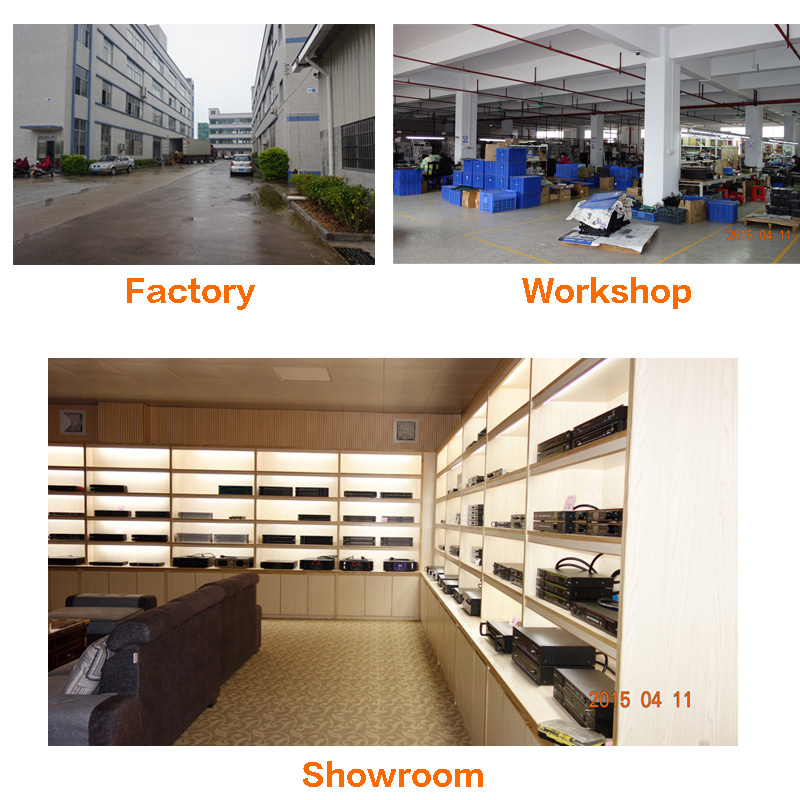

Located in Enping city with convenient traffic, Brun Audio Equipment Factory is a professional manufacturer of Power amplifier and audio processor such as Graphic Equalizer, Crossover, Power sequencer controller, Compressor Limiter and so on.

Founded in 2009, from the audio processor to power amplifier, from karaoke amplifier to 2 channel and 4 channel power amplifer, we integrate design, research, production and sales and adopt advanced technology.

Our Enterprise Propagation language is "Trust comes from Quality". We strictly control the quality all the time. Obey to provide the all the clients with good quality.

Our products widely use for Entertainment, meeting room, stage outdoors performance and so on. With 8 years of production experience, we are able to meet all the needs from our clients. We have won a high reputation both at home and abroad. We sincerely hope to cooperate with customers from all over the world to create a bright future together. If you are interested in any of our products, please contact us for more details.

OEM/ODM are available.
