150W 48V 2.8A Fanless Lithium Battery Charger

Name: 150W 48V 2.8A Fanless Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 799661005
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 10.35-10.45/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD150-15CH06
Output Power:	150W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

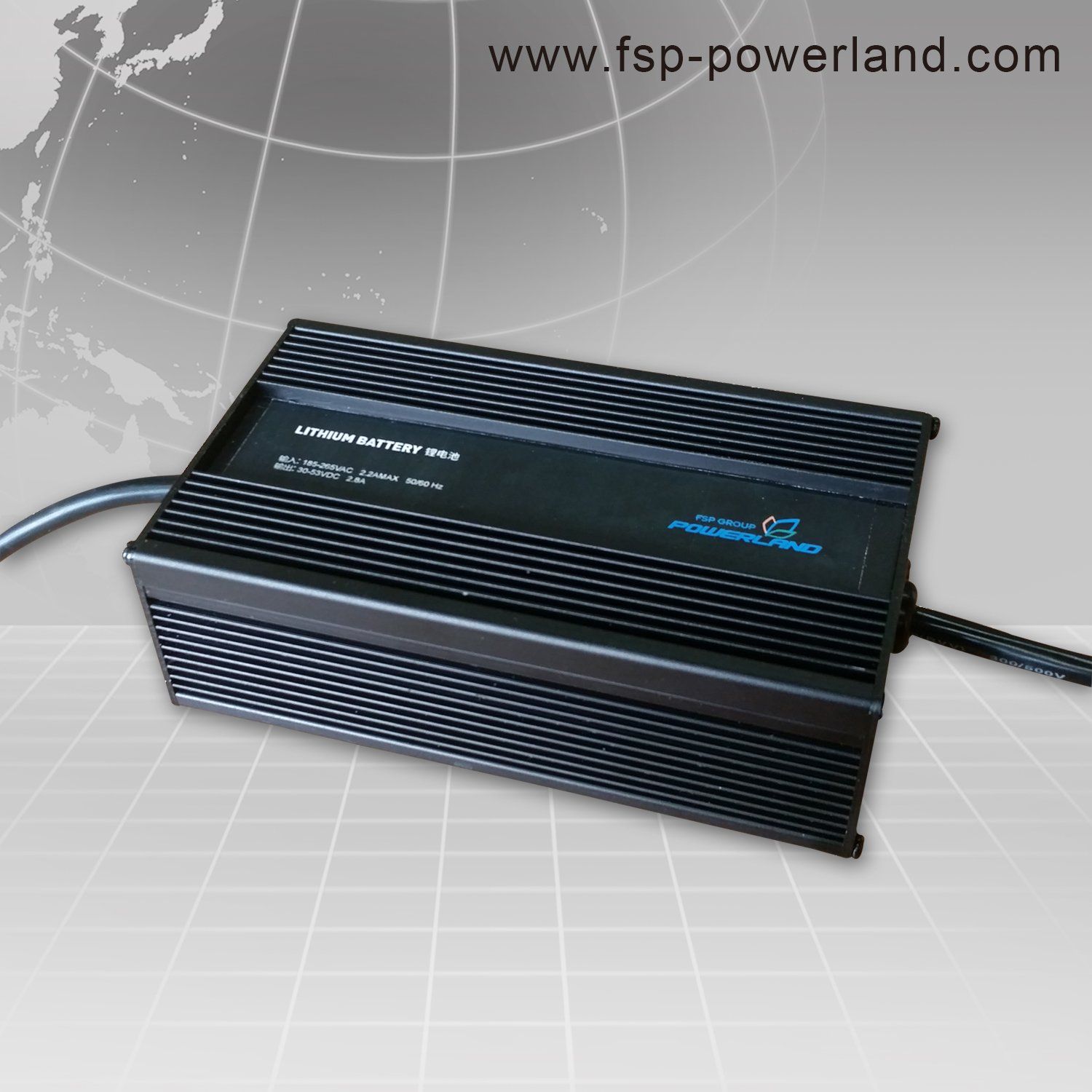

48V 2.8A Fanless Lithium Battery Charger

Powerland's Lithium battery chargers are designed with ultra-high power conversion efficiency,as well as full metal case enclosure.The outstanding performance of low power disspation and water proof provides the chargers high reliablility and super long life time.This series of chargers have been successfully installed in different kinds of electric vehicles,such as E-bikes,E-motorcycles,E-boat,E-forklifts,E-airport tugs,etc.

Features
Universal AC Input :185~265Vac
Output Power:152W
High ReliabilityEfficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP,UVLO
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50 ºC
IP67 Ingress Grade
Three Times Life Time
2 Year Warranty

Model Specifications

*Model Number*	Output Power	*Output Current*	*Output Current Range*	*Output Voltage Range*
PLD150-15CH06	152W	2.8A	95%Io~105%Io	30V~54.1V

Specifications

Model	PLD150-15CH06
Output Voltage	30V~54.1V
Output Current	2.8A
Max. Output Voltage	54.1V
Output Voltage@ Open Circuit	54.1V
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	152W
Input Voltage Range	185~265Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	2.0A@230Vac
Max. Input Power	168W
Efficiency	91% @ 230Vac
Leakage Current	0.70mA max. @ 240Vac / 50Hz
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP65
Working Temp	-20ºC~+50ºC
Cooling	Free Air Cooling
Max Case Temp. (ºC)	<55ºC @ 25ºC
Surge Protection	1kV/2kV
Isolation Test	Primary to Secondary: 3000Vac / 10mAMax / 60seconds Primary to Earth: 1500Vac 10mA max./60 seconds Secondary to Earth: 500Vac 10mA max./60 seconds
Dimension	146X84X48mm (LxWxH)
Weight	1.14Kg
Life Time	15,000 hours at 25 ºC, 230Vac input, and full load output.

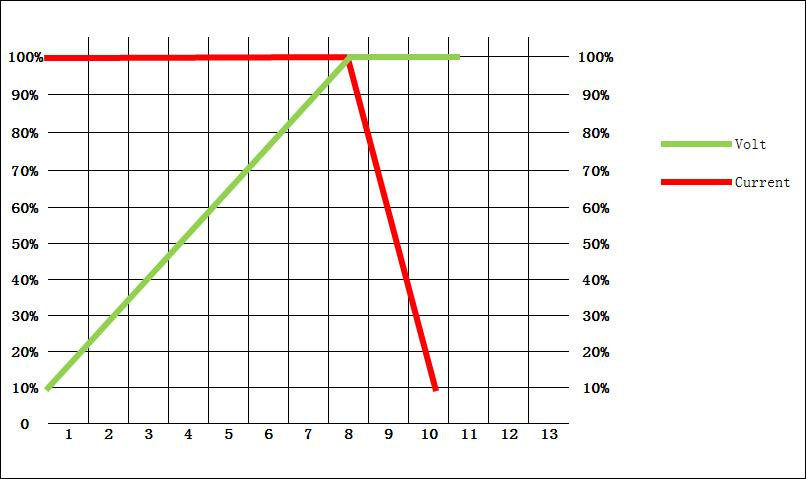

Charging Curve

Our Service & Payment

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
