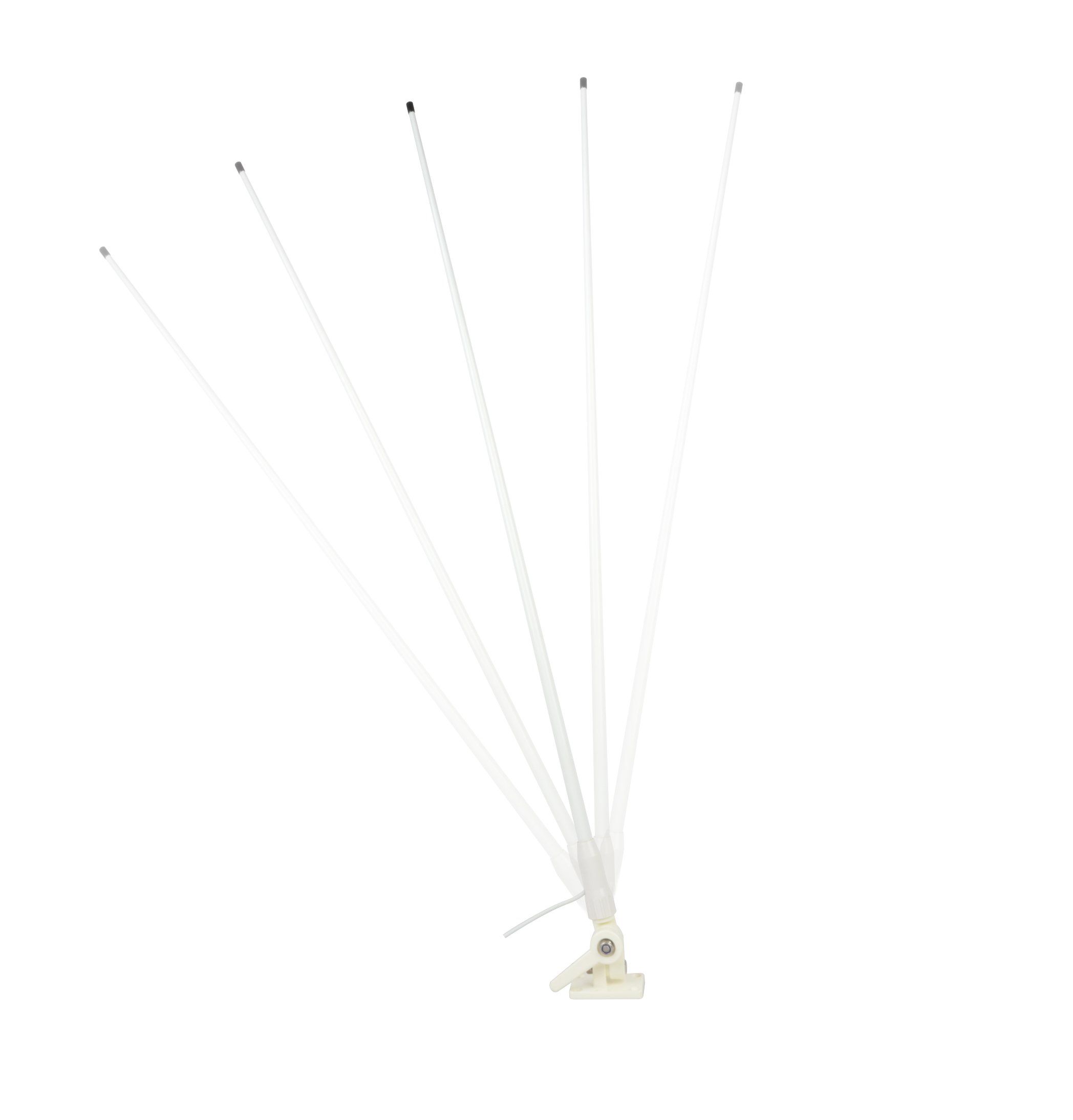

Fujian Jiasida Communication Tech Co., Ltd. >> 156-163MHz Marine Antenna, 3.5dB Gain

156-163MHz Marine Antenna, 3.5dB Gain

156-163MHz Marine Antenna, 3.5dB Gain
Price: US $ 21/Piece
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: TA-3-156E
Usage: Communication Antenna
Directionality: Omnidirectional Antenna
VSWR: <1.5
Material: Fiberglass

Product Description

Key Specifications/Special Features:


Electrical specifications:
Frequency range: 156-163MHz

  • VSWR: ≤1.5
  • Impedance: 50Ω
  • Gain: 3.5dB
  • Polarization: vertical
  • Maximum power input-watts: 100W
  • Horizontal beam width: 360º
  • Vertical beam width: 50º
  • Lighting protection: direct ground

Mechanical specifications:
  • Connector: SL16/N-male/FME
  • Coax supplied: RG-58C/U(white), 7m
  • Height: 1120±10mm
  • Radome material: fiberglass
  • Radiating element material: Cu




Our products have a 99.5% product acceptance rate

R&D team with over 30 years' expertise Advanced testing equipment

With 25 Years of Working Experience

Jiasida Communication is a high-technology company professionally engaged in the R&D, production and operation of communication antennas and passive devices.

Manned by Skilled Producers and Testers

We employ 10 members in our R&D team who have been engaged in the electronic communication industry for over 25 years. With skilled producers and testers, complete testing instruments and professional facilities, we devote ourselves to the development and production of all kinds of interphone antennas, vehicle antennas, omni antennas, power splitters, combiners and POI. We also provide personal services according to customers' specific requirements, and fully adopt advanced techniques from China and abroad. Thus, we continuously innovate, and endow our new products to own an identity.

R&D team with over 30 years' expertise provides LTETM, CB, VHF, UHF and GSM antennas and more

• Utilizing advanced testing equipment such as network analyzers, fi eld testers, and CNC and ultrasonic cleaning machines

• Step-by-step QC inspections

• Clients in the US, Australia, Europe, Asia and other countries and regions

• No MOQ; 3- to 5-day lead times

Contact Us Today

To learn more about our products and services, contact us today.
