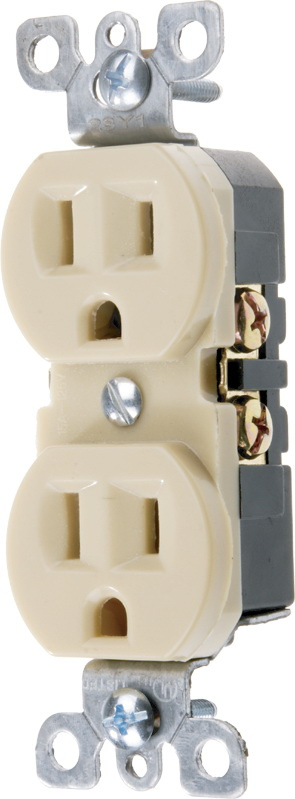

15A 125VAC, UL Listing Standard Duplex Receptacle

Name: 15A 125VAC, UL Listing Standard Duplex Receptacle
Brand: all-electronics-online.com
SKU: 688974042
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 0.28/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

SPECIFICATIONS
· Part No.: JCZ001
· Description: Standard Duplex Electrical Receptacle, Straight Blade, Residential Grade
· Color: White, Ivory, Almond, Black
· Rating: 15A, 125VAC
· NEMA: 5-15R
· Pole: 2
· Wire: 3
· Termination: Side/Back Push-in
· Face Material: Thermoplastic PC
· Body Material: Thermoplastic Nylon

CODE COMPLIANCE
· UL Listed 498, UL file #E310916
· ROHS comply

MATERIAL CHARACTERISTICS
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)

FEATURES
· Terminal screws accept up to No. 12 AWG copper or copper-clad wire
· Quickwire push-in terminals accept No. 14 AWG solid copper wire only
· Double-wipe power contacts for reliable conductivity and plug retention
· Impact resistant thermoplastic construction
· Heavy-gauge, rust resistant steel mounting strap
· Double-wipe ground contacts ensure long-term ground retention
· Tri-Drive ground, terminal and mounting screws ease installation
· Captive mounting screws
· Limited Two-Year Warranty

Prod Model:	JCZ001
Markets:	North America,South America,Mid East
Grounding:	Standard Grounding
Type:	Without Switch
Application:	Residential/General-Purpose
IP Rating:	IP20
Rated Current:	15A
Brand:	Lumex
Certification:	UL
Number Of Holes:	2 Pole, 3 Wire

Lumex is a specialized manufacturer of custom and standard electrical wiring devices, Founded in 1997, Lumex offers nearly 18 years of proven performance in producing superior quality products.

Quality is the founding principal of Lumex' manufacturing philosophy. Lumex is certified ISO 9001: 2008, Most of the electrical wiring devices in Lumex are UL, ETL and RoHS approved. All our products are 100% quality guaranteed.

Lumex incorporates the most advanced design and manufacturing technologies. All Lumex's products have been designed and prototyped for sales using the most advanced testing techniques and methods.

In nearly 18 years, Lumex has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.

Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality electrical wiring devices and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Lumex, we view solutions as the key to our continued growth and success.
