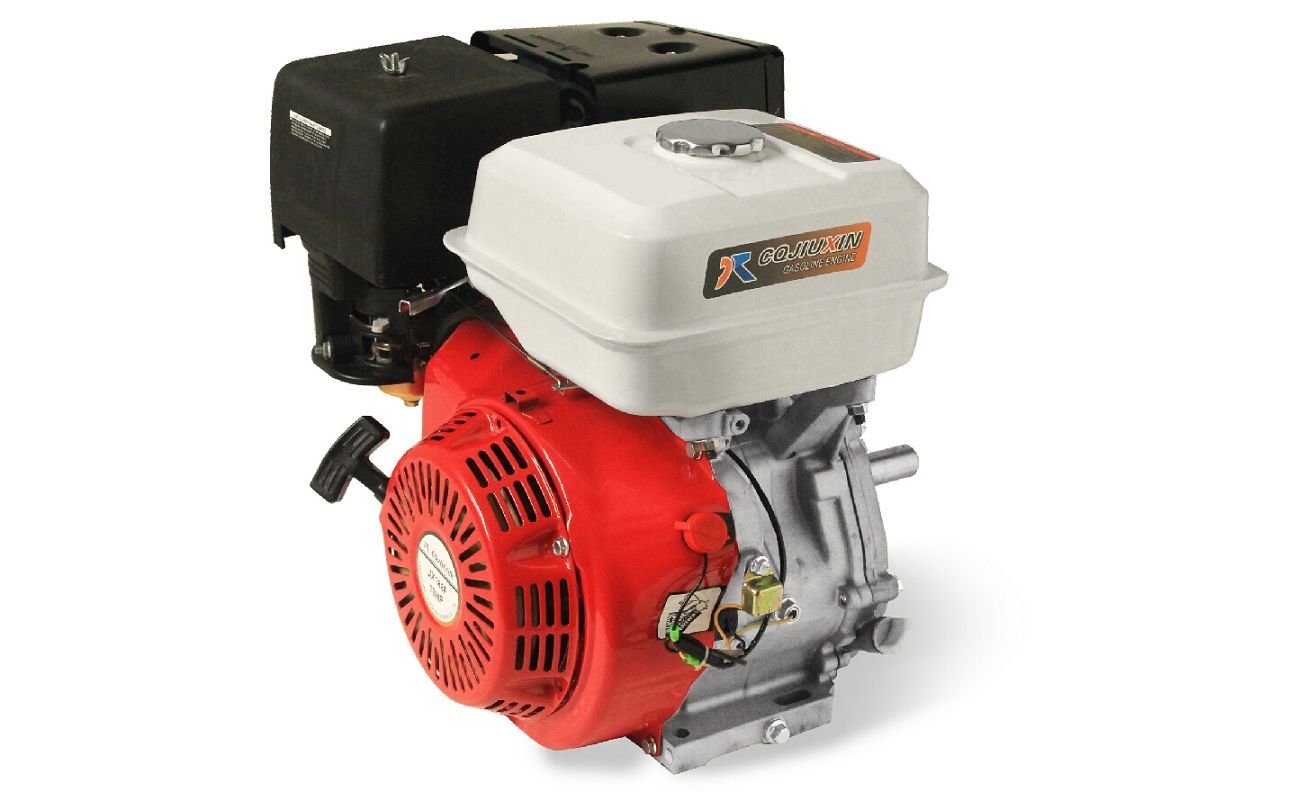

15HP High Quality Gasoline Engine for Power Productions

product description

Model	JX188F	JX190F	JX192F
Engine type	Air-cooled;4-stroke;OHV;single
Borexstroke(mm)	88X64(mm)	90X64(mm)	92X64(mm)
Displacement	389cc	407cc	412cc
Compression ratio	8:0:1	8:0:1	8:0:1
Max. Output	(13hp)9.6kW	(15hp)11kW	(16hp)12kW
rated output	(11.7hp)8.6kW	(13hp)9.6kW	(13hp)9.8kW
Max. Torque	26.5N.m	28N.m	28N.m
Ignition system	Transistor magneto
Starting system	Recoil /Electric
Engine oil system capacity	1.1L
Fuel capacity	6.5L
Min.Fuel Conssumption	325g/kw/h
Net weight(kg)	31kg
Air Cleaner	Semi-dry;Oil bath;Dual

company introduction

Chongqing Jiuxin Machinery Co.Ltd is a Chongqing Luqiao branch company which is located in Industrial Zone, Hengjie, Luqiao,Taizhou, Zhejiang,China, Jiuxin company was established in 2008 and professional in researching and manufacturing various gasoline engines, gasoline generators, gasoline water pumps, diesel engines, diesel generators ,diesel water pumps, garden machines, agricultural cultivators,construction machinery and so on. The company occupies 10000 square meters with fixed assets valued RMB50 million and more than 500 staffs, among which there are over 20 high intermediate technical personnel.Our annual turnover is more than RMB50 million. The products are famous and popular widely in the world, and sales network covers Europe,South and North America,Southeast Asia and Middle East areas and so on,our company can meet your diversified OEM demands.
We are expecting a win-win long term business cooperation with you.
