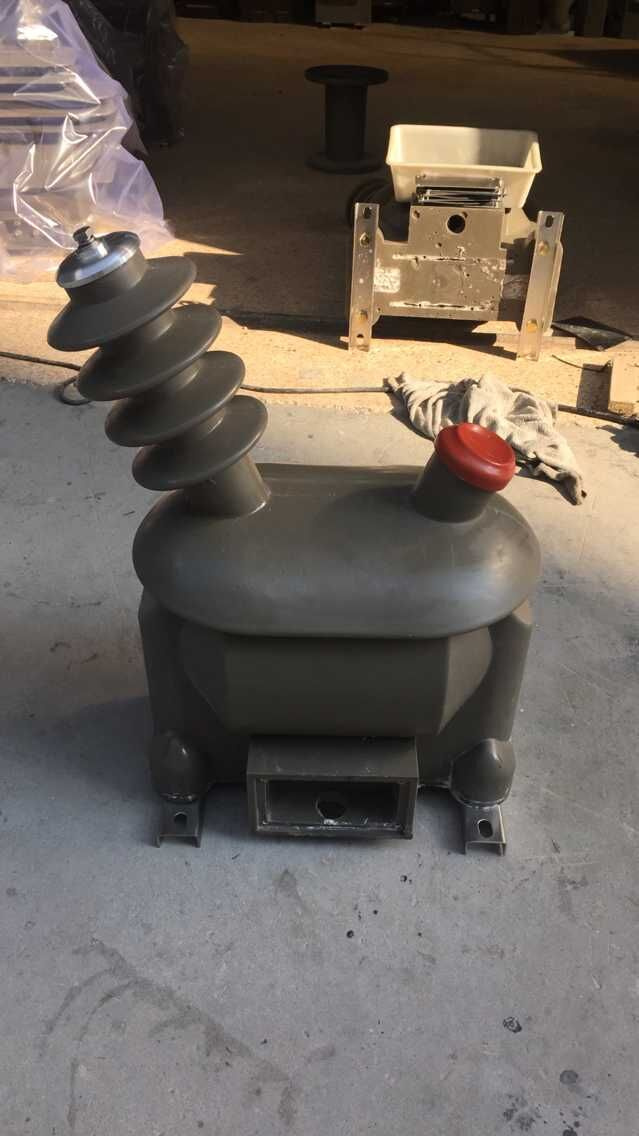

15kv (13.8KV) Pole Mounted Power Potential Transformer
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
JDZW |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
Product Description
SPECIFICATION OF TECHNICAL SPECIFICATIONS OF TRANSFORMER POTENTIAL 13.8 KV
|
| | |
| TECHNICAL CHARACTERISTICS OF POWER POTENTIAL TRANSFORMER 13.8 KV |
| ITEM | DESCRIPTION | UNIT | CHOSEN TECHNICAL SPECIFICATIONS | OFFERED TECHNICAL SPECIFICATIONS |
| 1 | DESCRIPTION OF EQUIPMENT | | | |
| 1.1 | Quantity | | 3 | 3 |
| 1.2 | Brand | | Specify | HEMG |
| 1.3 | Model | | Specify | JDZW |
| 1.4 | Origin | | Specify | CHINA |
| 1.5 | Year of manufacturing | | 2014 | 2015 |
| 2 | ENVIRONMENTAL CONDITIONS OF OPERATION | | | |
| 2.1 | Maximum ambient temperature | or C | 40 | 40 |
| 2.2 | Minimum ambient temperature | or C | 15 | 15 |
| 2.3 | Maximum temperature average daily | or C | 30 | 30 |
| 2.4 | Average relative humidity | % | 85 | 85 |
| 3 | Installation sites | | OUTDOOR | OUTDOOR |
| 4 | CHARACTERISTICS OF TRANSFORMERS | | | |
| 4.1 | Voltage Nominal primary (phase-neutral) | kV | 13. 8√3 | 13. 8√3 |
| 4.2 | B.I.L | kV | ≥95 | ≥95 |
| 4.3 | NOMINAL OUTPUT VOLTAGE | | | |
| | (a) secondary winding | V | 120 | 120 |
| 4.4 | VOLTAGE FACTOR | | | |
| | (a) continuous operation | % | 120 | 120 |
| | (b) 30 s | % | 190 | 190 |
| 4.5 | NOMINAL LEVELS OF INSULATION AT SEA LEVEL | | | |
| | (a) industrial frequency dielectric, one minute | kV rms | ≥38 | ≥38 |
| | (b) where impulse dielectric | kV peak | ≥95 | ≥95 |
| 4.6 | RATED OUTPUT CAPACITY (BURDEN) AND ACCURACY CLASS | | | |
| | (a) secondary winding | | | |
| | Load (burden) minimum | VA | 60 | 60 |
| | Precision | CI | 0.2 IEC | 0.2 IEC |
| 4.7 | Minimum distance contouring (creepage) Insulation | mm | ≥400 | ≥400 |
| 4.8 | Number of the bushings | U | 1 | 1 |
| 4.9 | Material of the bushings | | Resin | Resin |
| 4.10 | Board for connection of terminals of the three phases | | YES | YES |
| 4.11 | Suitable for cable connector | MCM | 1 0 - 500 | 1 0 - 500 |
| | | | | | |
