Product Description
General
KYN28 indoor metal-clad withdrawable switchgear(hereinafter short as switchgear)is a complete power distribution device for 3.6~24kV,3-phase AC 50Hz,single-bus and single-bus sectionalized system. It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system. The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker, it can also be used with VD4 from ABB,3AH5 from Siemens domestic ZN65A,and VB2 from GE, etc.,it is truly a power distribution device with good performance.
In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.
Service environment
a) Air temperature: Maximum temperature: +40ºC; Minimum temperature:-15ºC
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 1000M.
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake

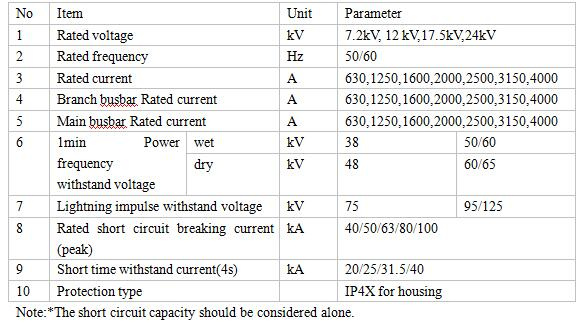

Main technical specifications

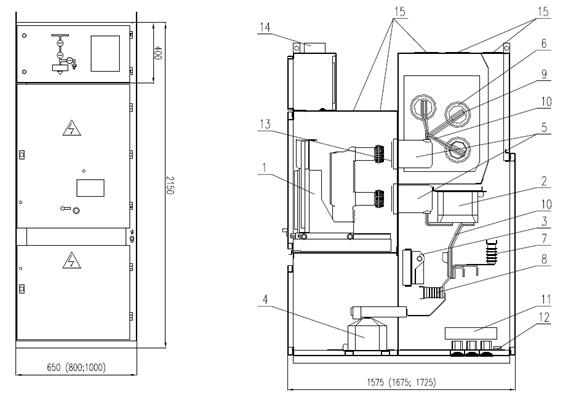

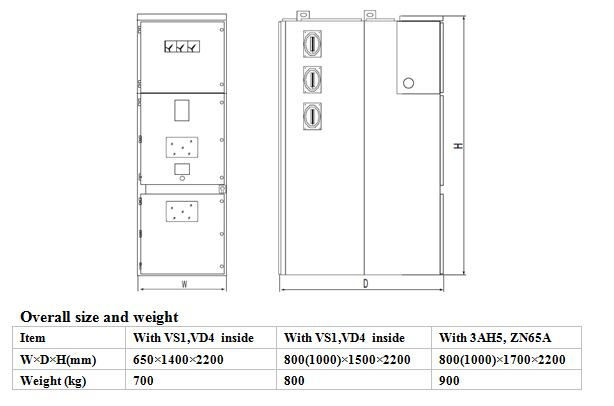

Structure & Basic Components of Switchgear

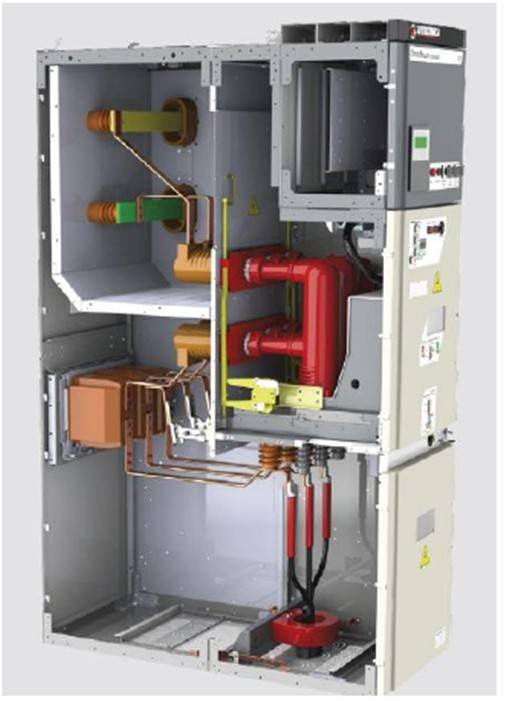

Structure Features

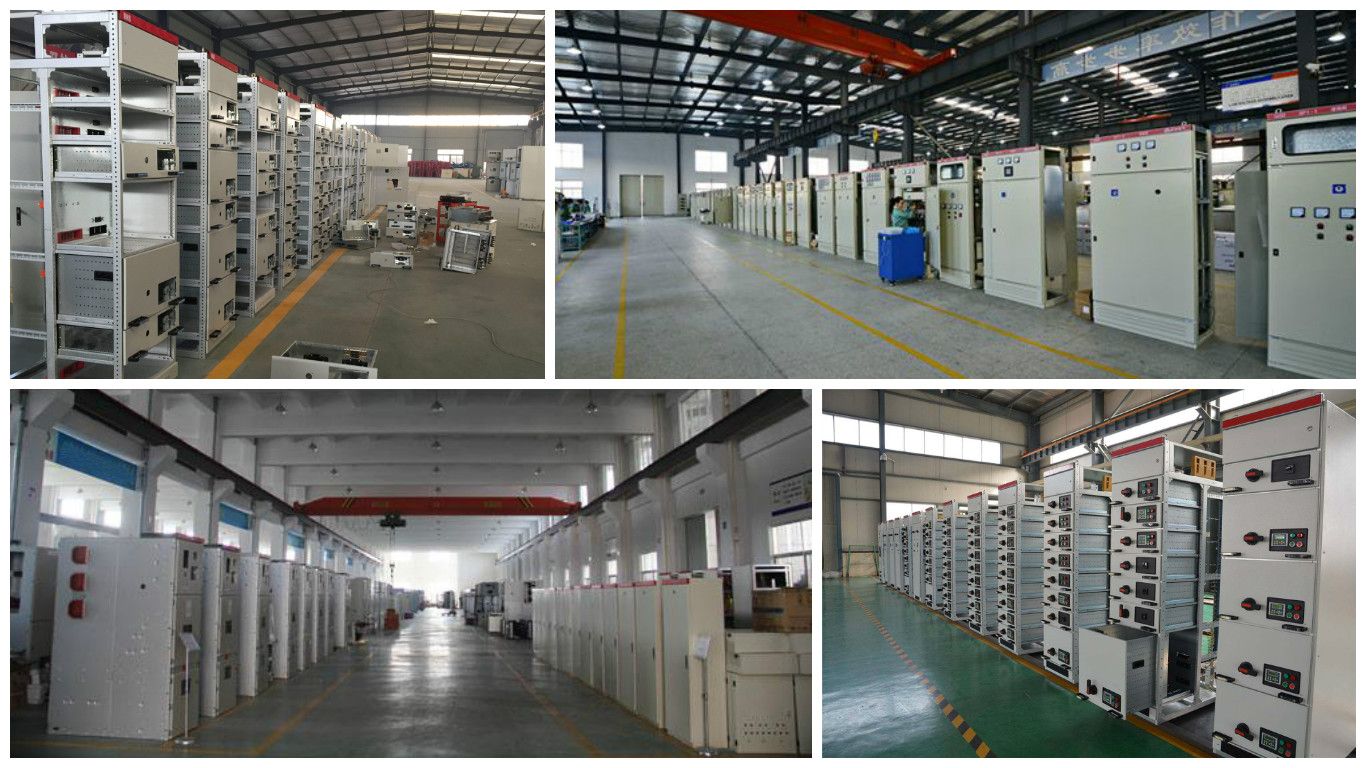

Company Information
Farady is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to
SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.
All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.
The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.
We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in China, and contributes its share to the transformation from the Made in China into the Invented in China.
Our services
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long quality waranty ensure you can buy without hesitate
Packaging
FAQ
1,Why I buy Farady switchgear
After compare quality,delivery and price you will find out answer
2,How is your farady electrical switchgear waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
