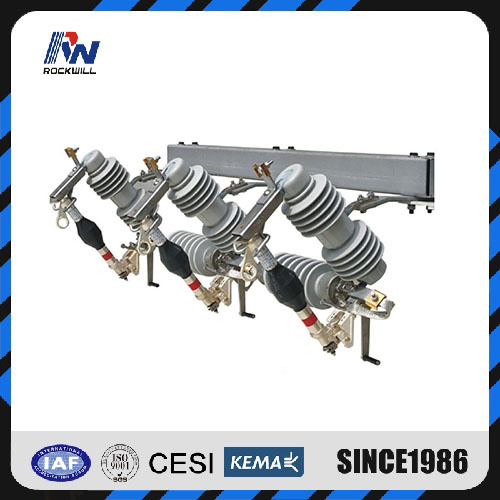

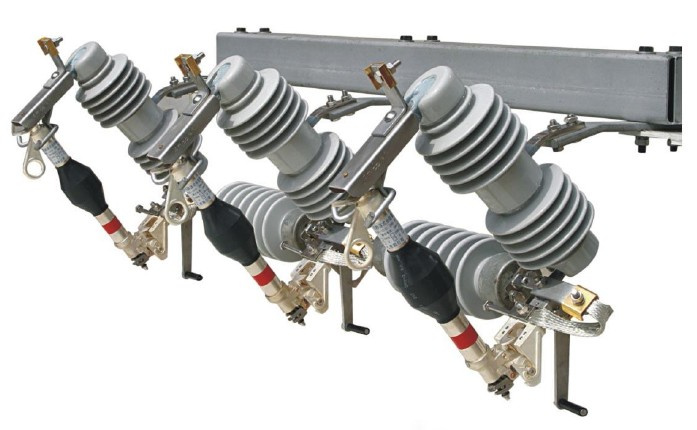

OverviewThe sectionalizer is applied in three phase power system with AC 50Hz and rated voltage 10-40.5kV. It is installed on distribution overhead line to isolate fault when corporate with recloser or circuit breaker. When fault occurs on the line, the faults current reaches or exceed preset threshold value, the sectionalizer can memorize the tripping times of upstream recloser. When it reaches preset times, it drops down to trip automatically.
Sectionaliser will drop down to trip automatically on the condition as given below:
First, the faults current exceeds presetting pickup current. Next, the counting time reaches presetting value (1, 2, 3 or 4). Third, the circuit loses voltage and the current is lower than 300mA. And then the Sectionlizer will trip automatically when the aforesaid conditions occur simultaneously. If any of aforesaid conditions doesn't occur, the Sectionlaizer will not trip automatically.
This sectionalizer uses micro-computer and operating trip mechanism and does not require external auxiliary supply.

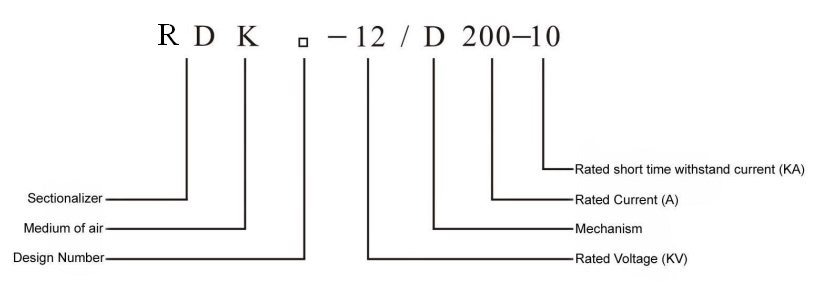

The catalog number system:
Technical data
S/N |
name |
unit | RDK10-12/D315 |
RDK-12/D200 | RDK
-40.5/D200 |
| 1 | Rated voltage | KV | 12 | 12 | 40.5 |
| 2 | Rated current | A | 315 | 200 | 200 |
| 3 | Rated frequency | Hz | 50 | 50 | 50 |
| 4 | Pickup current rating | A | 8~500A | 8~400A | 8~400A |
5 | Short time withstand
current(RMS) |
KA |
10 |
10 |
10 |
| 6 | Short circuit withstand time | s | 4 | 1 | 1 |
7 | Short time withstand current
(PEAK) |
KA |
25 |
16 |
20 |
| 8 | Counting time | time | 1, 2, 3 | 1, 2, 3,4 | 1, 2, 3,4 |
| 9 | Max memory time | S | 15 | 20 | 20 |
| 10 | Max reset time | S | 30 | 20 | 20 |
11 | Permissible deviation of pick up
current for memory rest time |
% |
±10 |
±10 |
±10 |
| 12 | Opening time | ms | ≤180 | ≤200 | ≤200 |
| 13 | Main circuit resistance | μ Ω | ≤300 | ≤400 | ≤400 |
| 14 | Mechanic life | Time | 500 | 500 | 500 |
| 15 | Horizontal pulling force of terminal | N | 250 | 250 | 250 |
| 16 | Manual open moment | N·m | ≤4 | -- | -- |
| 17 | Manual open force | N | -- | ≤120 | ≤120 |
| 18 | BIL(phase to ground) | KV | 75 | 110 | 185 |
| 19 | BIL(between gap) | KV | 85 | 110 | 220 |
20 | PFWV
(phase to ground) | dry |
KV | 42 | 55 | 95 |
| wet | 30 | 45 | 80 |
21 | PFWV
(between gap) | dry |
KV | 48 | 55 | 110 |
| wet | 34 | 45 | 95 |
| 22 | PFWV of control circuit | KV | 2 | 2 | 2 |
| 23 | Dirty proof grade | Class | | | |
| 24 | Ice proof thickness | mm | ≤7 | ≤1 | ≤1 |
25 | Pickup current (four classes) and
Counting time can be set | | -- |
YES |
YES |
26 | Mechanical interlocking for 3 phase devices and automatic reset | | -- |
YES |
YES |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.

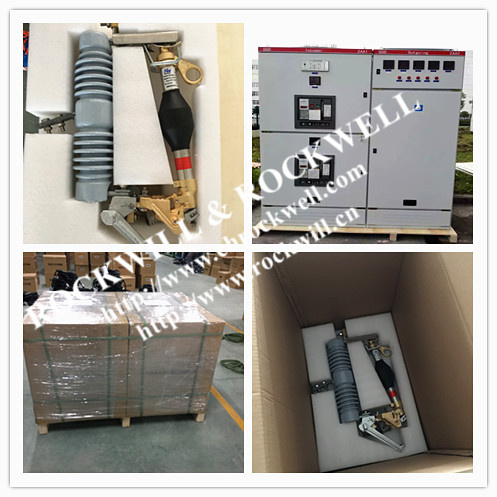

3.The standard of package: Usually use strong plywood case for protection.
