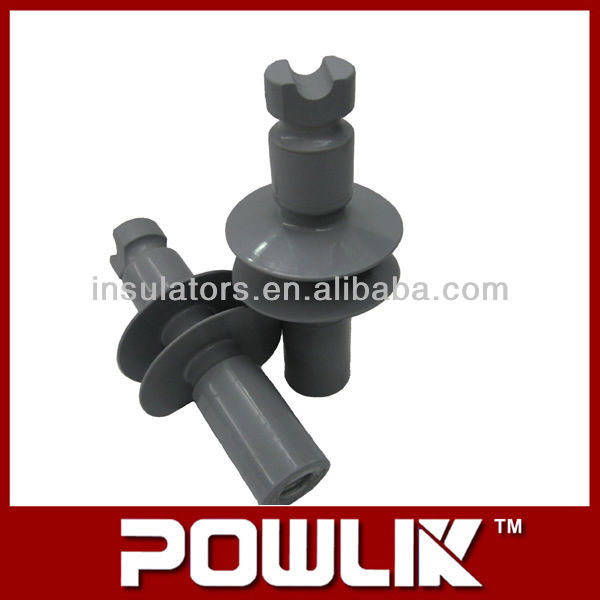

15kv High Quality Composite Pin Insulator

Name: 15kv High Quality Composite Pin Insulator
Brand: all-electronics-online.com
SKU: 774972275
Availability: InStock
Rating: 4.6 (95 reviews)

Price:	US $ 5.88/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

15KV High Quality Composite Pin Insulator

1.Rated Voltage: 15KV
2. Mechnical Loading: 70KN
3.Color: Grey
4. It can be ordered according to customer's drawings.

Type	Rated bent withstand load(kN)	Structure height (mm)	Max. diameter of insulating shed (mm)	Min. Electric arc distance (mm)	Min nominal creepage distance (mm)	Diameter of end thread (mm)	Rated voltage (kV)	Highest voltage of equipment (kV)	1min power frequency wet withstand voltage not less than (kV)	Full wave lightning impulse withstand voltage(peak value) not less than (kV)
1	FPW-10/2T16	2	161	146	105	210	16	10	12	28	75
2	FPQ₁W-10/4T20	4	195	146	127	300	20	10	12	40	90
3	FPQ₂W-10/3T20	3	260	146	184	460	20	10	12	50	110
4	FPS-105/5	5	250	90	180	380	20	10	12	42

Prod Model:	FPQ-15/2T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Hybrid Insulation
Thermal Rating:	250 250
Mechnical Grey:	70kn
Rated Voltage:	15kv
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Grey
Brand:	Powlik

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
