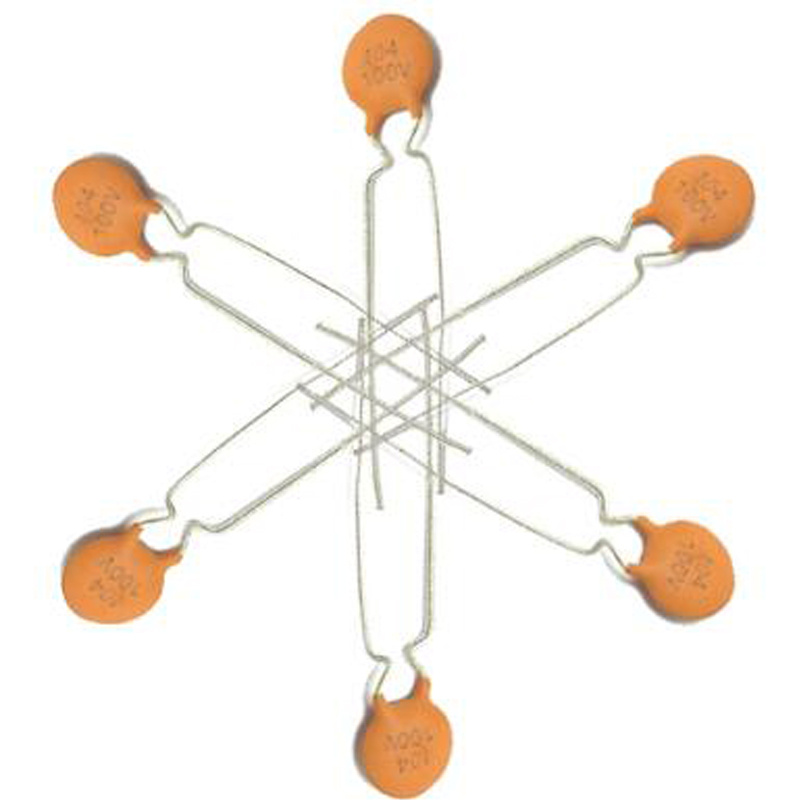

15PF/50V Npo Disc Ceramic Capacitor
| Price: |
US $ 0.005-1/Piece |
| Min Order: |
50000/Piece |
| Pay Type: |
T/T |
TMCC01 Ceramic Disc Capacitor
1.Features and uses
Temperature compensation dics ceramic capacitors have a ceramic that is formulated to provide a predictable linear capacitance change versus temperature .This predictable linear capacitance change allows the temperature compensating disc capacitors to be used in circuits such as tuned circuits .
2.Standard of application
GB5971 detailed specification for electronic components fixed ceramic capacitors type TMCC01
3.specifications
| No | Item | specification |
| 1 | Operating temperature | -25 ~ 85 ºC |
| 2 | capacitance(Cr)and quality factor
testing condition | 25 ºC ,1Vrms ,1MHZ
(≥1000PF , 1KHZ) |
| 3 | Quality factor (Q) | Cr < 30pf , Q≥400+20Cr
Cr ≥30pf ,Q≥1000 |
| 4 | Rated voltage(Ur) | 50,100VDC |
| 5 | Voltage proof | 2.5Ur |
| 6 | Insulation resistance (IR) | At rated voltage,IR ≥10000MΩ |
| 7 | Temperature coefficient | COH , SL |
4.Capacitance and dimension chart
Rated
voltage
(VDC) | Dimension(mm) | Temperature coefficient group | Lead size(mm) | Taping style |
Diameter
Dmax | Thickness
Tmax | COH(NP0) | SL(P100-1000) | Space
F | Diameter
d |
| Nominal capacitance(pf) |
50/100 | 5.0 |
3.0 | 0.5~56 | 0.5~220 | 2.5±0.5
5.0±1.0
| 0.5±0.05
0.6±0.06
| F |
| 5.5 | 62~75 | 330~390 |
| 6.5 | 82~110 | 470~560 |
| 7.5 | 120~160 | 680~820 | 5.0±1.0
|
| 8.5 | 180~200 | 1000 |
| 10.0 | 200~300 | 1200 |
| 11.0 | 330~360 | |
| Capacitance toletance | ±0.25pf ,±0.5pf,
±5%,±10% | | | |
Characteristics:
Low dissipation factor, high reliability factorSmall volume, low remnant inductanceMany types of temperature characteristics
| Prod Model: |
TMCC01 |
| Rated Voltage: |
100V |
| Pitch: |
5mm |
| Color: |
Mud |
| Application: |
Transimitters |
| Package Type: |
Through Hole |
| Type: |
Ceramic Capacitor |
| Electrolyte: |
Ceramic Capacitor |
| Capacitance: |
10NF |
| Filter: |
Ceramic Capacitor |
