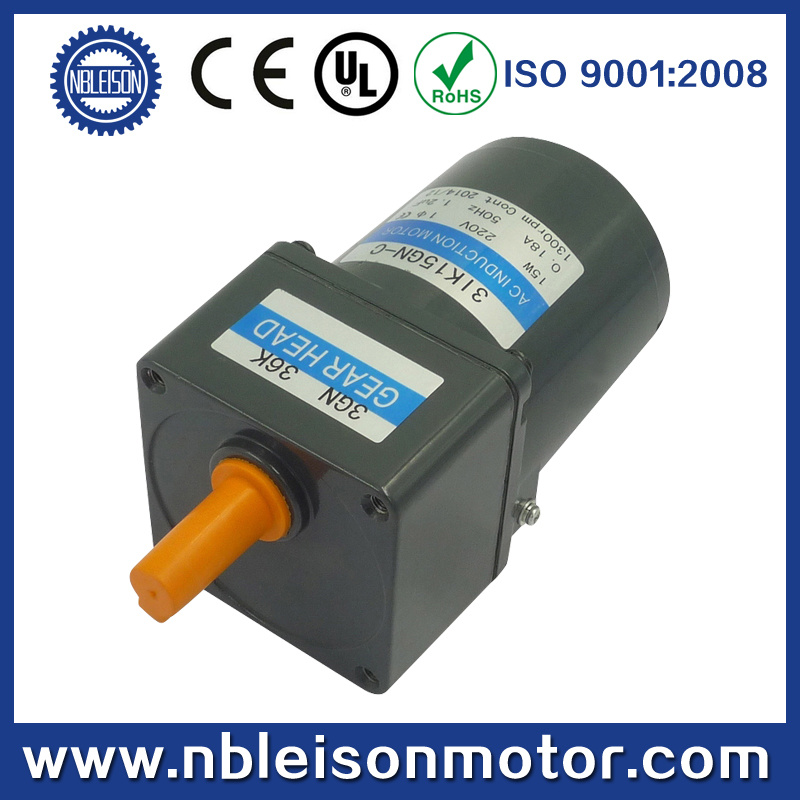

15W Low Rpm AC Induction Gear Motor

Name: 15W Low Rpm AC Induction Gear Motor
Brand: all-electronics-online.com
SKU: 678526362
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 23.1-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Induction motor, AC Gear motor, Induction Gear motor

Specification:
1) Dimensions: 70X70mm
2) Power: 15W(6-140W For choose)
3) Voltage: 110V, 220V, 380
4) Speed: 1300, 1350, 2700, 2800rpm
5) Reduction ratio: 3~ 200K & 250~ 2000K
6) Application: Medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery,

The datasheet and price range only typical data for reference, Gear motor's price are usually decide by Motor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or Drawing.

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25
50HZ	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60
	Allowable Torque	N. m	0.31	0.38	0.53	0.64	0.79	0.95	1.06	1.32	1.59	1.90	1.90	2.37
	Allowable Torque	kgf. cm	3.2	3.9	5.4	6.5	8.1	9.7	10.8	13.5	16.2	19.4	19.4	24.2

Frequency	Reduction Ratio		30	36	40	50	60	75	90	100	120	150	180	200
50HZ	Output Shaft Speed	r/min	50	41	37	30	25	20	16	15	12	10	8	7.5
	Allowable Torque	N. m	2.85	3.42	3.81	4.28	4.90	4.90	4.90	4.90	4.90	4.90	4.90	4.90
	Allowable Torque	kgf. cm	29.1	31.9	38.8	43.6	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0

Prod Model:	3IK15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Output Power:	15W
Insulation Class:	Class B
Using Teperature:	-10°- +40°
Using Humidity:	≤85%
Number Of Stator:	Single-Phase
Operating Speed:	Low Speed
Application:	Universal
Casing Protection:	Protection Type
Rotor Structure:	Winding Type
