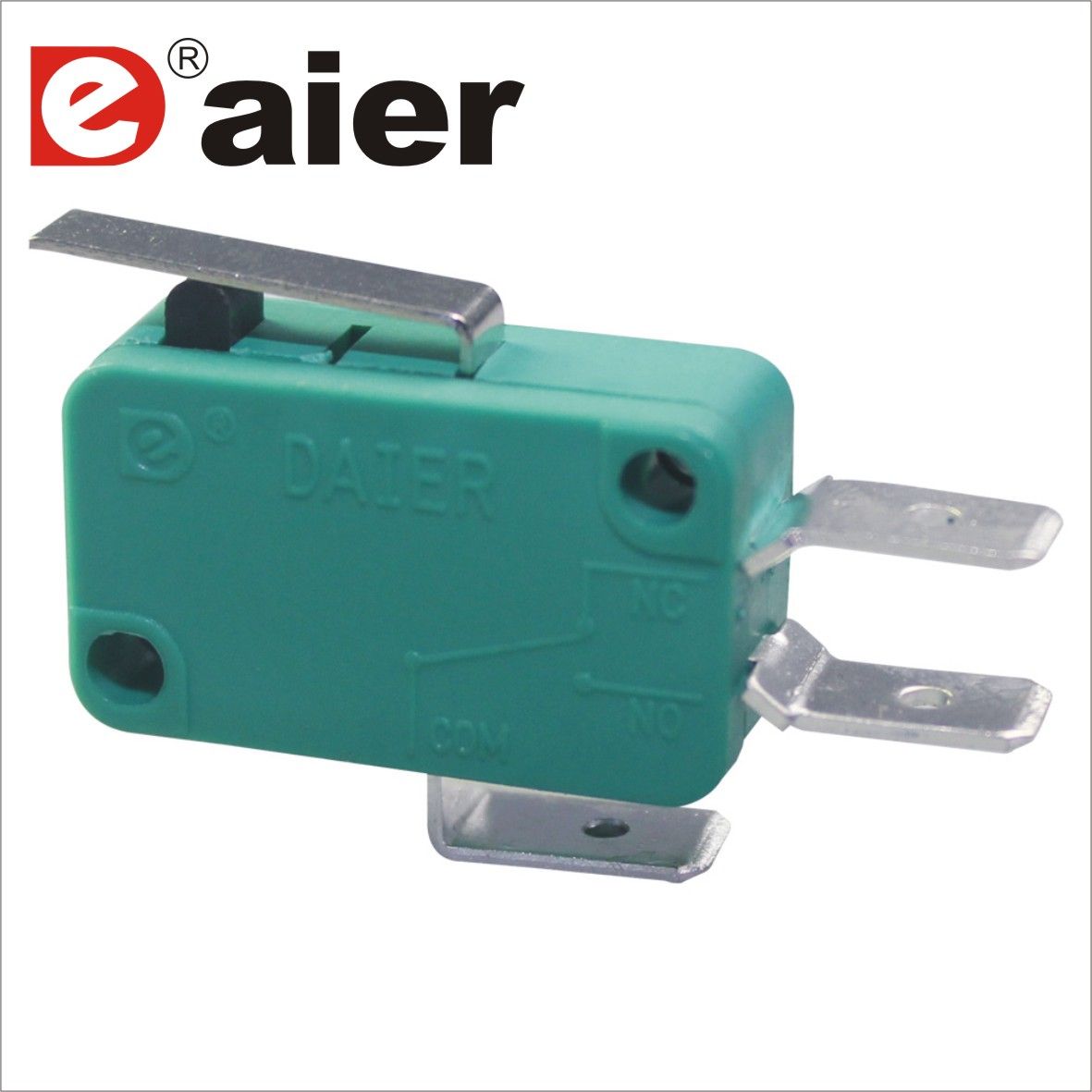

16A 250V Long Pluger Magnetic Micro Switch
| Price: |
US $ 0.18-0.27/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
16A 250V Long Pluger Magnetic Micro Switch---micro switch
---It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc
·PRODUCT DESCRIPTION
| Rating: | 16A 250VAC/ 20A 125VAC |
| Circuit: | Z: SPDT
T: SPST-NO(Normally open)
D: SPST-NC(Normally close) |

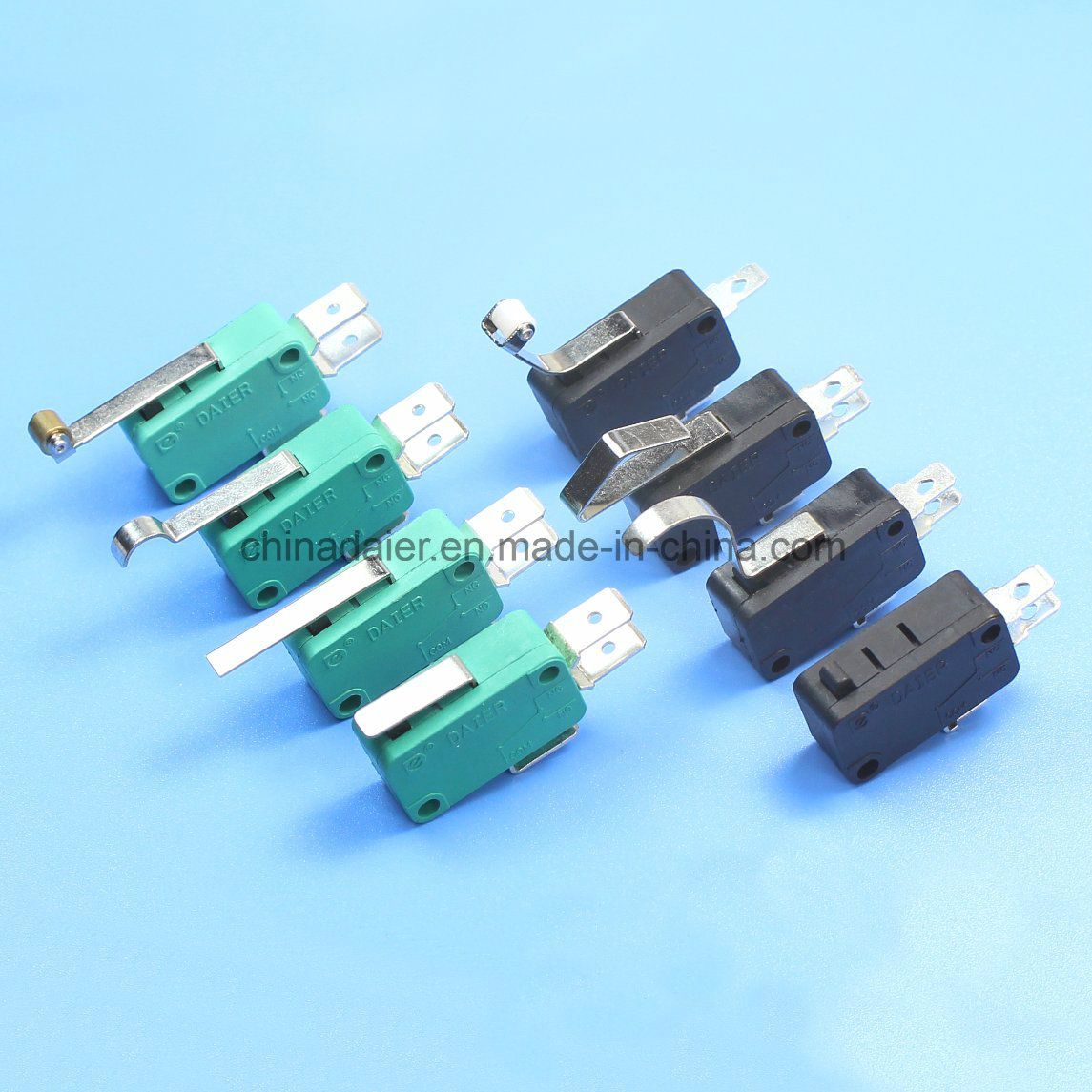

| Actuator Forms: | 1: No Lever
2: Short Lever
3: Middle Lever
4: Long Lever
5: Arc Lever
6: Short Roller Lever
7: Long Roller Lever |
| Terminal Type: | A: 6.35x0.8mm Terminal
B: 4.8x0.8mm Terminal
C: 4.8x0.5mm Terminal
D: Left Side PCB Terminal
E: Screw Terminal
F: Sloder Terminal
G: Right Side PCB Terminal |
| Operating Force: | 050: 0.5N
100: 1.0N
150: 1.5N
200: 2.0N
300: 3.0N
400: 4.0N |
| Available Color: | Black, Green |
· SPECIFICATION | TYPE | Equipment micro switch |
| Contact Resistance | ≤50 mΩ |
| Dielectric intensity | ≥1000V AC/Min |
| Life | Mechanical≥100,000cycles;
Electrical≥10,000cycles |
| Insulation Restance | ≥100MΩ(500VDC) |
| Operating Temperature | -25ºC~+75ºC |
| Operating Speed | 1mm~500mm(related with actuator forms) |
| Operating frequency | Mechanical 60cycles/min; Electrical 25cycles/min |
| Vibration resistance | 10~55Hz,1.5mm Double amplitude |
| Shock resistance | Malfunction:300/s²(approx.30)max |
| Test voltage | AC 600V,50/60Hz,1min |
| Certificate | CE ,CQC |

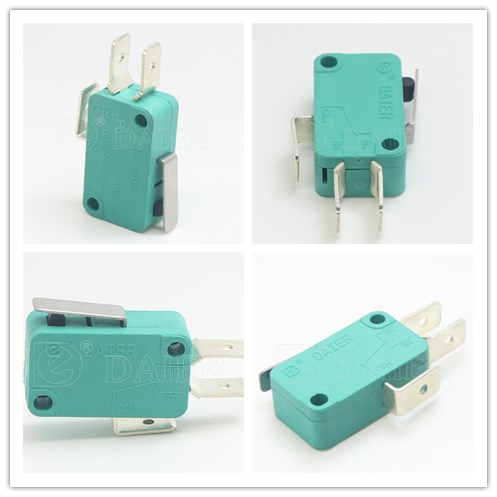

· PRODUCT SHOW
· SHIPPING & PAYMNET
Shipping Detail: Ship worldwide by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment Detail: Paypal, T/T, Western union, MoneyGram, or other methods.
· ADVANTAGE
| NO.1 | CE, TUV, CQC,CCC,ISO9001 Certificate |
| NO.2 | More than 10 years manafacture! |
| NO.3 | 80% of our products are exported to Europe, North and South America |
| NO.4 | LOWER MOQ |
| NO.5 | Strong technological cpacity, compete production testing equipment |
· COMPAY INFORMATION
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of rocker switch, micro switch, push button switch, aluminum box, knob, footswitch, DC jack, potentiometer, rotary switch and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.

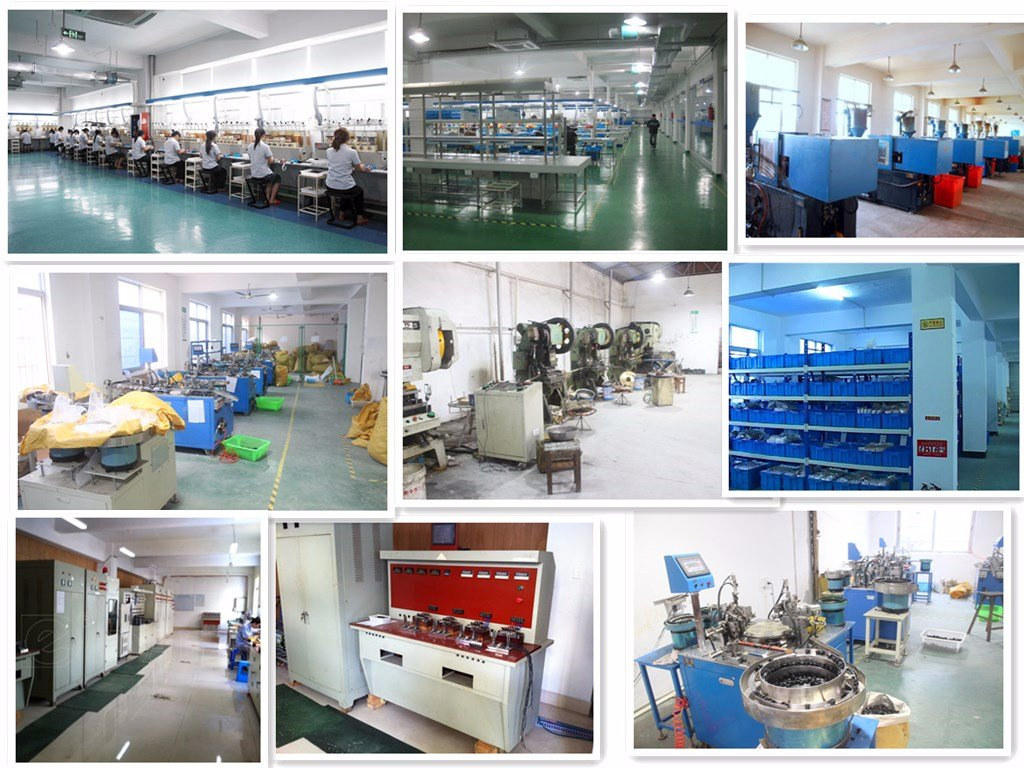

· OUR FACTORY
· CERTIFICATES

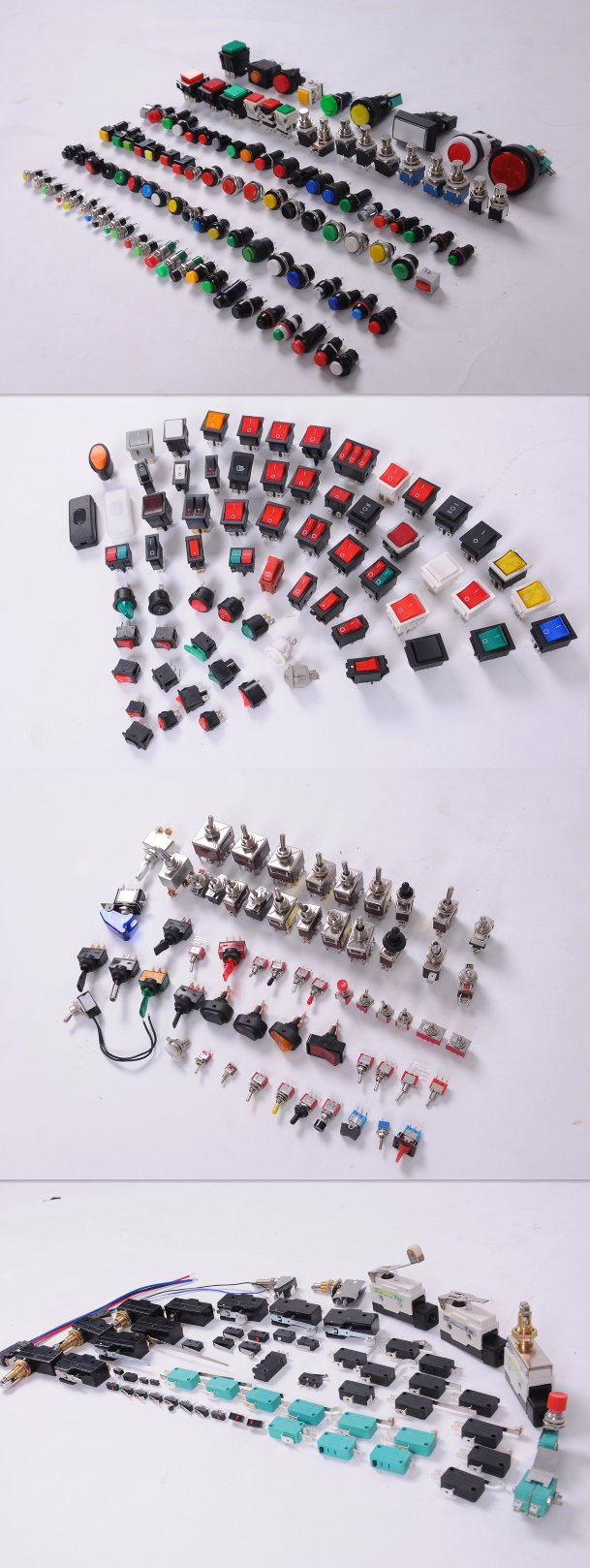

· ANOTHER PARTS
· OUR SERVICE
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
· FEEDBACK
* We greatly appreciated your positive feedback and will do the same.
* Please kindly contact us before you decide to leave any neutral or negative feedback.
* We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
· FOR ATTENTION
Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
· CONTACT US | Contact | Angel |
| Company | Yueqing Daier electron co.,ltd. |
| Tel | +0086-577 27870727 |
| Web | www.chinadaier.com |
With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers!!
| Prod Model: |
KW1-103-2 |
| Model Number: |
Kw1-103-2 |
| Rating: |
16A 250VAC/ 20A 125VAC |
| Lever: |
Short Lever |
| Dimension: |
22.2X10.3mm |
| Color: |
Black&Green |
| Terminal: |
6.35X0.8mm or 4.8X0.8mm |
| Circuit: |
Spdt |
| Insulation Resistance: |
250VDC 100 Ohm Min |
| Free Samples: |
Yes |
| Certifications: |
ISO9001, UL, CCC, RoHS, etc. |
| Pressing Type: |
Short Arm |
| Protection: |
Waterproof |
| Size: |
Normal Size |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Multi Joint Type |
| Brand: |
Daier |
| Certification: |
TUV |
Yueqing Daier Electron Co., Ltd. is a professional manufacturer of electromechanical switches in Yueqing, China. Yueqing is famous and ranked as "the city of electronics of China", so we share the best electronics resources and talents, and have excellent logistics chains too. It will only take us 40 minutes to Wenzhou airport, 3 hours to Ningbo port and 4 hours to Shanghai port.
We are engaged in producing 9 categories and about 2, 000 models of pushbutton switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps, AC sockets and etc. Our most competitive products are KCD series rocker switches. Most of our products have passed safety certifications as UL, cULus, VDE, CSA, TUV, CE, NEMKO, SEMKO, DEMKO, DEMKO, CCC, CQC, ENEC, and KEMA. Our products can be made of RoHS compliant materials too.
50% of our products are exported to Europe, the Middle-East, North-Africa, Asia, North and South America. We satisfy all our customers with advanced products, competitive prices, fast delivery and one-step service.
Our factory covers an area of over 5, 000 square meters, having a total staff of over 100 members. 20% of our staff are graduated from colleges and 3% of them are senior engineers. We have strong technological capacity, complete production testing equipment and a perfect mould processing center.
With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it's our mission to boost our customer's business, and then our customers will reward us with leadership sales and long-term relationships.
Join us, and we will be your best choice!
