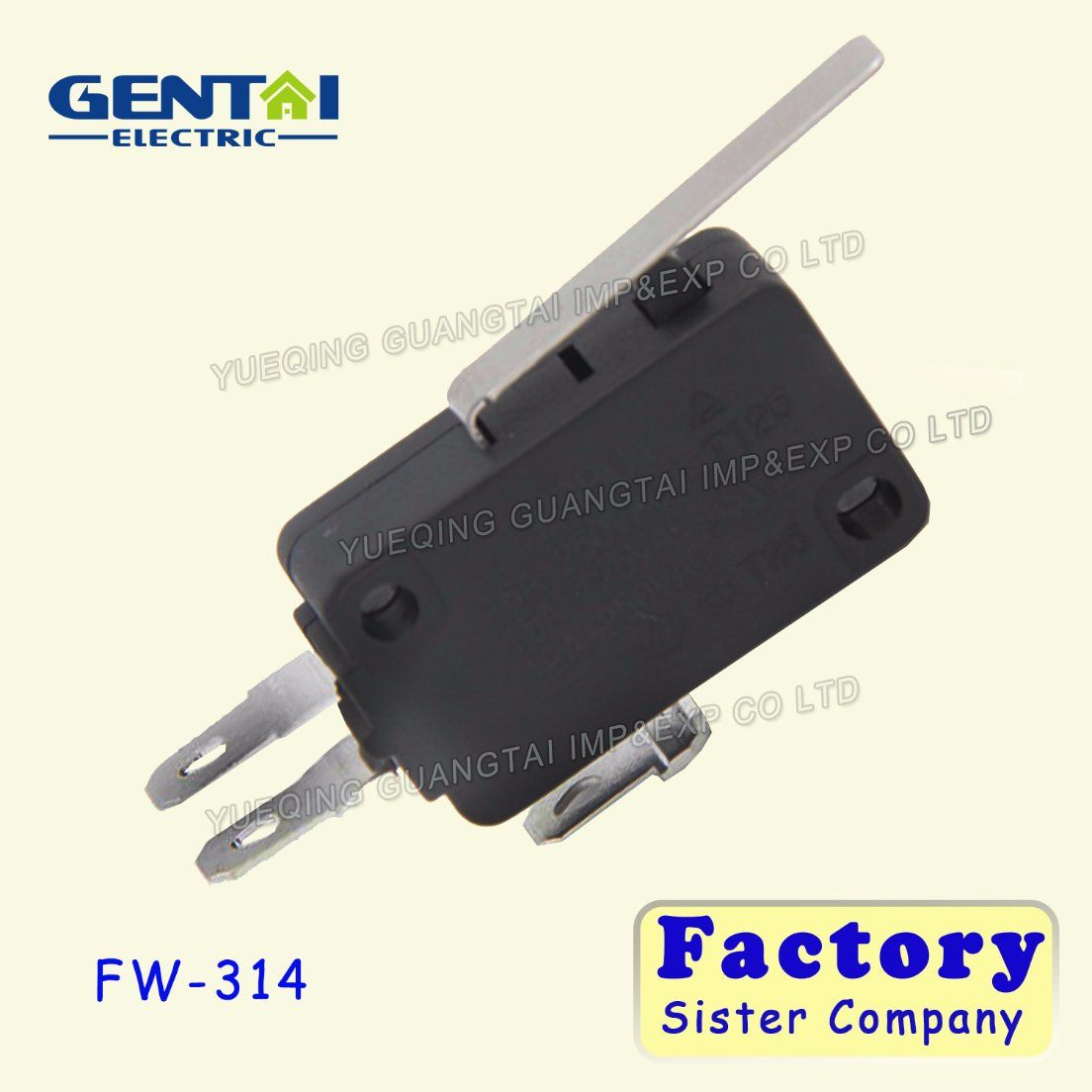

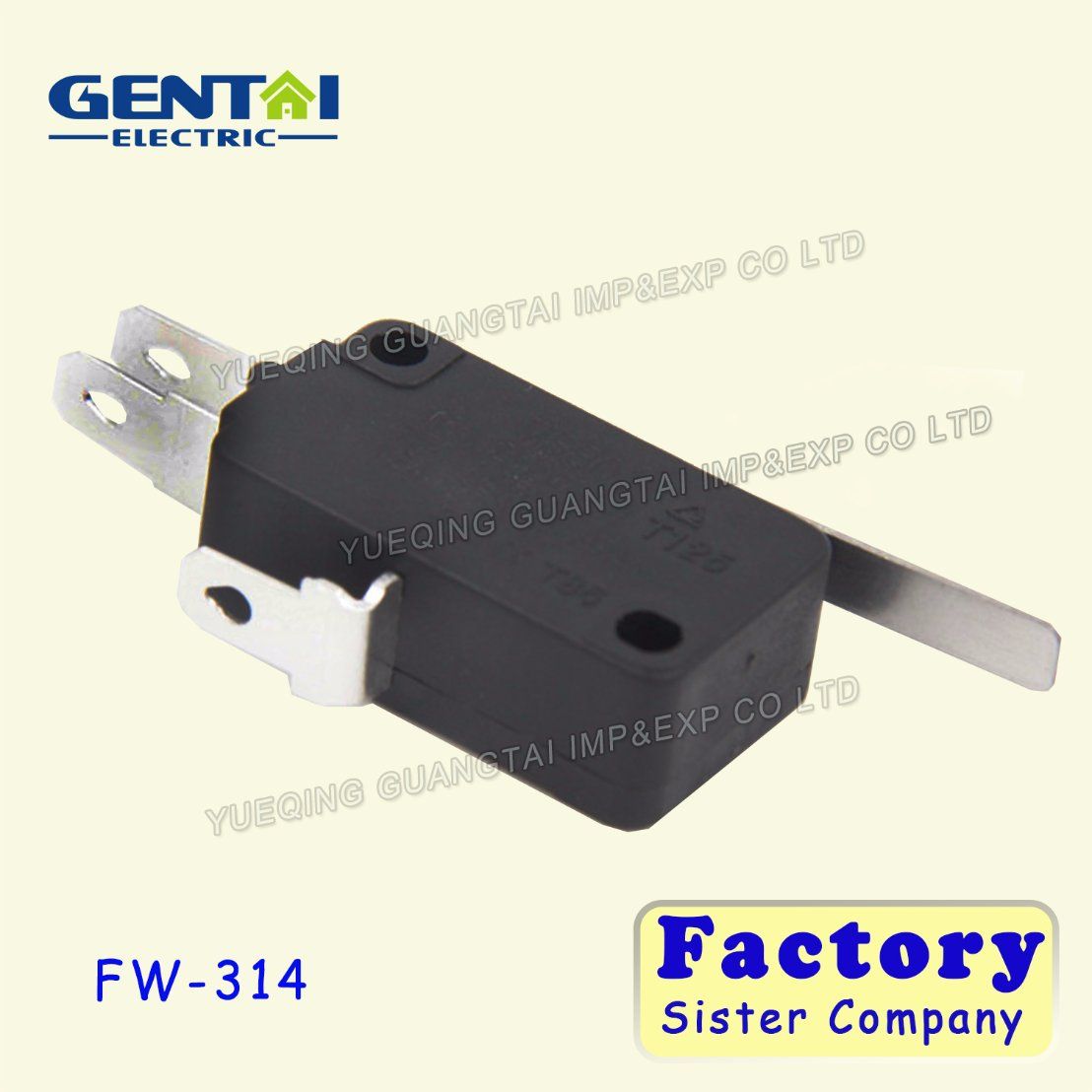

16A/250V T85 Push Button Micro Switch

16A/250V T85 Push Button Micro Switch
Price: US $ 0.21-0.22/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FW-314
Pressing Type: Push-Button
Protection: Waterproof
Size: Normal Size
Brand: Gental

Product Description

16A/250V t85 push button micro switch Features:

Rating

16A 250VAC 12A 250VAC/15A 125V

Function

ON-OFF

Material

Nylon PA66

Contact Resistance

≤50mΩ

Withstand Voltage

1500VAC(50-60Hz)1min

Solder Ability

230 ±10ºC/3±1S

Terminal  Strength

80N  for 1min

Operating Force

5~12N

Electrical Life

10000 Cycles

Insulation

≥100 mΩ

Dielectric Intensity

≥1800VAC/3S

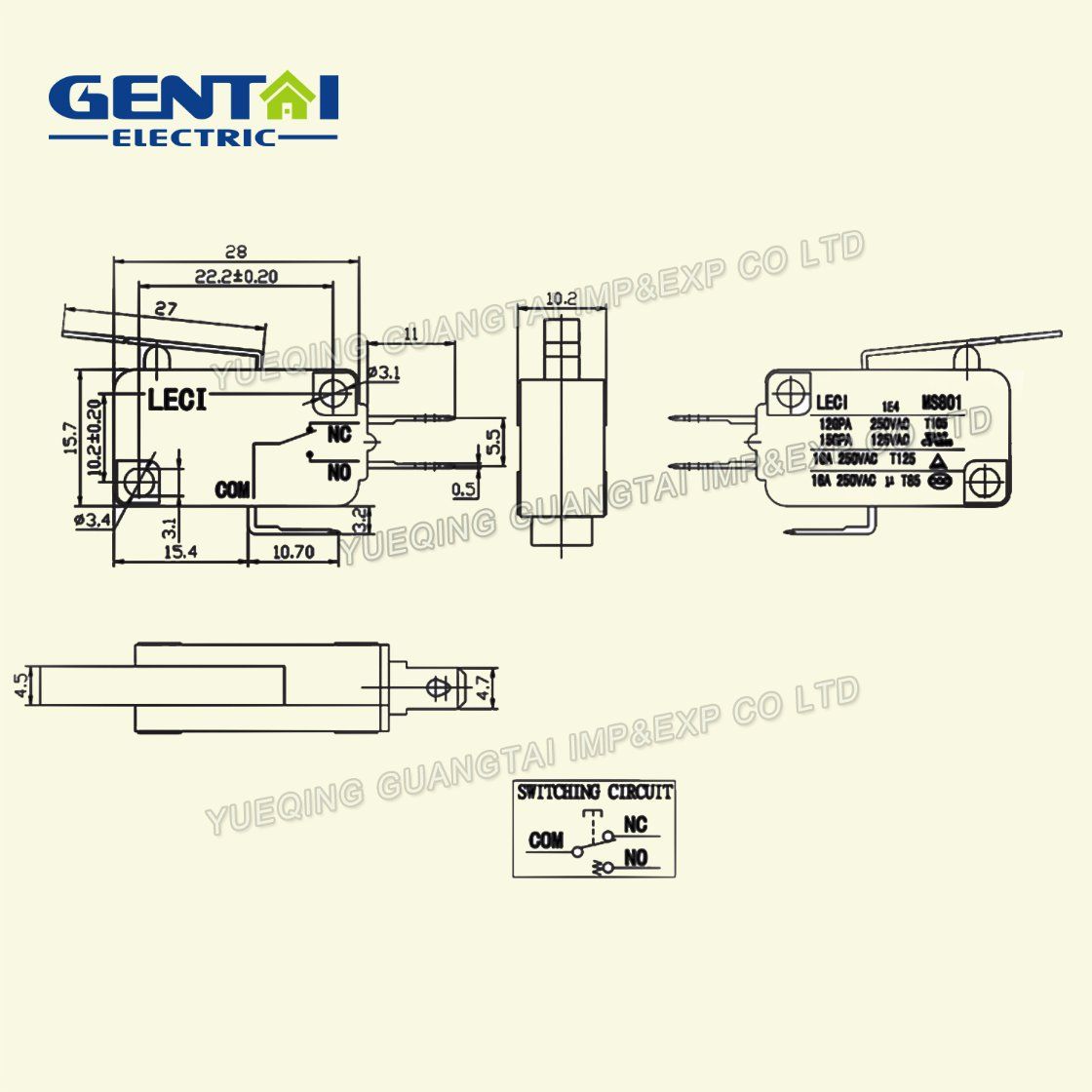

Drawing of  16A/250V t85 push button micro switch(meas.mm)








Our Services:

* Color box packing available

* Quick response - We will reply your inquiry as soon as possible

* After-sales service - To make sure our customers are satisfied with their order

* Provide samples - Provide samples for reference

China Guangtai Electrical Co., Ltd. Which located in the famous"Capital of Electrics"in China, is a Large-scaled processional manufacturer in high and low voltage electrical apparatus. Have conveniently traffic 25km respectively from Wenzhou airport and railway station, and 5km from 104 national road freeway.

In the past decade, Guangtai Electrical has heveloped into one of the major electrical suppliers in China, covering various electrical fields and engaged in the widest range of electrical control componets including Distribution board, meter socket, fittings, clamps, connectors, terminals, AC contactors, circuit breakers, meters, relays, electrical and cable accessories, plastic products, tools and much more., our products have gained a strong reputation throughout the Europe, Noth American, South American, Middle East and Southeast Asia, etc.

As we strive to hold on our promise of "Human Oriented, Technology Advanced", we make hard effort to increase our global market presence. We strictly produce the goods accordance with the ISO9001, and most of for our products have the CE and CB certificate.

We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together.

We are always your electrical friends.
