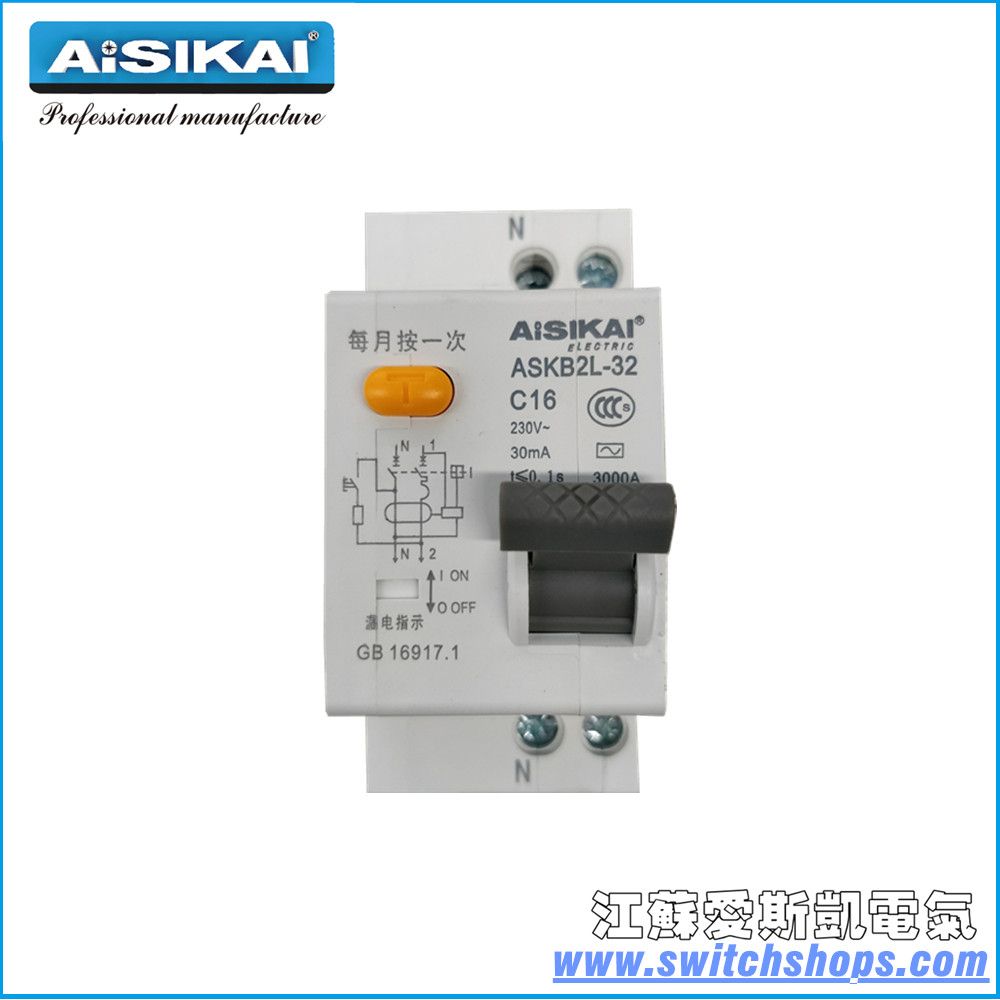

Prod Model: |
ASKB2L-32 C16 |
Current: |
20A |
Poles: |
1p+N |
Auxiliaris: |
Mn+Mv,Mx+of,of,SD |
Instantaneous Tripping Device Class: |
C |
Breaking Capacity: |
Low Voltage Circuit Breakers |
Operation: |
Electric Type |
Speed: |
Normal Type Circuit Breaker |
Arc-extinguishing Medium: |
Air |
Installation: |
Fixed |
Structure: |
MCB |
Certification: |
CCC |
Poles Number: |
4p+N |
Product Description
Product Description --Mini Circuit Breaker (MCB)-ASKM1
1. Basic Specification:
Model | Technical Parameters | Residual Current Type | Rated Frequency (HZ) | Rated working voltage Ue(V AC) | Rated current In(A) | Impulse withstand voltage Uimp (KV) | Rated Instantaneous trip type | Rated short-circuit capacity Icn(KA) | Rated residual making and breaking capacity (A) | Release type |
ASKB1 | 63A | 1P | AC (Alternating current sine remaining suddenly applied or solwly rising ensure tripping)
| 50HZ
| 230/400 | 1/3 /6/10 /20/25 /32/40 /50/63 | 4 | C/D | Ctype | Dtype | 2000 | Thermal magnetic |
2P | 400 | 4.5 | 4 |
3P |
4P |
125A | 1P | 230 | 63/ 80/ 100/ 125 | 6 | 6 |
2P | 400 |
3P |
4P |
ASKB1L | 63A | 1P+N | 230 | /3 /6/10 /20/25 /32/40 /50/63 | 6-40A | 4.5 |
2P | 230 | 6 |
3P | 400 | |
3P+N | 400 | 50.63A |
4P | 400 | 4.5 |
125A | 1P+N | 230 | 50/ 63/ 80/ 100 | 6 | 6 |
2P | 230 |
3P | 400 |
3P+N | 400 |
4P | 400 |
ASKB2 | 32A | 1P+N | 230 | 6/10/ 16/20/ 25/32 | B/C | B:4.5 | C:6.5 |
ASKB2L | 32A | 1P+N | 230 | B/C | B:6 | C: 6 |
2.Working Conditions:
1. The ambient air temperature. -5 °C~+40 °C; 24h average does not exceed +35 °C
2. Altitude : Installation site altitude does not exceed 2000m
3. Relative humidity not over 90%, will impacted by humidity.
4. Pollution III grade, will impacted by salt-fog, oil mist.
5. Will impacted by Mildew
3. Product Pictures:
4.construction
5. Production line:
6. More products pictures
7. Other your products series:
ACB/ MCCB/MCB/ELCB/ATS-CB grade/LIS/VPS/CPS/SPD/IPM/BAC/Switch box.etc.
8.Q&A:
1) Q:Why your company ?
A: Aisikai is a professional manufacturer , we have our own product lines to control the quality and goods are following
international standards, IE, CE, ISO9001 etc.
2) Q: Your address ?
A: Locates in No.5 Chengji Industrial Town,YiZheng City, JiangSu Province
3) Q: What's the ATS guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to
customer to replace asap.
4) Q: What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment
and also can accept LC
7) Q: Which port of loading ?
A: Shanghai Port
8) Q: Website?
A: Website: www.switchshops.com , welcome to contact us anytime.
Jiangsu Aisikai Electric Co., Ltd is located in Yangzhou, the city which is famous for pleasant sceneries and rich inside information where ancient civilization and modern culture enhance each other's beauty.
Since the foundation of Aisikai Electric Co., Ltd in 2007, it has endeavored to research, manufacture and develop top quality low voltage electric switch.All the products has passed through authentications of ISO9001 quality management system, .CCC ( China Compulsory Certification) and CE(CONFORMITE EUROPEENNE).Our products own two patents with proprietary intellectual property rights.Our products are not only recognized by domestic customers but also be trusted by foreign customers.Our trade mark Aisikai has been registered in the trade mark department of China State Industry & Commerce Administration Bureau.We have our own laboratory station and we have ability to make load-bearing delivery test.All these are benefited from increasing our deep sci-tech cooperation with domestic high colleges and perfecting strength of technical development.
