| Prod Model: |
V-ZA4-C300 |
| Theory: |
Magnetic Micro Switch |
| Current: |
16A |
| Connect Forms: |
Spst-Nc |
| Actuator: |
Roller Arm |
| Pressing Type: |
Lever Roller |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Brand: |
Yz |
Product Description

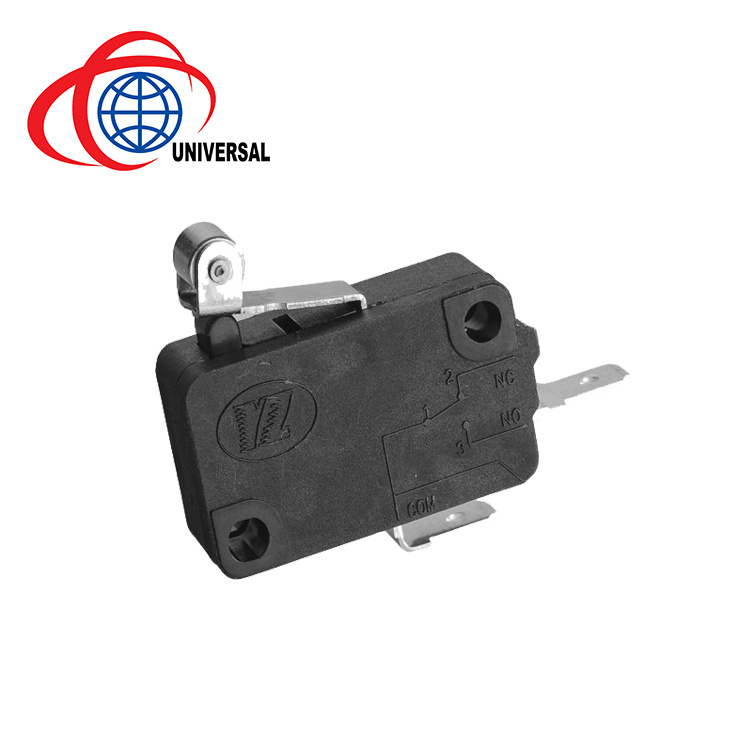

Magnetic snap action switches
Characteristics and usage:
*Safe reliable miniature switch
*Nice appearance, tight configuration, characteristic, small contact gap, quick action, high sensitivity and small operating travel.
*Long life, high reliability.
*Variety of contact terminals.
*Variety of levers
*A variety of models with low operating force to high force are sensitivity
Suitable for roller door motors, microwave ovens, air conditioners, rice cookers, dishwashers, dust cleaners, humidifiers, water heaters, heaters, electric drills, game joystick, video game consoles, timers, welding torches, food processors, juicers, Alarm, mixer, shredder and so on.
Technical characteristics:
| Item | Value |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical: 300 cycles/min;
Electrical: 30 cycles/min; |
| Insulation Resistance | 100MΩ(500VDC) |
| Contact Resistance | ≤30mΩ(Initial value) |
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal And ground(case),and between
Each terminal and non-carrying metal parts | AC2000V,50/60Hz,1min |
| Vibration Resistance | 10-55Hz, 1.5mm Double amplitude |
| Shork Resistance | Destruction: OF>0.5N:1000m/s²(approx 100G)max |
| OF≤0.5N:500m/s²(approx 50G)max |
| Malfunction: OF>0.5N:300m/s²(approx 30G)max |
| OF≤0.5N:200m/s²(approx 20G)max |
| Life Expectancy | Mechnical≥5000000 cycles(60cycles/min) |
| Electrical≥50000 cycles (30 cycles/min) |
| Degree of Protection | IEC IP40 |
| Degree of protection against electric shock | Class l |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125ºC 60%RH below (No ice and dew) |
| Ambient air humidity | 85%RH below(about +5~+35ºC) |
| Weight | Approx 5.22g(V-16B0-C300) |
Notice: Operating Force of switches without the non-moving lever
