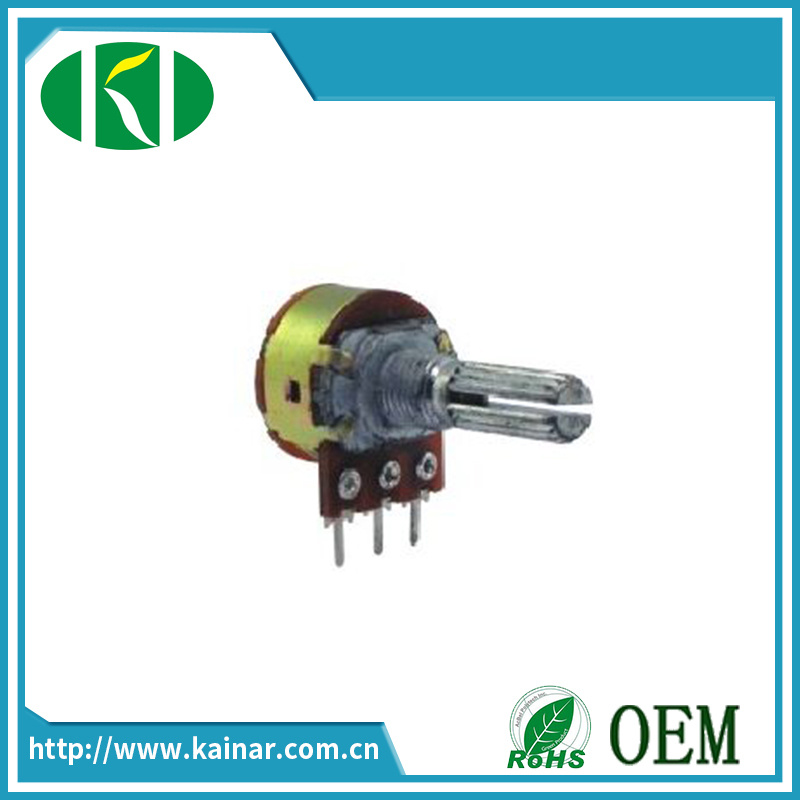

16mm B500k Low Cost Single Turn Potentiometer with Switch

Name: 16mm B500k Low Cost Single Turn Potentiometer with Switch
Brand: all-electronics-online.com
SKU: 820997035
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	US $ 0.23/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K ±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 500V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	100V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω
1.9	Switch contact resistance	0.05Ω
1.10	Switch power	12V 1A

MECHANICAL CHARACTERISTICS

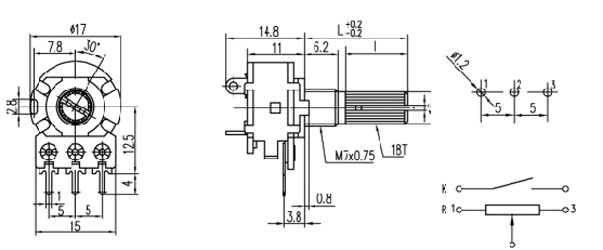

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Rotational Torque	20~200gf.cm
2.4	Switch working angle	35±5°
2.5	Switch torque	50~300gf.cm
2.6	Shaft Push Pull Strength	≥5kgf
2.7	Click slip-out force
2.8	Shaft Wobble (mm p-p)	≤0.3mm
2.9	Shaft Stop Strength	>5kg.cm

DURABILITY CHARACTERISTICS

3.1	Rotating life	10,000 cycles
3.2	Storage Temperature Range	-30ºC~+80ºC
3.3	Operation Temperature Range	-20ºC~+70ºC
3.4	Soldering Heat Characteristic	260°C/2.5±0.5S

Prod Model:	WH160AK-2
Operating Force:	20-200GF.Cm
Shaft Stopper Strength:	3kgf.Cm/Min
Power Rating:	0.125W 0.06W
Rated Volatge:	200V 150V
Resistance:	Variable Resistor
Installation:	SMD Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Potentiometer
Package Type:	Carton
Quantity:	50, 0000PCS
Shape:	Picture
Application:	Many Ways
Brand:	Kn

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

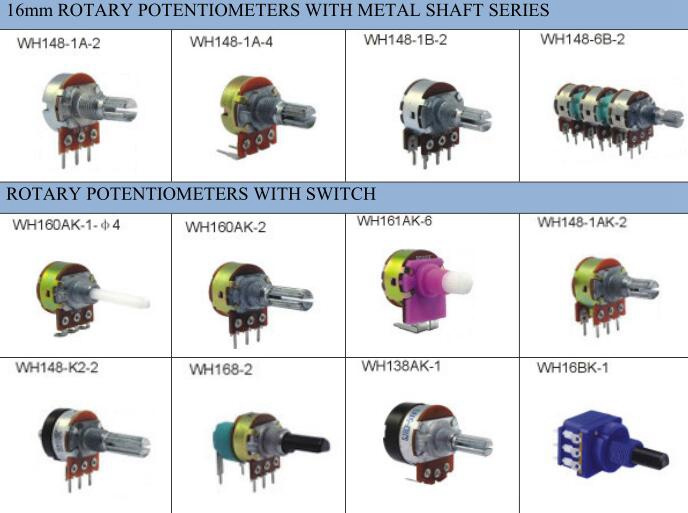

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
