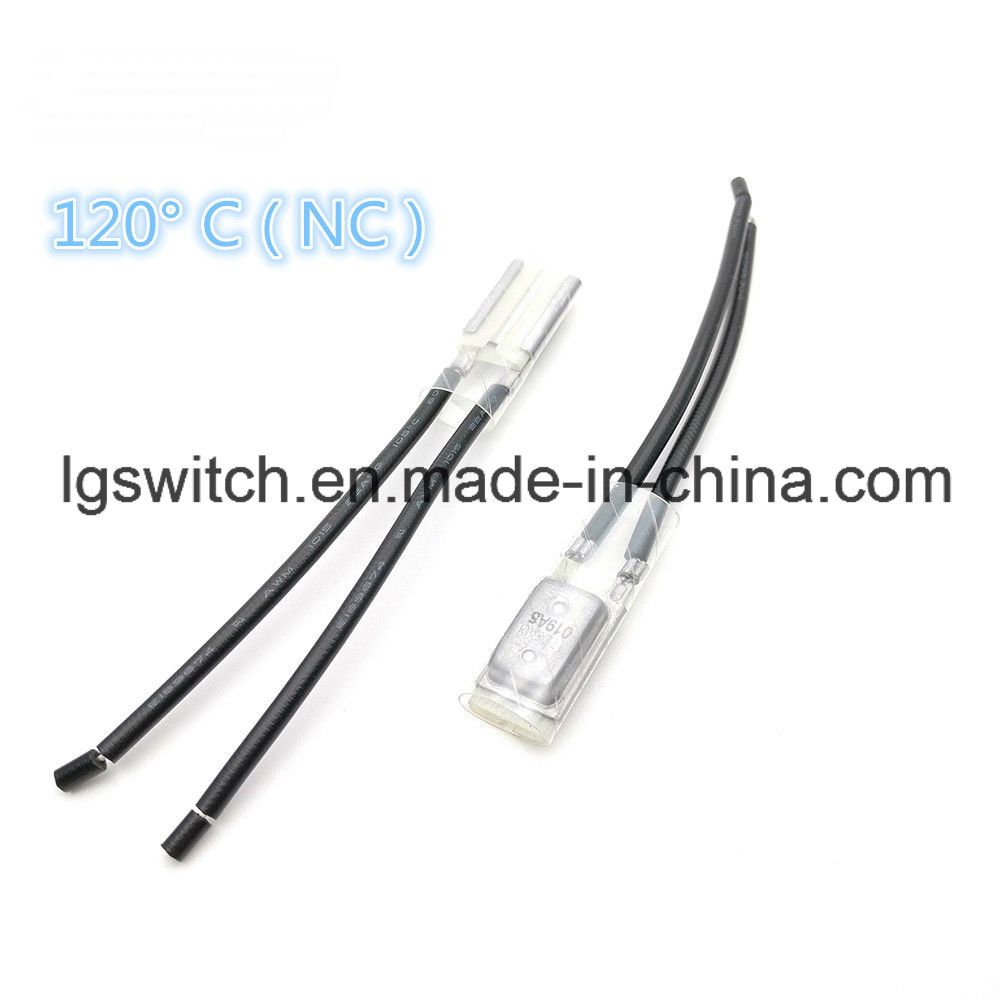

17ami Electrical Thermostat Blanket Cut-off 150c N. C Thermal Switch Protector Temperature Fuse
| Price: |
US $ 0.01-0.03/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Paypal |
Product Description
17AMI thermal protector advantages:
• Miniature size.
• Individually temperature calibrated and checked.
• Positive make and break with Klixon snap action disc.
• Repeatable temperature performance over life.
• Gasket steel case suitable for many impregnation processes.
• Current and temperature sensitivity for maximum design flexibility.
• Wide selection of leads and insulating sleeves.
• Same size and opposite side terminations.
• Cadmium free contacts.
Technical parameters of 17AMI thermal protector:
Rating: 22 A / 115 V--- AC, 10 A / 250 V--- AC, 20 A / 16 V--- DC

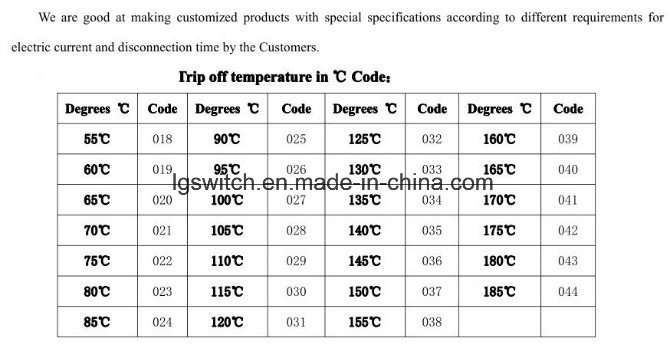

Action temperature range: 55 ºC~ 185 ºC ±5ºC
Tolerance:±5ºC

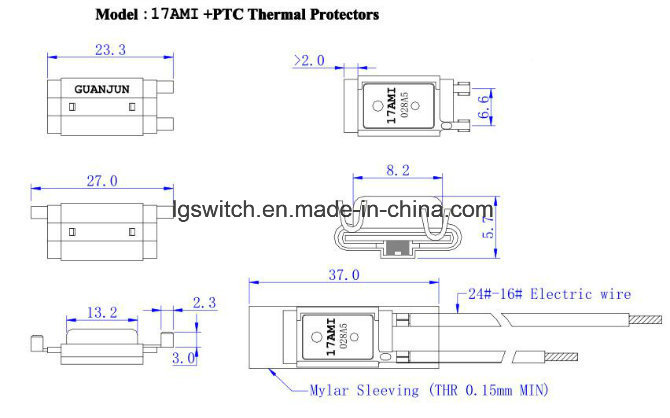

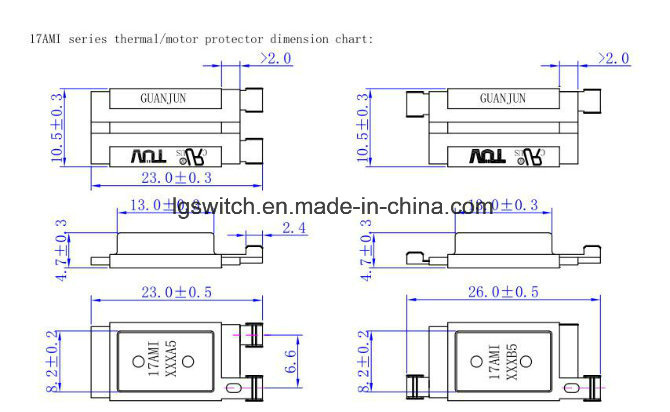

Dimension: 23×10.4×4.6 mm
Contact resistance:<40mΩ
Insulation resistance:>100MΩ
Response speed:≤1ºC/min
Operation cycles: >10000 Times
Approvals: UL CSA TUV CQC RoHS
Applications:
• Shaded Pole Motor
• Permanent split capacitor motor
• Fluorescent lighting ballasts
• HID ballasts
• Transformer
• Recessed lighting fixtures
• Battery packs
• Vacuum cleaners
• Automotive accessory motors, solenoids, PC boards
| Guanjun (L&G) Electronics specialize in this field more than 20 years,with good quality and pretty competitive price |
| . Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs |
| . Original manufacturer with direct factory price, Competitive & Fashionable |
| . High management Standard for quality control |
| . Small order acceptable: 500pcs are welcome |
| . Safe payment terms: T/T, Western Union, are available |
| . Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order |
| . OEM available, Customers' designs are warmly welcome |
1.Once we get your inquire for our switches, we will reply you within 30 min
2.Checking the drawing and all details of our switches with you, if you think it is ok, then we need your signature on our drawing for final confirmation.
3.Quotation will be sent to you accordingly.
4.After getting your signed quotation, samples will be sent to you immediately.
5.If our switches passed your testing, you may release to us.
6.Receiving your official order, we will let you know our shipping date soon.
7.Paying 50% for us, we will start to proceed your order to keep the goods finished on-time.
8.Balance 50% payment before shipment.
9.Getting all payment from you, goods will be shipped to you per your requested shipping way
Samples & Packaging & Shipping:
1)Samples:
A.Free for you, Quantity less than 6 pcs, freight collected.
B.Lead time for samples: 3~7 days for preparing samples.
2) Shipping
A.Couriers:Fedex, DHL, UPS, TNT
B.Other: Air or by Sea
As we have a long time cooperation with Courier agent, we can get a priority price for you. We can quote you the transportation charges at first for your comparasion.
FAQ
Q1--What is your MOQ?
In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, CQC, Nemko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
| Prod Model: |
17AMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Voltage: |
250V |
| Max. Current: |
22A |
| Special: |
Normally Closed |
| Certificates: |
cUL,UL,TUV,RoHS |
| Life: |
100,000 Cycles |
| Breaking Capacity: |
High |
| Type: |
Temperature Fuse |
| Usaga: |
Electronic |
| Standard: |
UL,TUV,CQC,RoHS |
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

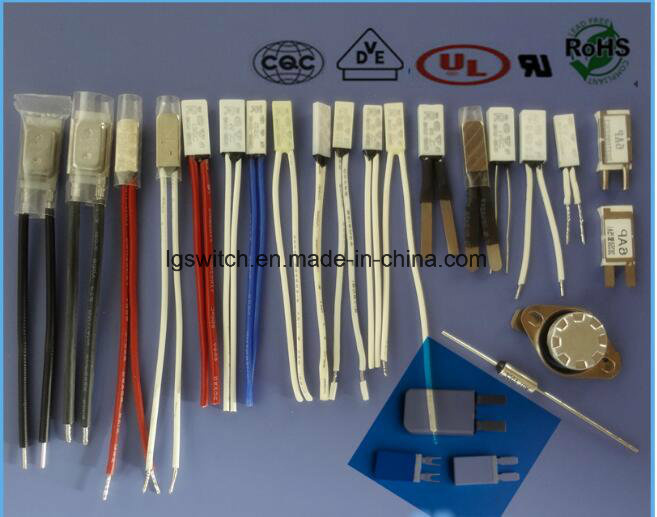

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

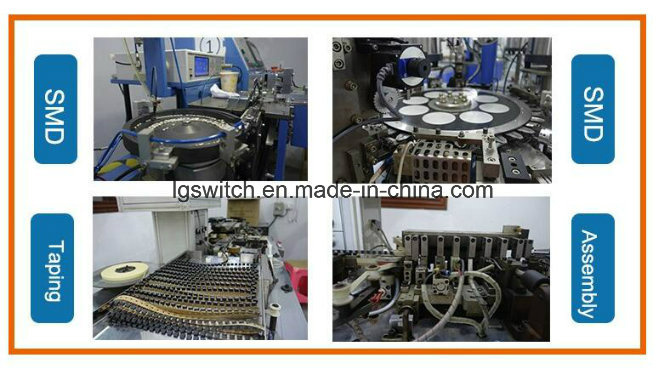

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
