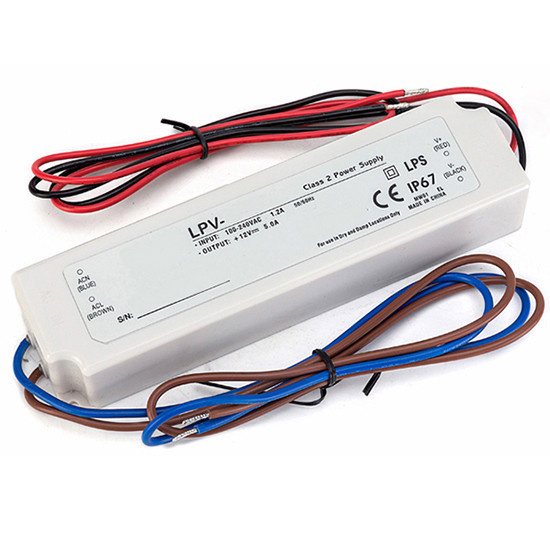

LPV Series: 18-35W / 60-150W Single output LED power supply
*LPL-18: Only 90~132VAC input
*LPH-18 :Only 180~264VAC input
*LPV-20/35: 90~264VAC input
*LPV-60/100: 90~264VAC input
*LPV-150: Only 180~305 VAC input
*All sealing glue,internal accord with IP67 rating
*Withstand 300VAC surge input for 5 seconds
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circuit,over current,over voltage,over temperature(Only PLV-150,LPH18,LPL-18)
*Constant voltage design (constant voltage mode)
*Class 1 or 2 power supply, by LPS(limited power source)test
*100%full load ageing test
*Low cost,high reliability
*Applicable to the adornment of the LED as light source and building lighting, stage lighting and theatical lighting, LED electronic display screen.
*2 years warranty
| Series No. | Model No. | Specification |
| AC input range | AC inrush Current(Max.) | Overload protection | Over voltage protection | Withstand Voltage | Working Temperature | EMC standards | Connector
input/output | Output | Voltage tolerance | Ripple&noise | Efficiency | Size(mm) |
LPV-60
(constant voltage mode) | LPV-60-5 | 90~264VAC;127~370VDC | Cold start,
60A/230VAC | 110%~150% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -30ºC~+70ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | Input: UL,18AGWx2C(60cm);Output:UL,16AGWx2C(60cm) | 5V,0~8A | ±8% | 80mV | 76.0% | 162x42.5x32 |
| LPV-60-12 | 12V,0~5A | ±5% | 120mV | 83.0% |
| LPV-60-15 | 15V,0~4A | ±5% | 120mV | 83.0% |
| LPV-60-24 | 24V, 0~2.5A | ±5% | 150mV | 86.0% |
| LPV-60-36 | 36V,0~1.67A | ±5% | 150mV | 86.0% |
| LPV-60-48 | 48V, 0~1.25A | ±5% | 150mV | 86.0% |
LPV-100
(constant voltage mode) | LPV-100-5 | 90~264VAC;127~370VDC | Cold start,
75A/230VAC | 110%~150% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -25ºC~+70ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | Input: UL,18AGWx2C(30cm);Output:UL,14AGWx2C(30cm) | 5V,0~12A | ±8% | 80mV | 80.0% | 190x52x37 |
| LPV-100-12 | 12V,0~8.5A | ±5% | 120mV | 85.0% |
| LPV-100-15 | 15V,0~6.7A | ±5% | 120mV | 87.0% |
| LPV-100-24 | 24V, 0~4.2A | ±5% | 150mV | 88.0% |
| LPV-100-36 | 36V,0~2.8A | ±5% | 150mV | 88.0% |
| LPV-100-48 | 48V, 0~2.1A | ±5% | 150mV | 89.0% |
LPV-150
(constant voltage mode) | LPV-150-12 | 180~305VAC;254~431VDC | Cold start,
60A/230VAC | 110%~150% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -25ºC~+70ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | Input: UL,SJTW,18AGWx2C(60cm);Output:UL,SJTW,18AGWx2C(30cm) | 12V,0~10A | ±5% | 200mV | 87.0% | 191x63x37.5 |
| LPV-150-15 | 15V,0~10A | ±5% | 200mV | 88.0% |
| LPV-150-24 | 24V, 0~6.3A | ±5% | 200mV | 89.0% |
| LPV-150-36 | 36V,0~4.2A | ±5% | 200mV | 89.0% |
| LPV-150-48 | 48V, 0~3.2A | ±5% | 200mV | 90.0% |
LPV-20
(constant voltage mode) | LPV-20-5 | 90~264VAC; | Cold start,
70A/230VAC | 110%~150% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -30ºC~+70ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | UL,18AGWx2C(60cm) | 5V,0~3A | ±5% | 80mV | 77.0% | 118x35x26 |
| LPV-20-12 | 12V,0~1.67A | ±5% | 120mV | 81.0% |
| LPV-20-15 | 15V,0~1.33A | ±5% | 120mV | 83.0% |
| LPV-20-24 | 24V, 0~0.84A | ±5% | 150mV | 83.0% |
LPV-35
(constant voltage mode) | LPV-35-5 | 90~264VAC; | Cold start,
55A/230VAC | 110%~150% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -30ºC~+65ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | Input: UL,18AGWx2C(60cm);Output:UL,16AGWx2C(60cm) | 5V,0~5A | ±6% | 80mV | 77.0% | 148x40x30 |
| LPV-35-12 | 12V,0~3A | ±5% | 120mV | 84.0% |
| LPV-35-15 | 15V,0~2.4A | ±5% | 120mV | 84.0% |
| LPV-35-24 | 24V, 0~1.5A | ±5% | 150mV | 85.0% |
| LPV-35-36 | 36V, 0~1A | ±5% | 150mV | 85.0% |
LPL-18
(constant voltage mode) | LPL-18-12 | 90~132VAC | Cold start,
40A/115VAC | >105% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -30ºC~+70ºC | FCC part15 class B | UL,18AGWx2C(30cm) | 12V,0~1.5A | ±3% | 120mV | 80.0% | 140x30x22 |
| LPL-18-24 | 24V,0~0.75A | ±3% | 150mV | 83.0% |
| LPL-18-36 | 36V, 0~0.5A | ±3% | 200mV | 84.0% |
LPH-18
(constant voltage mode) | LPH-18-12 | 180~264VAC | Cold start,
50A/230VAC | >105% hiccup mode,auto-recovery | 115%~135% Rated output voltage | I/P-O/P:3KVAC | -30ºC~+70ºC | EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | UL,18AGWx2C(30cm) | 12V,0~1.5A | ±3% | 120mV | 77.0% | 140x30x22 |
| LPH-18-24 | 24V,0~0.75A | ±3% | 150mV | 82.0% |
| LPH-18-36 | 36V, 0~0.5A | ±3% | 200mV | 83.0% |
