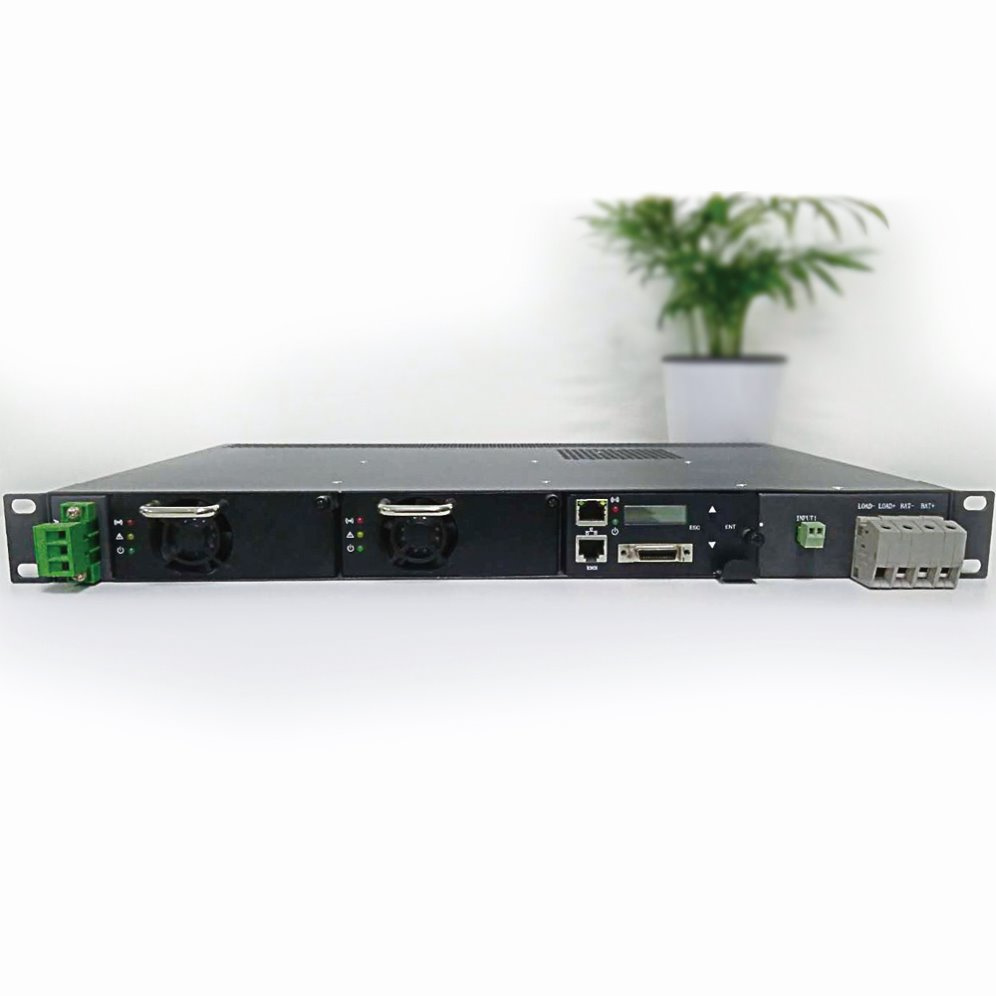

19"/1U Subrack 48VDC/60A Switching Mode Power Supply
Features
(1) 1U high 19" rack
(2) System capacity from 60A
(3) PFC technique features the system high efficiency, energy-saving and up to 0.99 power factor.
(4) Intelligent fan-cooling technique brings good cooling performance, low failure rate and high reliablity
(5) Fast on-line expansion of rectifier modules enabled by hot-swap
(6) N+1 rectifier module redundancy
Technical specs| Model | SPS60-48/CR4830 |
| Output Current | 60A |
| Rated Output Power | 3600W |
| Rated Output Voltage | 53.5Vdc (42-58 Vdc) |
| AC Input |
| AC Input Voltage Range | 176~300Vac, 1phase/3wire (@ full load) |
| AC Input Frequency | 45Hz ~65Hz |
| AC input Power Factor | ≥0.99 |
| AC transfer Efficiency | 92% , 96%(optional) |
| AC Input Lightening protection | NA |
| DC Output |
| Output Voltage Range | 42~58 Vdc |
| Current Share | ±5% |
| Load Regulation | ≤0.5% |
| Voltage Regulation | ≤0.1% |
| Environment |
| Operating Temperature | (-20 to 50°C) (Rectifier Temp Range: -45°C to 75°C) |
| Relative Humidity | 5%~95% RH, No Condensation |
| Configuration |
| Rectifier Module | 2*CR4830 |
| Controller | 1*CAS-03 |
| DC Distribution | 1pc*60A |
| Alarm Relay | 4pcs |
| Others |
| Standard | UL60950/EN60950, EN55022, RoHS |
| Communication | LAN/RS232 /RS485 |
| Dimension (mm) | 482*290*44 (Subrack) |
Company introduction
Our certificates
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1 samples, you hsould pay express cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing online UPS,Line interactive UPS,Offline UPS nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than
our competitors. We promise that all products from Powtech are the most affordable in the industry.
Contact us:
Tina Tian
Qingdao Powtech Electronics CO., Ltd.
Address:No.17 Hechuan Road, Qingdao, China
TEL:+86 532-88721735-805
MB:+86 18560636736
http://www.jetpower-ups.com
| Prod Model: |
SPS60-48/CR4830 |
| System Capacity: |
60A/3600W |
| System Input Voltage: |
90-300VAC, 1 Phase/3 Wire |
| System Output Voltage: |
42-58VDC |
| System Size: |
482*290*44mm |
| Rectifier Model: |
Mr4815*1-2PCS |
| Controller Model: |
CAS-03: RS232/RS485, LCD |
| Battery Management: |
Yes |
| DC Distribution: |
1*60A Load |
| Battery Breaker: |
1*60A |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
>500W |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CSA |
| Input Voltage: |
90-300VAC |
| Brand: |
Jetpower |
