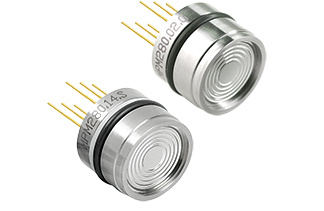

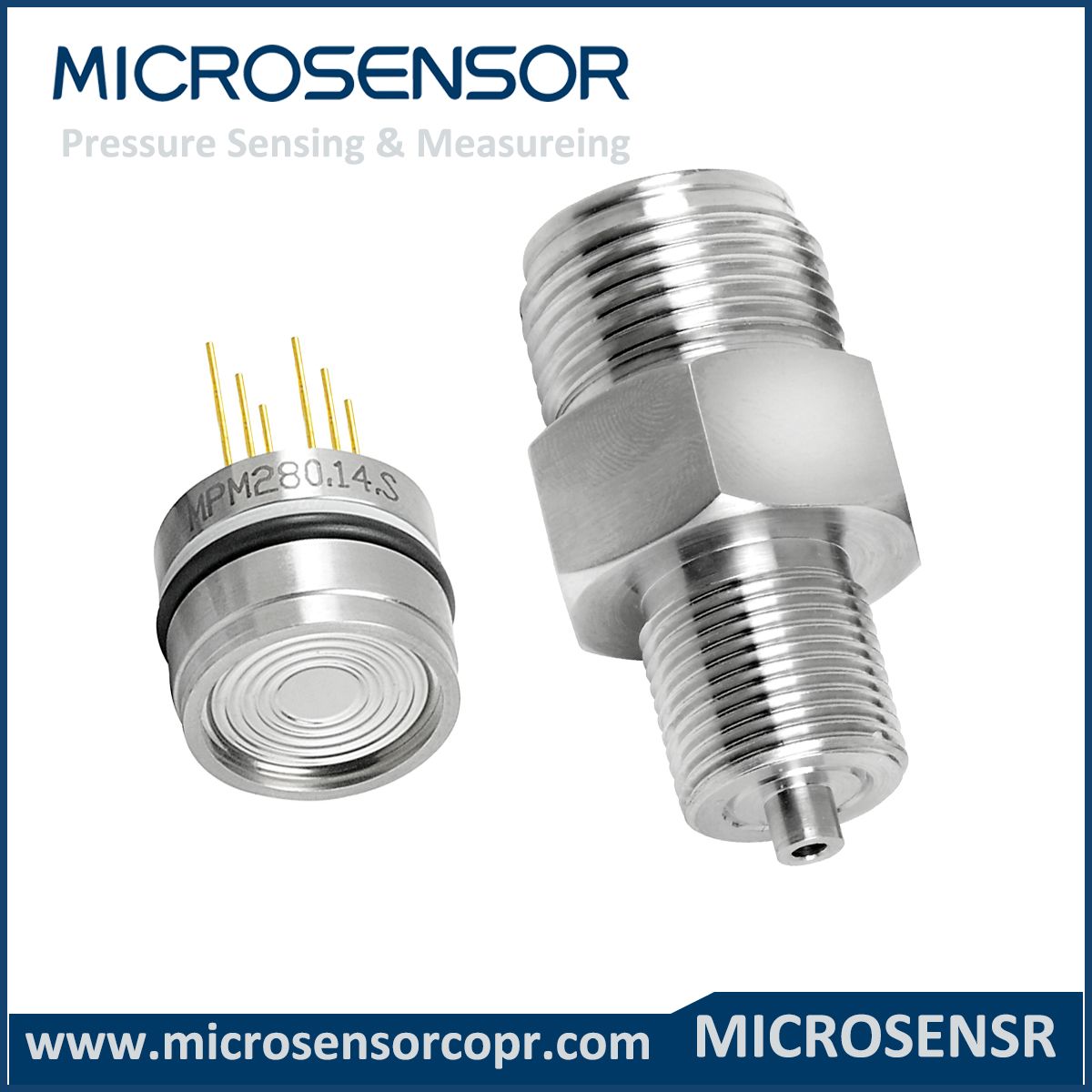

19.mm Diameter Compact Pressure Sensor MPM280
Features: 1. 19mm diameter
2. Compact
3. Isolated construction
4. SS316L
5. Cost-effective
6. Accurate
Applications: 1. Industrial process
2. Level measurement
3. Gas pressure
4. Liquid pressure
5. Pressure calibration
6. Air conditioning
7. Cooling system
Electric Performance: 1. Power supply: ≤2.0mADC
2. Electric connection: Kovar pin or 100mm silicon rubber flexible wires
3. Common mode voltage output: 50% of input (typ.)
4. Input impedance: 3kΩ~8kΩ
5. Output impedance: 3.5kΩ~6kΩ
6. Response (10%~90%): <1ms
7. Insulation resistor: 100MΩ, 100VDC
8. Overpressure: 1.5 times FS
Basic Specifications:Item* | Min. | Typ. | Max. | Units |
Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
Repeatability | | ±0.05 | ±0.075 | %FS |
Hysteresis | | ±0.05 | ±0.075 | %FS |
Zero output | | | ±2 | mVDC |
FS output** | 70 | | | mVDC |
Zero thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
FS thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
Compensated temp. range | 0~50 | ºC |
Working temp. range | -40~125 | ºC |
Storage temp. range | -40~125 | ºC |
Stability | | ±0.2 | ±0.3 | %FS/year |
*testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge ** 0AG, FS output ≥60mV 0BG, FS output ≥45mV 02A, 03A, 02GY, 03GY, FS output ≥50mV 07A, 08A, 07GY, 08GY, FS output ≥60mV |
Order Information:MPM280(TS/TH/Ti)* | Piezoresistive OEM Pressure Sensor |
| | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
0B | 0~20kPa | G | 10 | 0~1MPa | G.A |
0A | 0~35kPa | G | 12 | 0~2MPa | G.A |
02 | 0~70kPa | G.A | 13 | 0~3.5MPa | G.S.A |
03 | 0~100kPa | G.A | 14 | 0~7MPa | S |
07 | 0~200kPa | G.A | 15 | 0~10MPa | S |
08 | 0~350kPa | G.A | 17 | 0~20MPa | S |
09 | 0~700kPa | G.A | 18 | 0~35MPa | S |
| | Code | Pressure type |
G | Gauge |
A | Absolute |
S | Sealed gauge |
| | Code | Pressure connection | Installation |
0 or null | O-ring |
1 | Assembled M20x1.5 male, waterline seal | Top: M24x1 male (P≤2MPa) |
2 | Assembled M20x1.5 male, waterline seal | Top: M27x2 male |
3 | Welded M20x1.5 male, waterline seal | Top: M24x1 male (P≤2MPa) |
4 | Welded M20x1.5 male, waterline seal | Top: M27x2 male |
PC1 | Flush diaphragm M20x1.5 male, | Top: M24x1 female |
PC3 | Flush diaphragm G1/2 male, | Top: M24x1 female |
| | Code | Compensation |
L | Laser trimming |
M | Outer compensated resistor (providing resistor value) |
| | Code | Electric connection | |
1 | φ0.5mm Kovar pin | |
3 | 4-color flexible wire, default length:100mm | |
| | | Code | Special measurement |
Y | Gauge sensor to measure vacuum (0~ -100kPa) |
| | |
MPM280 09 G 0 L 1 Y The whole spec |
| | | | | | | | | | | | | | | | | | |
