1A~3200A Generator Change Over Switch ATS

Name: 1A~3200A Generator Change Over Switch ATS
Brand: all-electronics-online.com
SKU: 725246032
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 13.5-1500/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. Application:
JQ5 ATS used in Generator system, to changeover two power sources. Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection, hospital, bank, building etc, where doesn't allowed power off.

2: Basic Specification:

Model Name		JRQ5 ATS 100A -630A
Model Type		100A	160A	250A	400A	630A
Rated current		1A~100A	125A~160A	200A~250A	300~400A	500~630A
Rated Impulse withstand voltage		500V	500V	500V	500V	500V
Operation Voltage		187~257V normally 220V/230V 50/60HZ
Changeover time	I-O-II(S)	0.5	1	1.1	1.2	1.2
Changeover time	I-O or II-O(S)	0.3	0.6	0.7	0.8	0.8
Model Name		JRQ5 ATS 1000A -3200A
Model Type		1000A	1250A	1600A	2000A	2500A	3200A
Rated current		800~1000A	1250A	1600A	2000A	2500A	3200A
Rated Impulse withstand voltage		1000V	1000V	1000V	1000V	1000V	1000V
Operation Voltage		187~257V normally 220V/230V 50/60HZ
Changeover time	I-O-II(S)	1.2	1.2	1.2	2.4	2.4	2.4
Changeover time	I-O or II-O(S)	0.8	0.8	0.8

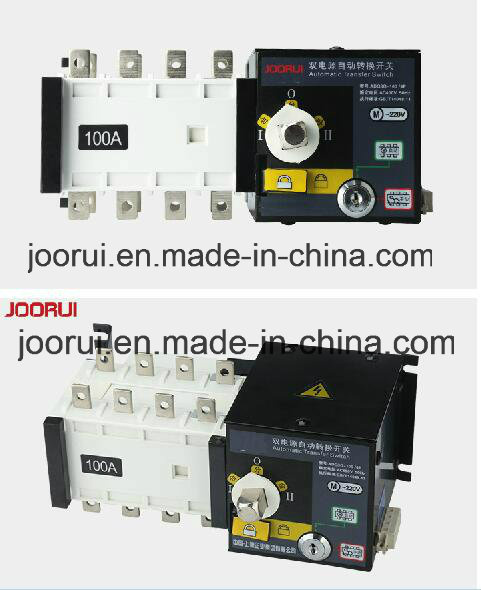

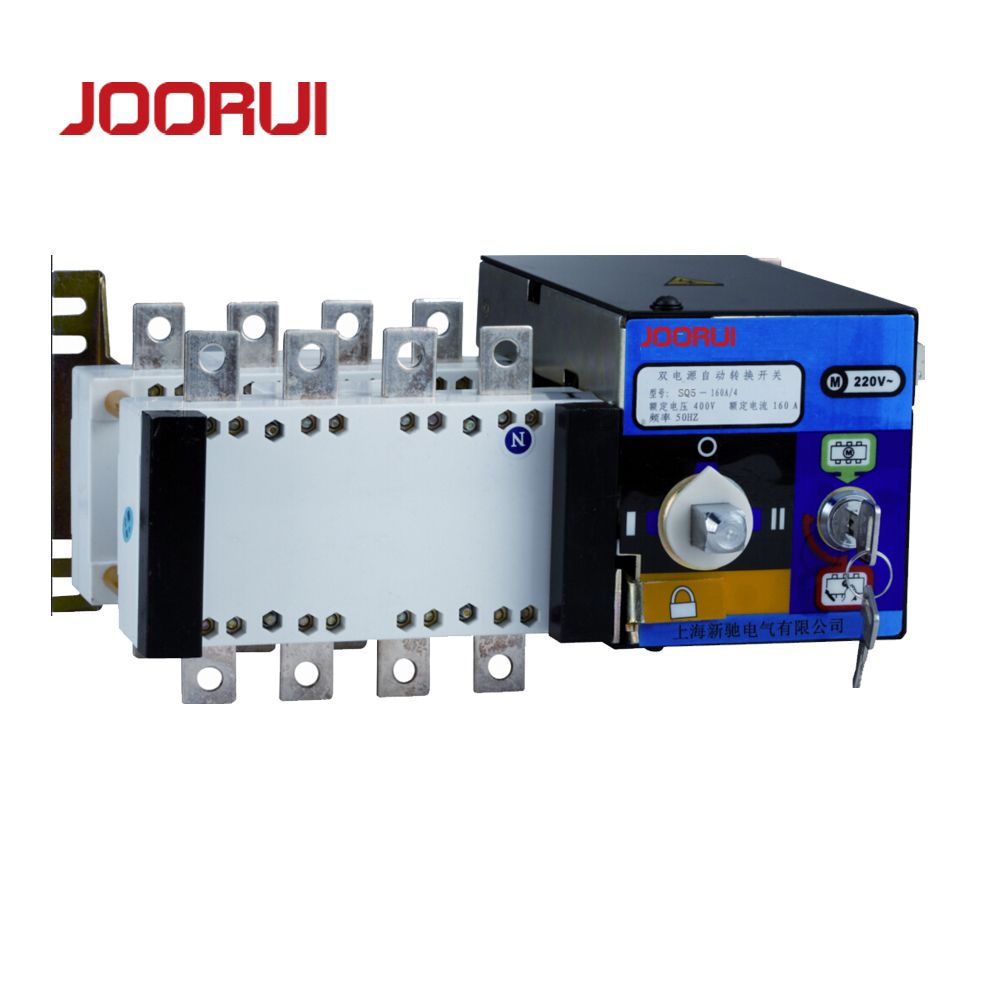

3: Product Photos

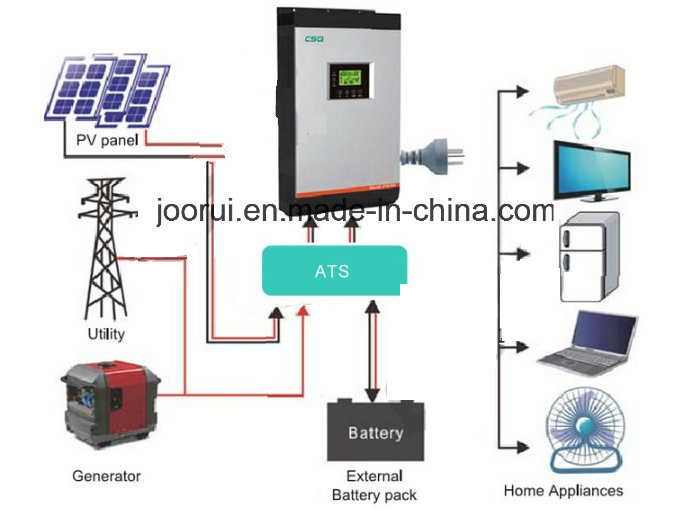

4:Application

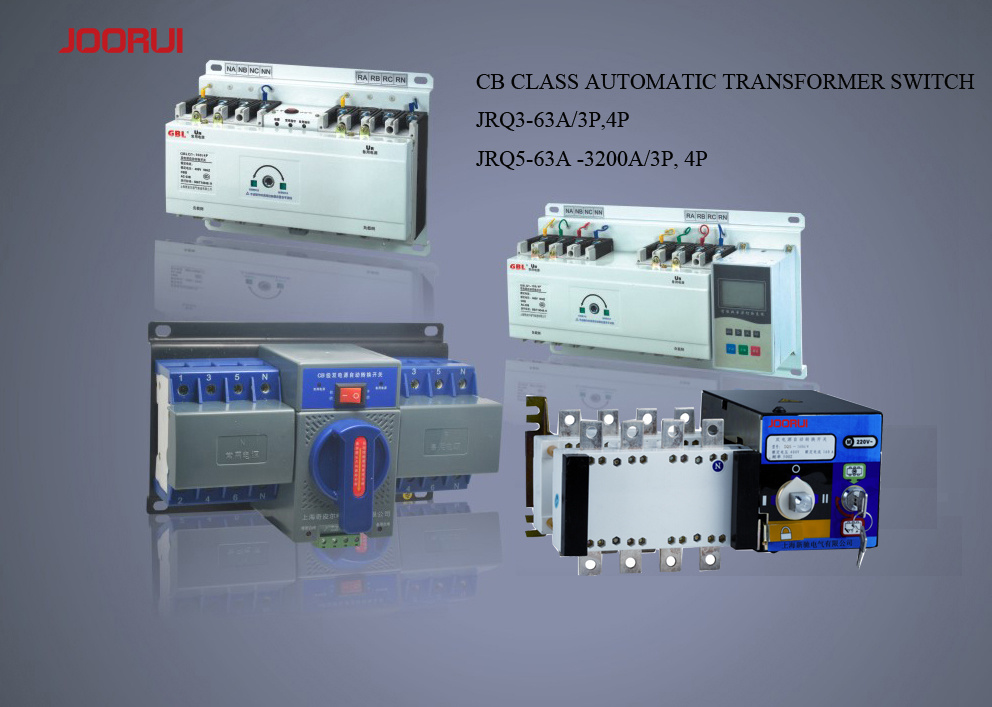

5: More Model type for ATS

6: Contact Information

Prod Model:	JRQ5

Yueqing JiuRui Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our company are MCCB, ATS, PANEL METERS, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing JiuRui Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to France, Australia, Philipine, Thailand, MID-East, Africa and 20 other countries and regions.

Yueqing JiuRui Electric Co., Ltd has always focused on research, development and innovation, We provide High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
