1A-3200A Type Automatic or Manual Gdq5 Changeover Switch Electric Transfer Switch

Name: 1A-3200A Type Automatic or Manual Gdq5 Changeover Switch Electric Transfer Switch
Brand: all-electronics-online.com
SKU: 821336875
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	US $ 20-2000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

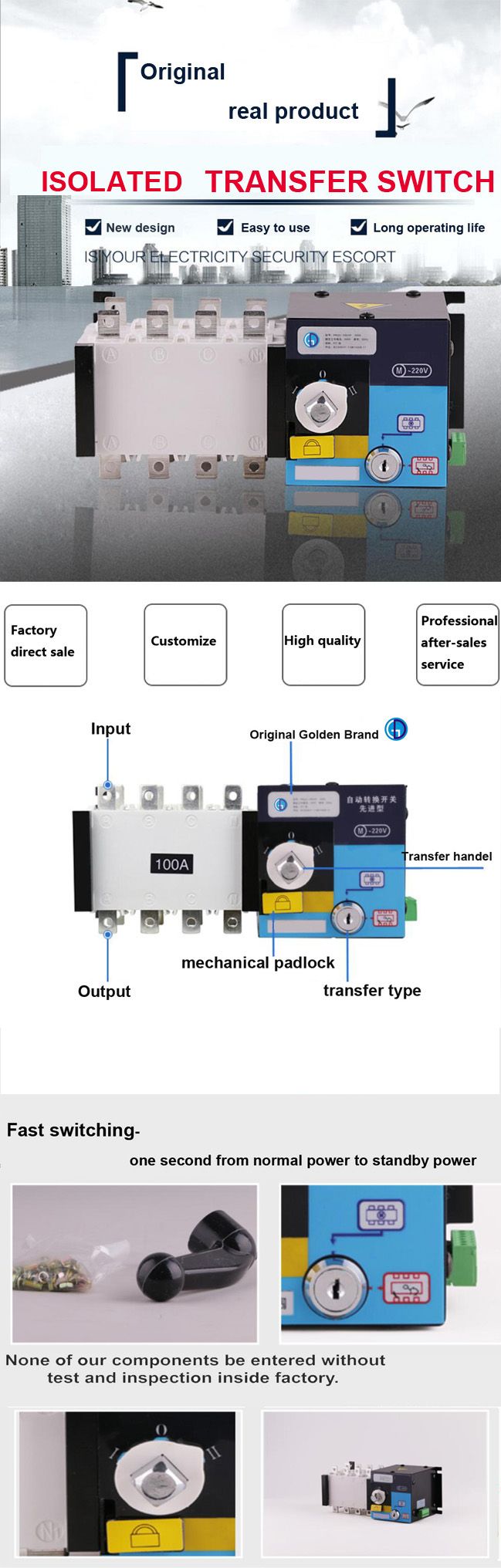

GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function

Function :Our GDQ5 is divided into two types-Basic type and Fire control type

Basic type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory "0": Under urgent situation or device examination,push compulsory "0" self-lock button,switch will transfer to position "0" to cut off both normal power and reserve power.

Fire control type has follow functions

***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power automatically;when Normal power is normal, switch will transfer to Normal power.

***** Compulsory "0": Under urgent situation or device examination,push compulsory "0" self-lock button,switch will transfer to position "0" to cut off both normal power and reserve power.

***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.Meanwhile send out closingsignal of generator, thus closed generator.

***** Remote control: i.e. operation and control at long distance. Push button , normal power will work; push button "",then reserve power will work.

***** Lack phase examination and protection: exam and protect breaking of any phase of normal power and reserve power.

Model Name		GDQ5
Frame		100A	160A	250A	400A	630A
Rated current		1A~100A	125A~160A	200A~250A	300~400A	500~630A
Rated Impulse withstand voltage		500V	500V	500V	500V	500V
Operation Voltage		187~257V normally 220V/230V 50/60HZ
Changeover time	I-O-II(S)	0.5	1	1.1	1.2	1.2
Changeover time	I-O or II-O(S)	0.3	0.6	0.7	0.8	0.8
Model Name		GDQ5
Frame		1000A	1250A	1600A	2000A	2500A	3200A
Rated current		800~1000A	1250A	1600A	2000A	2500A	3200A
Rated Impulse withstand voltage		1000V	1000V	1000V	1000V	1000V	1000V
Operation Voltage		187~257V normally 220V/230V 50/60HZ
Changeover time	I-O-II(S)	1.2	1.2	1.2	2.4	2.4	2.4
Changeover time	I-O or II-O(S)	0.8	0.8	0.8

1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);

2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety.

3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.

4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop

5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.

6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference.

7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload

8, High security, high automatization, high retiablility, use life more than 8000times

Packing:

Types	Carton Size			Gross weight/ Carton	Net weight/ Carton	QTY/ carton
Types	L	W	H	Gross weight/ Carton	Net weight/ Carton	QTY/ carton
ATS GDQ3W-63/4P 63A	0.485	0.31	0.28	17.53	15.53	8
ATS GDQ3M-225/4P 225A	0.445	0.24	0.31	17.05	15.05	2
ATS GDQ5-100/4P 100A	0.365	0.3	0.42	16.1	14.1	4
ATS GDQ5-160/4P 160A	0.455	0.295	0.285	15.6	13.6	2
ATS GDQ5-250/4P 250A	0.455	0.45	0.285	20.7	19.7	2
ATS GDQ5-400/4P 400A	0.565	0.385	0.385	21.365	19.365	1
ATS GDQ5-630/4P 630A	0.565	0.385	0.385	22.63	20.63	1
ATS GDQ5-1000/4P 1000A	0.715	0.405	0.385	49.16	47.16	1
ATS GDQ5-1250/4P 1250A	0.715	0.405	0.385	53.9	51.9	1
ATS GDQ5-1600/4P 1600A	0.715	0.405	0.385	55.7	53.7	1
ATS GDQ5-2500/3P 2500A				59

What is ATS?
ATS(Automatic Transfer Switch Equipment) mainly is composed of switch body and intelligent transferring controller. It can transfer reliably between Normal power and Reserve power automatically when there is problem with any of them, meanwhile, it can monitor and protect the two power system by over voltage, under voltage, phase loss, short circuit, overload, the Reserve power can be Utility, Generator Power, UPS power, PV panel etc, and the main application can be hospital, shopping mall, bank, mechanical industry, metallurgy, high building, military facilities and fire control etc. places where the power should not be interrupted.
1)Q:How can i trust your company?
    A:Golden electric is The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the automatic transfer switch(ATS) guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?

Prod Model:	GDQ5
Rated Current:	1A up to 3200A, Depands on Customer
Frequency:	50/60Hz
Operation Voltage:	187~257V Normally 220V/230V 50/60Hz
Changeover Time:	1 Second
Model Frame:	100A/160A/250A/630A/1000A/1250A/2000A/2500A/3000A
Color:	White with Blue
Quality:	High Performance
OEM:	Available
Distributor:	Can Be Negotiated
Product Name:	Automatic Transfer Switch (ATS)
