1kVA 2kVA off Grid Inverter 48VDC Home Solar System Inverter
| Price: |
US $ 60-80/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HD plus |
| Frequency: |
50Hz or 60Hz |
| Output Voltage Waveform: |
Modified Sine Wave |
| Transfer Time: |
15ms Typical, 20ms Max |
| Efficiency: |
>95% |
| Indicators: |
LCD+LED Display |
| Storage Temperature: |
-15c-55c |
| Protections: |
Low Battery, Over Charging, Over Load, Over Temp |
| Warranty: |
2 Years |
Product Description
1kva 2kva Off Grid Inverter 48VDC Home Solar System Inverter
Key features:♦ HD Plus Series AC/Solar charging Off grid Hybrid Inverter.♦ Built-in enhanced AC charger.♦ Built-in solar charger controller up to 40A.♦ LCD shows the solar capacity.♦ Selectable Input voltage ranges/AC charging current/ ACor solar charger priority.♦ Intelligent 3-stage charger control for efficient charging andpreventing overcharge.♦ Auto restart upon AC recovery.♦ LCD+LED display.♦ Multiple protections: low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection. Specifications| Parameters Model | HD Plus1K-12 | HD Plus2K-24 |
AC
Input | Nominal Power | 1KVA/720W | 2KVA/1300W |
| Input Voltage Waveform | Nominal input Voltage |
| Nominal input Voltage | 230VAC |
| Selectable Voltage Range | 165-270Vac±4%(Narrow Range) 85-270Vac±4%(Wide Range) |
| Max AC input Voltage | Max:270VAC |
| Frequency | 50Hz:or 60Hz |
AC
output | Output Voltage Waveform | Modified sine wave |
| Voltage Regulation (Bat. Mode) | 230VAC (+10% / -18%) |
Nominal Output
Frequency (Hz) | 50Hz or 60Hz (Auto detection) |
| Transfer Time | 15ms Typical, 20ms Max. |
Solar
charger | Charger mode | PWM |
| Maximum PV Array Power | 450W | 900W |
| Optimal Work Voltage Rang | 15VDC-18VDC | 30VDC - 36VDC |
| MAX. PV input Voltage | 55VDC |
| MAX. PV input Current | 40Amp |
AC
Charger | Charging Algorithm | 3-step charging |
| Nominal Charger Current | 15 Amp or 20Amp Selectable | 10Amp |
| Floating Charging Voltage | 13.7VDC | 27.4VDC |
| Over charge Protection | 16VDC | 32VDC |
| Efficiency | Efficiency (Battery Mode) | >80% |
| Efficiency (Line Mode) | >95% |
Battery
Voltage | Nominal DC input Voltage | 12VDC | 24VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC | 21VDC±0.6VDC |
| Low DC input shut-down | 10VDC±0.3VDC | 20VDC±0.6VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC | 32VDC±0.6VDC |
System
Parameter | Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD+LED Display |
| Over-Load Protection | 1min Load >110%,20s Load >120%,0s Load >150% |
General
Specifications | Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~55ºC |
| cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 276.7*245*97mm |
| Net Weight(kg) | 2.6 | 2.7 |

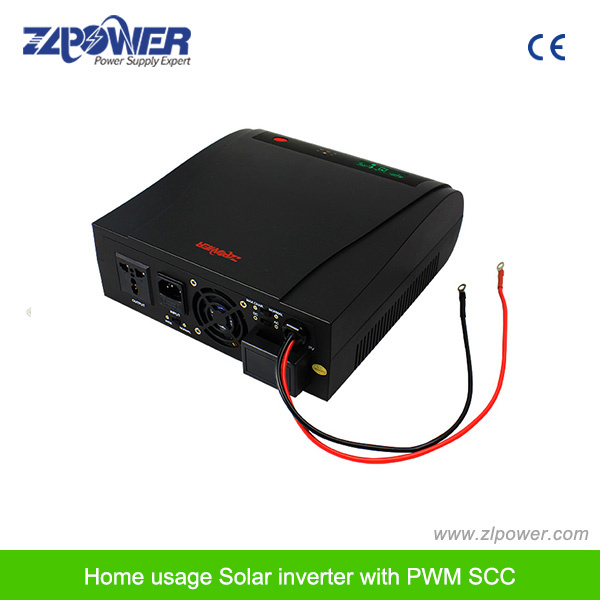

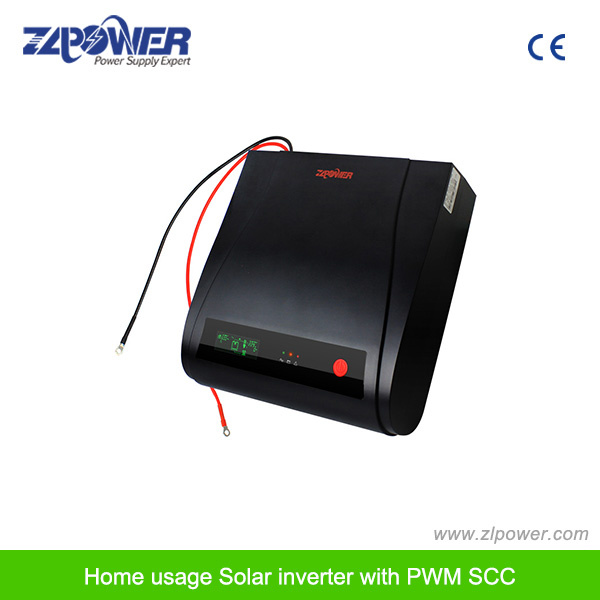

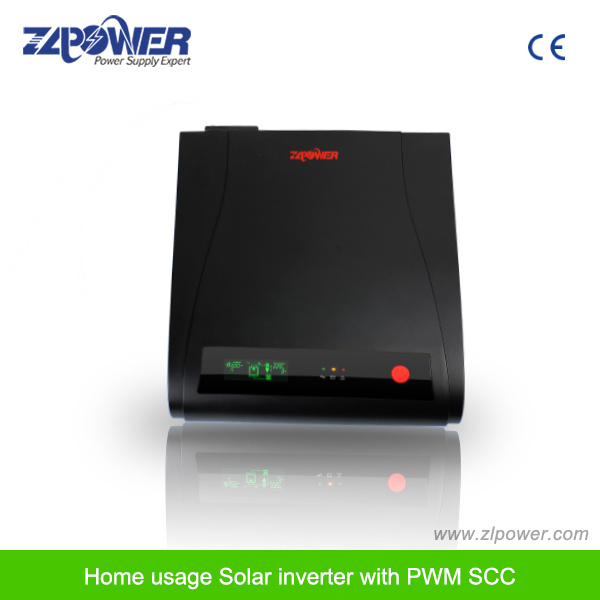

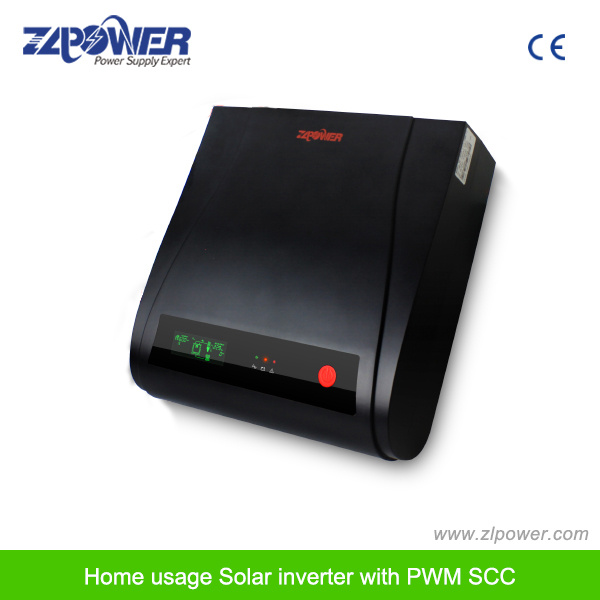

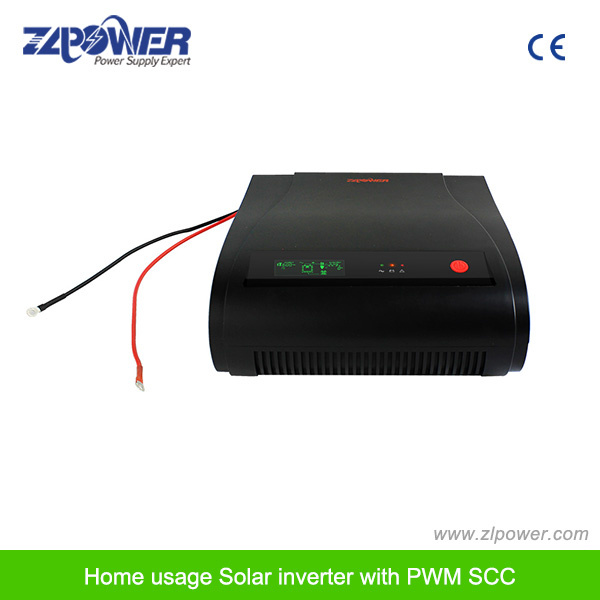

Photos
Delivery time:ΔShipped in 3-5 work days after recevied customer's payment.
