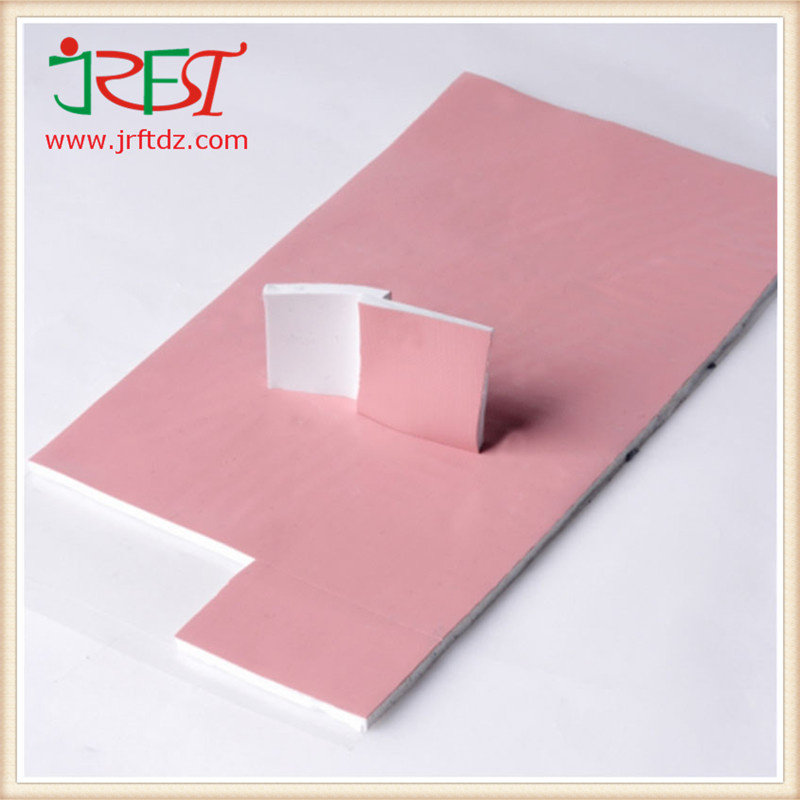

2.0W/M. K Thermal Conductive Silicone Insulation Pad

2.0w/m.k Thermal conductive silicone insulation pad

Applications:
1.LED lighting, lighting equipment
2.Household appliances, LCD display
3.Semiconductor and the radiating fin between
4.Communication product , smart phone, tablet
5.Desktop, notebook and other portable computer
6.Large power supply etc.

Performance:
1.High thermal conductivity : 2.0W/m-k
2.Stable performance, low thermal resistance, effectively improve the heat transfer speed
3.Low hardness, its viscosity high, easy to use
4.By UL and V-O certification standards

Specification:
Standard size : 310mm*310mm, 200mm*400mm, according to customer needs to cut the shape.
Basic thickness : 0.25mm*5.0mm, special thickness, size can be customized
Its slightly viscous, if need to strengthen the adhesive can according to customer's requirement .
Product color is mass production color, if need special color can be adjusted according to the actual situation.

PM200S high adhesive thermal conductive silicone sheets, mainly for the application of low fastening pressure requirements, low modulus of the polymer formed in the fiberglass base material, can be used as a filler at the interface between machine contact surface.
PM200S high adhesive low hardness ,enhanced breakdown voltage, electrical insulation good, meet ROHS and UL requirements of the environment, with high thermal conductivity.
PM200S with fiberglass cloth thermal conductive silicone sheet , mainly used for heating devices and fin or product casing without fastening device between the heat conduction.
