2.2m Prime Focus Rx Only Antenna

Name: 2.2m Prime Focus Rx Only Antenna
Brand: all-electronics-online.com
SKU: 818110915
Availability: InStock
Rating: 4.4 (97 reviews)

Price:	US $ 10-100/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXWJ2.2m
Type:	Prime Focus
Size:	2.2m
Polarization:	Linear/Circular
Drive Type:	Manual
Color:	White
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Usage:	Broadcasting Antenna
Material:	Al
Usage Occasion:	Fixed Earth Station Antenna
Operating Wavelength:	C/Ku Band
Sturcture Form:	Pole Mount

Product Description

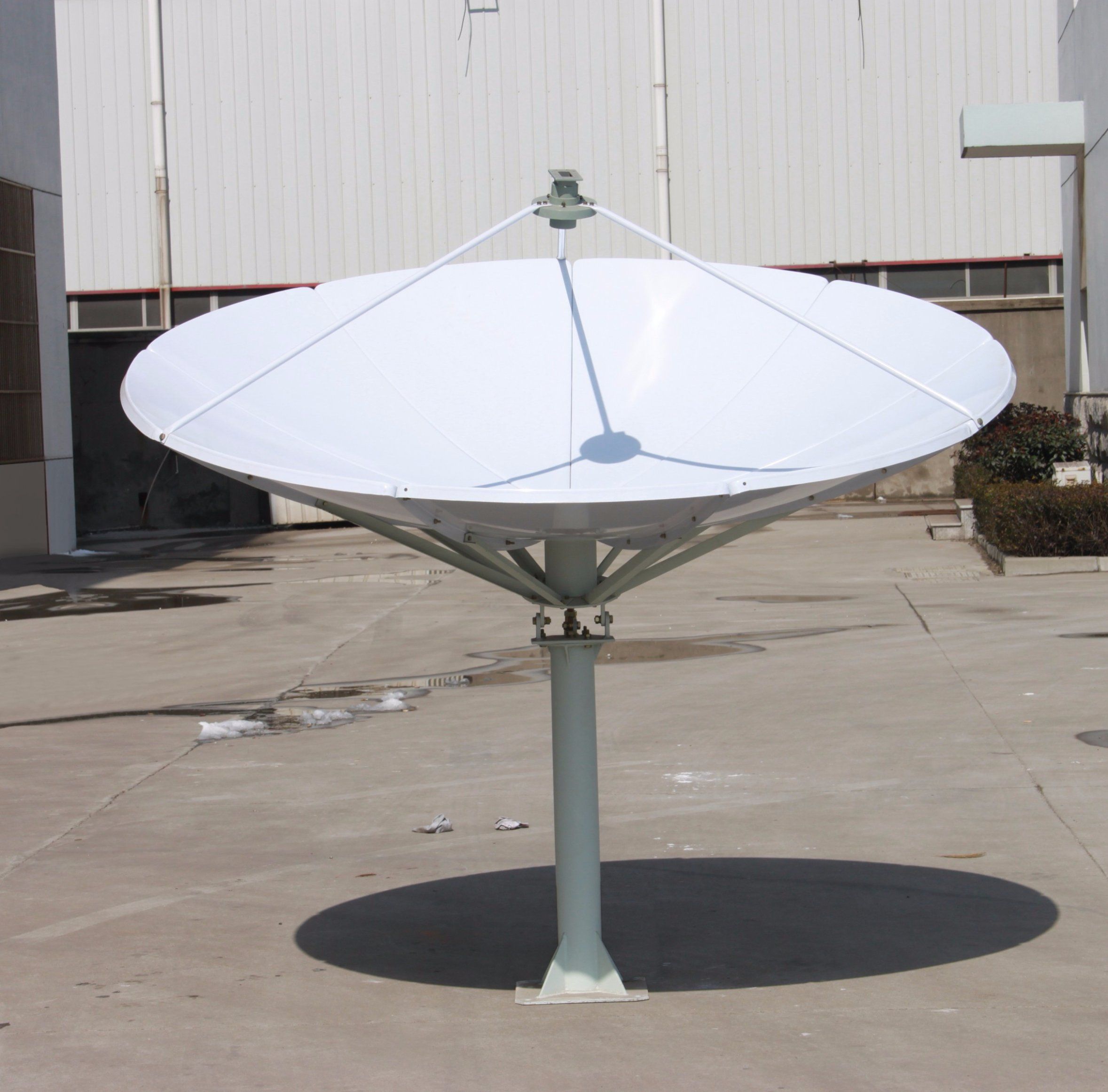

2.2m Rx Only Antenna

Features:
Aluminum reflector with high precision
Fashionable design, easy installation and adjustment
Factory king post pedestal assembled to reduce installation time
Excellent in stability

Main parts:
Feed horn
Panels
Reflector strut
Hub
Pole mount
Foundation kit

Options:
Dual linear polarization / dual circular polarization
Non-penetrating mount
Special anti-corrosion treatment for steel structure
Customized available

Specification of 2.2m Rx Only Antenna

R.F SPECIFICATIONS	C-Band		Ku-Band
	RECEIVE		RECEIVE
1. Frequency(GHz)	3.625-4.2		12.25-12.75
	3.4-4.2 ★		10.95-12.75 ★
2. Typical Gain(dBi)	37.30 at 3.8GHz		47.32 at 12.5GHz
3. VSWR	1.3:1		1.3:1
4. Beamwidth (-3dB)	2.243°		0.708°
5. Antenna Noise Temperature(K)	1/2Port Feed		1/2Port Feed
10°Elevation	37K		42K
20°Elevation	32K		37K
40°Elevation	28K		33K
6. Typical G/T at 20°EL	19.37dB/K(3.8GHz, 30K LNA)		27.02dB/K(12.5GHz, 70K LNA)
7. Feed Interface	CPR-229		WR-75
8. Feed Insertion Loss	0.15 dB		0.2dB
9. Axial Ratio (dB)	0.75dB		1dB
10. Cross Pol Isolation
On Axis	≥30dB		≥30dB
11. Sidelobes	CCIR.580-6		CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Prime-focus	1. Wind Loading, Operational (Maintain Precision)		45mph(72km/h)
2. Drive Type	Manual	2. Wind Loading, Operational (Decrease Precision)		60mph(97km/h)
3. AZ Travel	0 to 360°	3. Wind Loading, Survival (Fixed Heavenward)		125mph(200km/h)
4. EL Travel	5° to 90°	4. Ambient Temperature		-40°C to 60°C
5. POL Travel	±90°	5. Rain		100mm/h
6. Reflector Material	Precision formed aluminum	6. Relative Humidity		0 to 100%
7. Reflector Segments	9	7. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
8. Mount Type	Pole mount	8. Ice	25mm on all surface or 13mm on all surface with 130km/h wind gusts
		9. Shock and Vibration	As encountered during shipment by commercial air, sea or truck
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
