| Prod Model: |
LYD-T2.4-04 |
| Output Current: |
<6A/CH |
| Static Power Consumption: |
<1W |
| RF Frequency: |
2.4G |
| Connection Mode: |
Common Anode |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of origin: | Guangdong, China (Mainland) |
| Voltage: | 12V-24V |
| Type: | remote control |
| output: | 4 channels |
| working temperature: | -20-60 |
| net weight: | 88g |
| output power: | 2V:<288W, 24V:<576W |
Product DescriptionOne remote control many drivers can be worked in this solutions, no limits.
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
FeaturesSupply Voltage:DC12~24V
Output:4 CMOS output
Connection mode:common anode
Static power consumption:<1W
Output current: <6A/CH
Output Power:12V:<288W, 24V:<576W
RF frequency:2.4G
Remarks: One Remote have 4 Group, each Group can control many pieces controller,and each Group can be control separately, and 4 Group can be control together. Easy to used .
Function
1. It has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB LED Strip light, led module and so on.
2. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.
3. Working voltage: DC 12-24V. control distance: 30 meters
4. Control way: R G B three channels. Max load per channel: 6A.
5. 9 Dynamic modes, thousands static colors, Speed & brightness can be adjusted.
6. 1 remote control 4 parts receivers separately, it means you can control 4 area led strips in different modes. No quantity limits.

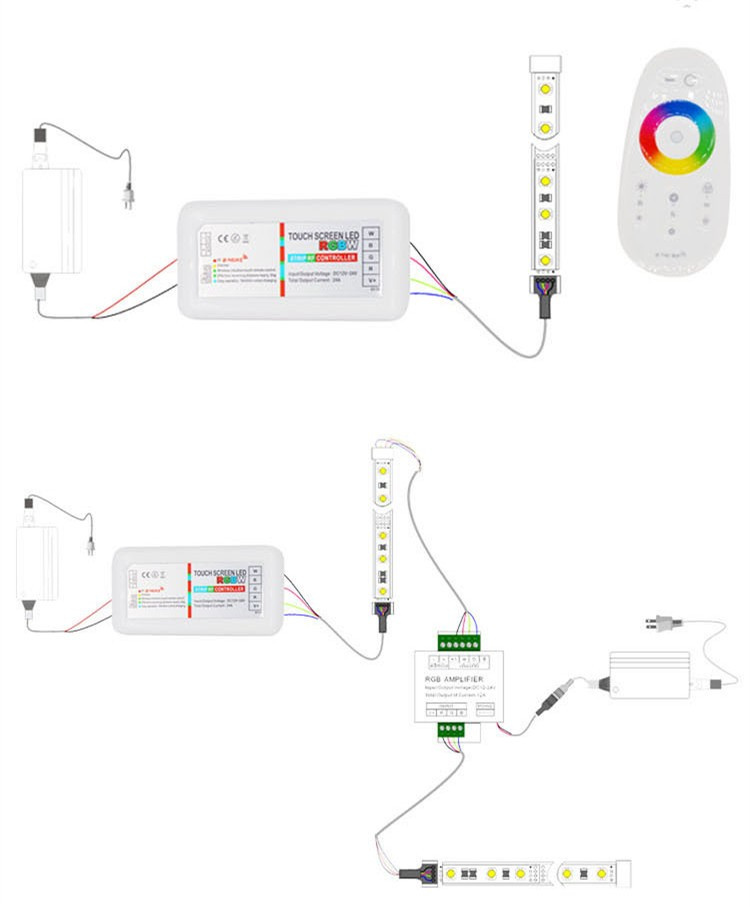

Installation1. Link the strips and power, long press any "zone ON"(1,2,3,4), Flash White color 6 times, means paired success, now you can control the led strips.
2. Relink the power, long press the "Zone ON"(1,2,3,4), Flash White color 6 times, means unpaired success, now you can't control the led strips.
3. Add more drives in 1 zone, read step 1.
4. Reduce more drivers in 1 zone, read step 2.
