2.54mm Pin Header Connector, with Maximum Current Ratings of 3A Per Contact

Name: 2.54mm Pin Header Connector, with Maximum Current Ratings of 3A Per Contact
Brand: all-electronics-online.com
SKU: 609254974
Availability: InStock
Rating: 4.9 (36 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PIN Header series 011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male
Application:	PCB

Product Description

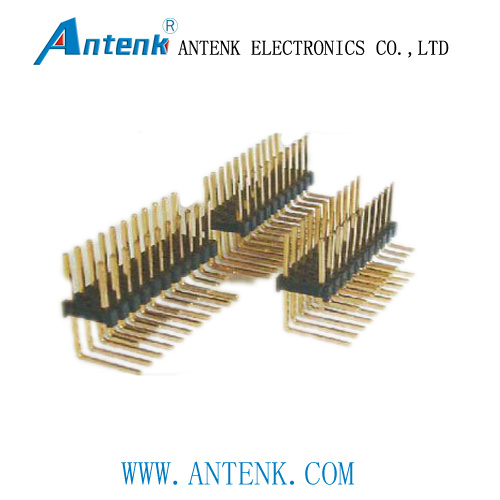

2.54 Pin Header in 2.54mm Pitch, with Maximum Current Ratings of 3A Per Contact

Materials:
Contact material: Brass
Insulator material: Black polyester UL94V-0
Standard: PBT + 30%G
Electronical:
Current rating: 3 AMPS/contact maximum
Contact resistance: Lesser than or equal to 20M Ohms/contact
Insertion resistance: Greater than or equal to 1, 000M Ohms at V: 100V
Withstanding voltage: 550V AC/minute
Mechanical:
Operating temperatures: Gold-plated: -50 to +105 degrees Celsius
Tin-plated: -40 to +105 degrees Celsius
Soldering temperatures: +260 degrees Celsius, 5s maximum.

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
