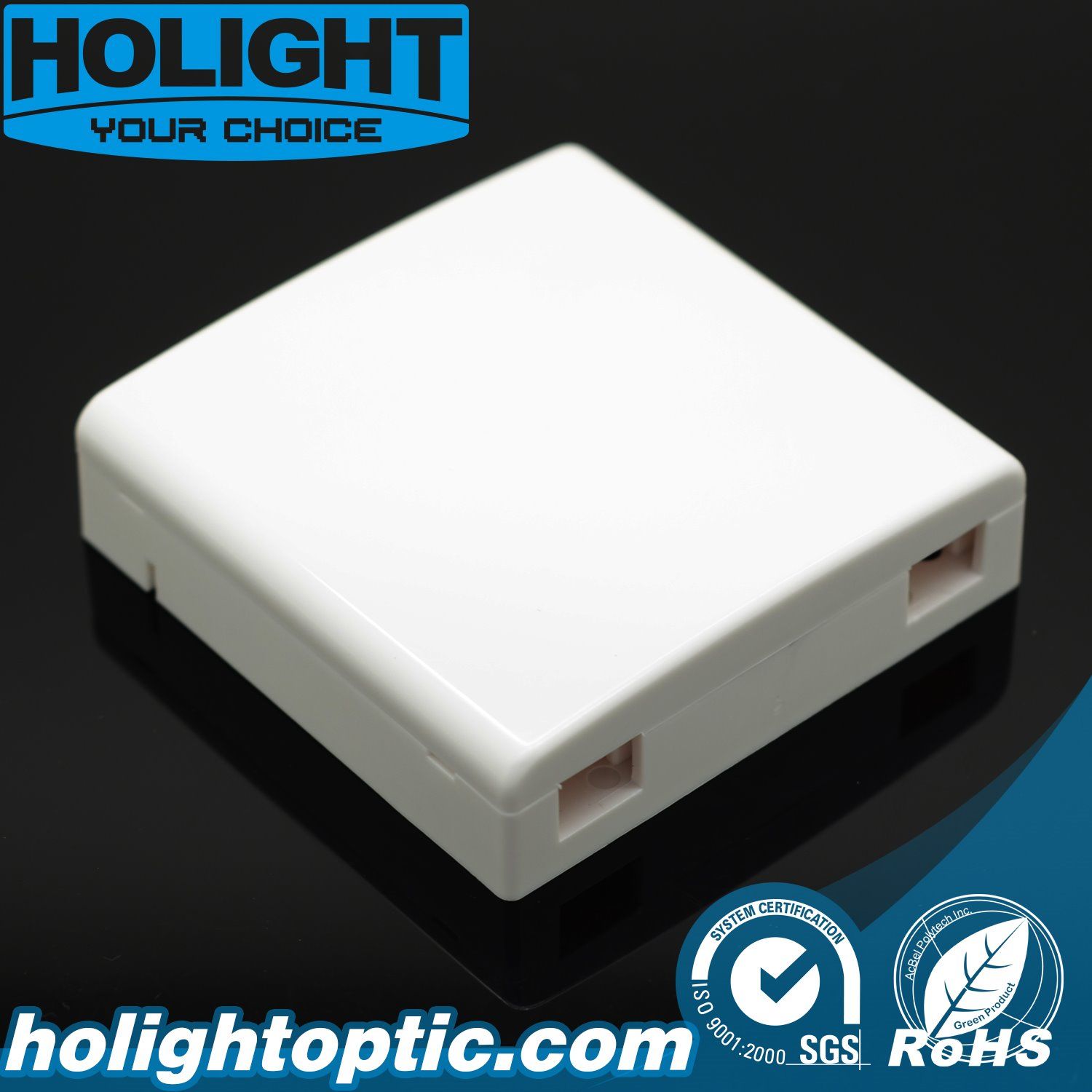

PRODUCT NAME : 86 Type Fiber Faceplate/FTTH Fiber Outlet Box/Fiber Optic Socket

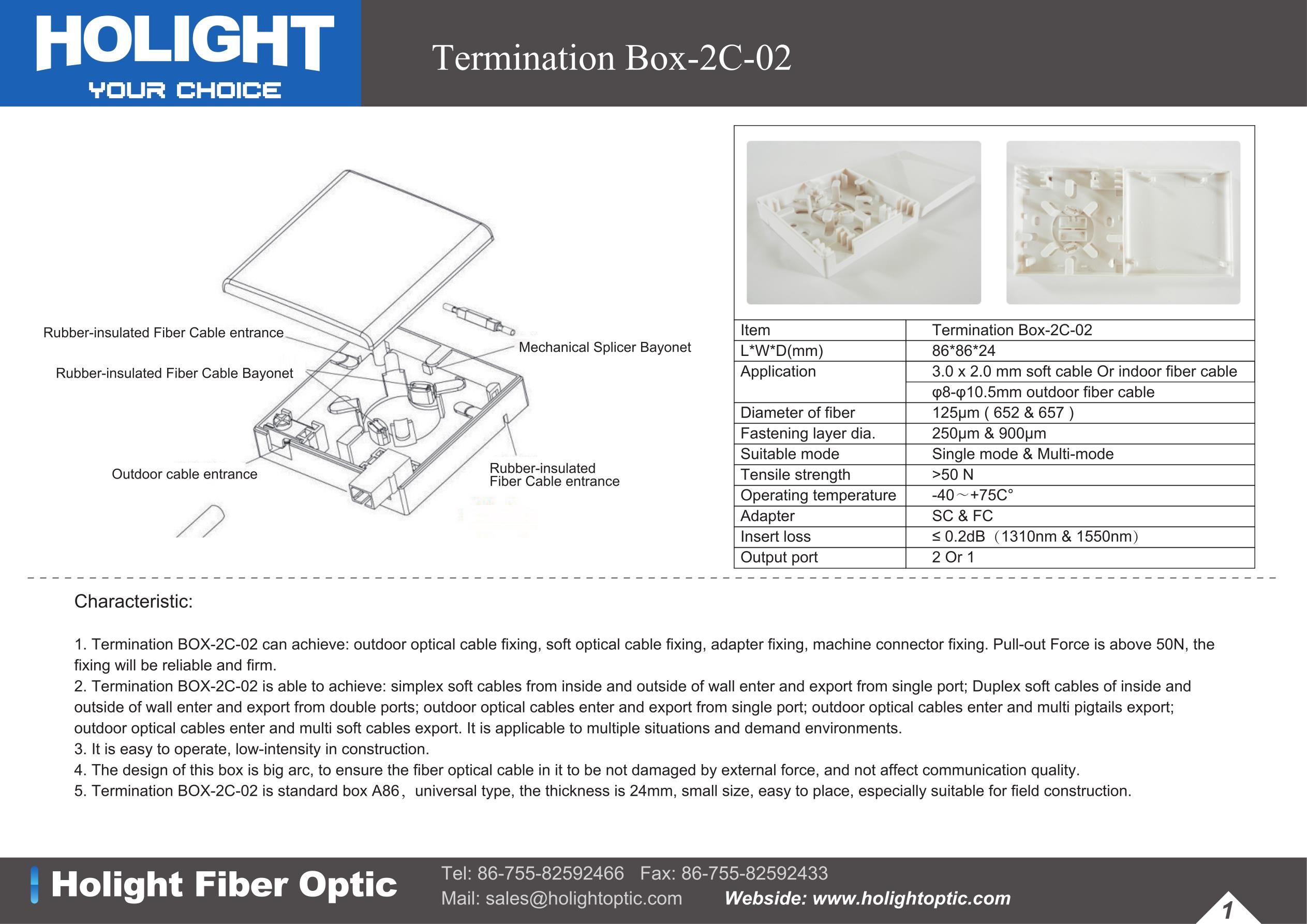

DESCRIPTIONHFP8002(formerly known as Termination Box-2C-02) employs a compact plug-in design, combines a Integration, Multi-function, Modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.
FEATURES· Applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments.
· The clasp design of the cover has greatly reduced the installation strength.
· It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.
· Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC and SC/FC are usable.
· The big-diametered wrapping post in the box protects radically in an omnibearing way..
· Dimension:86mm×86mm×24mm
· Material: ABS
| Application | 3.0 x 2.0 mm soft cable Or indoor fiber cable |
| | φ8-φ10.5mm outdoor fiber cable |
| Diameter of fiber | 125μm ( 652 & 657 ) |
| Fastening layer dia. | 250μm & 900μm |
| Suitable mode | Single mode & Multi-mode |
| Tensile strength | >50 N |
| Operating temperature | -40~+75C° |
| Adapter | SC & FC |
| Insert loss | ≤ 0.2dB(1310nm & 1550nm) |
| Output port | 2 Or 1 |
CONFIGURATION| Model | Adaptor | Pigtail | Capacity(Core) |
| HFP8002-2 | - | - | 2 |
| HFP8002-2SU | SC/UPC Simplex *2 | - | 2 |
| HFP8002-2SA | SC/APC Simplex *2 | - | 2 |
| HFP8002-1SU | SC/UPC Simplex *1 | - | 1 |
| HFP8002-1SA | SC/APC Simplex *1 | - | 1 |
| HFP8002-UP | SC/UPC Simplex *1 | 1 x G657A. Ф0.9mm,0.5m | 1 |
| HFP8002-AP | SC/APC Simplex *1 | 1 x G657A. Ф0.9mm,0.5m | 1 |
FAQ
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: HOLIGHT take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, HOLIGHT follow the company's instructions and finish the shipping.
7. How can you guarantee the delivery time?
1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
9. What is your quality control for your fiber optic product ?

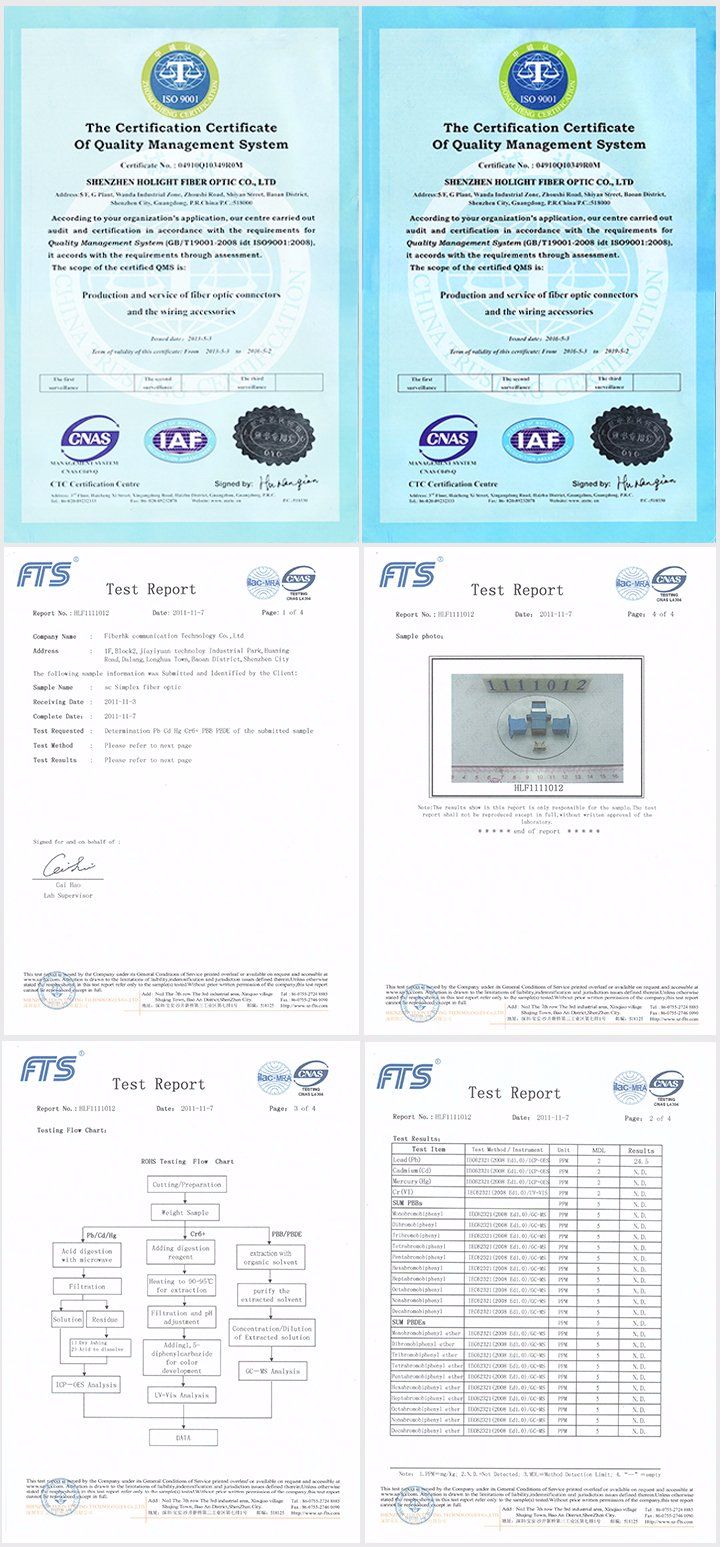

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
10. Why choose HOLIGHT Fiber Optic to cooperate?

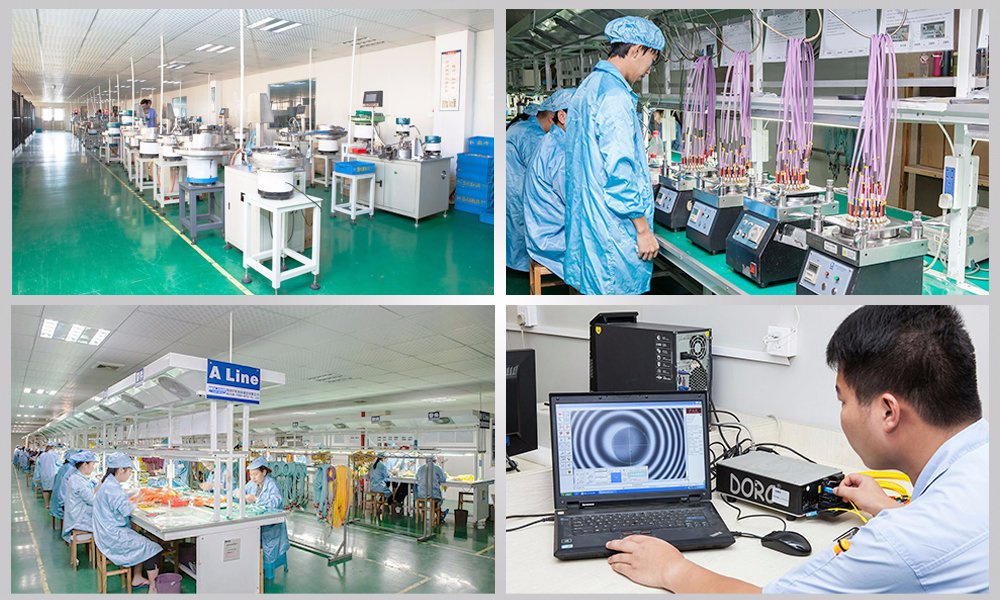

1. We have first-class production line and strict quality management system.
