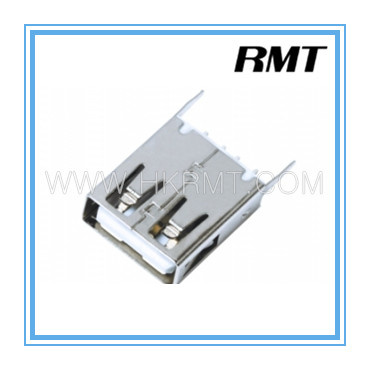

2.0 USB Connector (USB223-0511-12201R)

Name: 2.0 USB Connector (USB223-0511-12201R)
Brand: all-electronics-online.com
SKU: 778124275
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

1.MATERIAL:
1.1 Housing:thermoplastic plastics
1.2 terminals:Copper Alloy
Gold plated in contact area:
Tin plated in termination
Nickel Plated overall
1.3 Shell:Steel&Copper Alloy
Nickel Plated overall

2.ELECTRICAL CHARACTERISTICS:
2.1 Rating Current :1.5 Ampere
2.2 Rating Voltage :30 V Max
2.3 Contact Resistance:30 Milli ohms
2.4 Insulation Resistance:1000 Mega ohms Min.

3.MECHANICAL CHARACTERISTICS:
3.1 Connector Mating force:35N MAX(3.57Kgf)
3.2 Connector Unmating force:10N min(1.02Kgf)
3.3 Durability:1500Cycles.

4.ENVIRONMENT CHARACTERISTICS:
4.1 Operating temperature:-0ºC to +50ºC
4.2 Storage temperature:-20ºC to +60ºC

Prod Model:	USB223-0511-12201R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Female
Application:	FPC
