| Prod Model: |
LYD-QC20 |
| Output: |
3 CMOS Open Drain Output |
| Output Current: |
<4A/CH |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| Application: |
Audio / Video Players |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| output: | 3 CMOS Open drain output |
| output current: | <4A/CH |
| Connection mode: | Common anode |
| Static power consumption: | <1w |
| Output Power: | 12V:<144W, 24V:<288W |
| RF frequency: | 433.9M |
| Brand name: | louita |

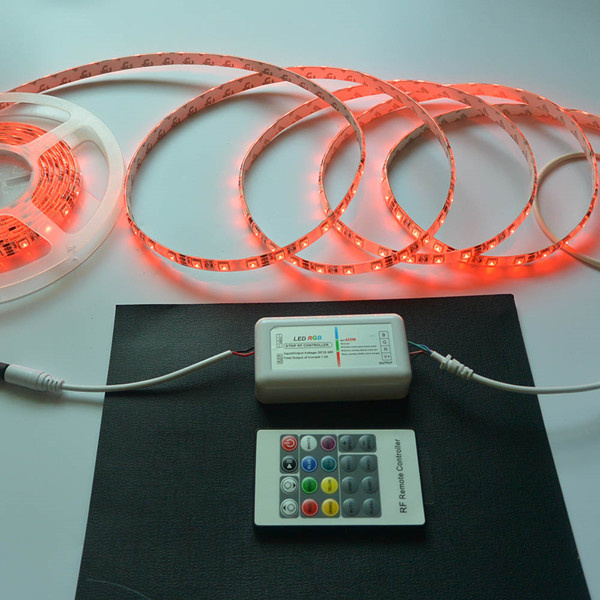

Product DescriptionLED RGB Strip RF Controller With 20 keys Remote, 12V/12A adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Specifications:Controller case material: Plastic
Working temperature: -20-60c
Supply voltage: DC12V ~ 24V
Output: 3 channels
Connecting mode: common anode
Remote Control Battery: 1 * CR2025 Battery (not included)
Static power consumption: <1W
Output current: <4A /ch
Output power: 12V: <144W, 24V: <288W
Controller size: approx. 8.5 * 4.5 * 2.3cm / 3.3 * 1.7 * 0.9in
Controller weight: approx. 41g / 1.46oz
Package size: approx. 9.5 * 6.2 * 4.0cm / 3.7 * 2.4 * 1.6 in
Package weight: approx. 82g / 2.91oz
Direction for use:Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Adopt wireless control method, 20 keys in total, function of each button as below:
Press each time, the green light flash one time, indicating that has entered the next state.
Standard color changes as follows:
| Brightness + | Brightness - | pause | ON/OFF |
| Static red | Static green | Static blue | Static white |
| Static orange | Static yellow | Static Cyan | Static purple |
| Auto run | Three color jump | Three color fade | Speed + |
| Flash | Seven color jump | Seven color fade | Speed - |
