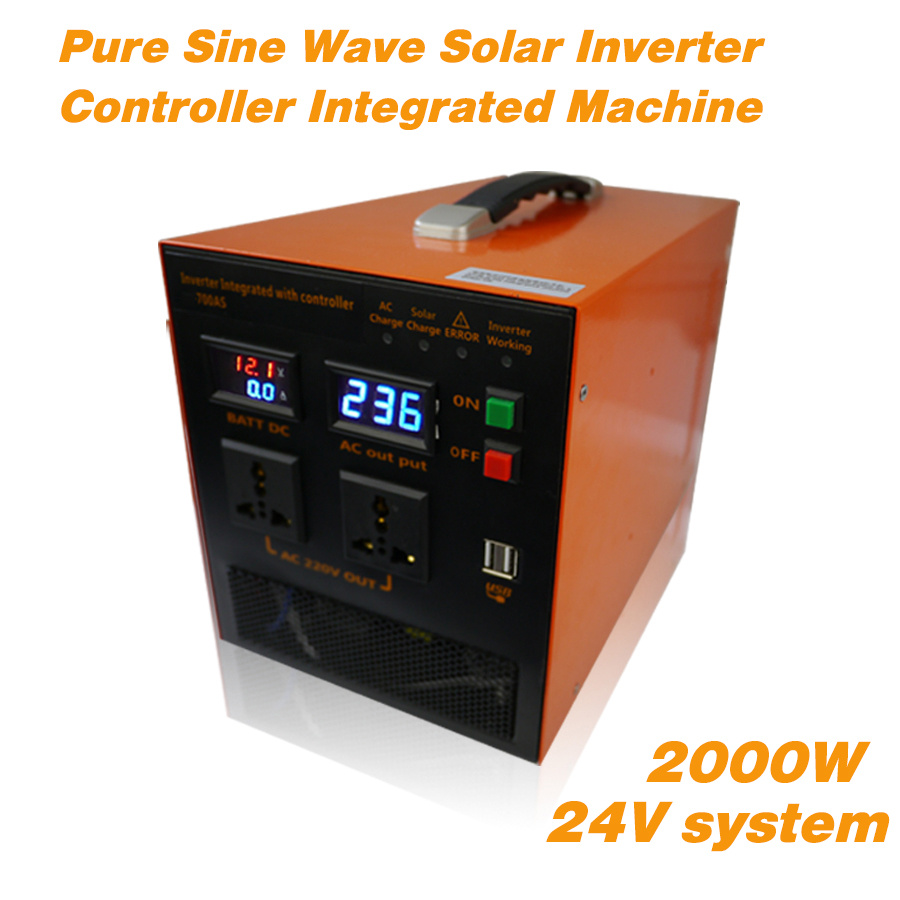

2000W Pure Sine Wave Inverter Integrated with Charger

Name: 2000W Pure Sine Wave Inverter Integrated with Charger
Brand: all-electronics-online.com
SKU: 774106695
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 420/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KS-2000AS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output Capacity:	2000W
Peak Power:	2800W
Output Mode:	Single Phase
USB Output (DC):	5V 2A
Application:	Commercial
Specification:	Normal

Product Description

Pure Sine Wave Inverter Integrated with Charger

Introduction
inverter with charger has built-in pure sine wave inverter circuit. The design of it is based on the intelligent chip circuit. It has AC charge and solar charge. The features of the integrative machine are high efficiency, stable, full protection functions, easy installation and operation. It is suitable for all kinds of places which need to convert DC into AC, especially suitable for solar photovoltaic power system.

Protections
Output short circuit protection Input reverse polarity protection Input low voltage protection Input over voltage protection Over temperature protection

Technical Specification

Model	KS-700AS	KS-1000AS	KS-1500AS	KS-2000AS	KS-3000AS
Nominal battery voltage (DC)	12V		24V		48V
Input voltage range (DC)	10.2~16.2V		20.4~32.4V		40.8~64.8V
Rated output capacity	700W	1000W	1500W	2000W	3000W
Peak power	950W	1400W	2100W	2800W	4200W
Output voltage (AC)	210V~230V
Output mode	Single phase
Output wave	Pure sine wave
Frequency	50Hz±0.2%
Total harmonic distortion	THD≤3%(resistive load)
No load current	≤0.9A
Max. efficiency	92.7%
Low voltage protect value	10.2V		20.4V		40.8V
Over voltage protect value	16.2V		32.4V		64.8V
USB output (DC)	5V 2A
AC charge voltage (AC)	165V-265V
AC rated charge current	15A
Solar panel charge voltage	15V-22V		30V-44V		60V-88V
Solar panel charge current	20A	30A	30A		30A
Cut off charge voltage	14.7V		29.4V		58.8V
Working temperature	-20ºC~+65ºC

Notes:
*Model suffix "A" represents the inverter with AC charge, "S" represents the inverter with solar charge, if the suffix without "A" or "S" means the inverter without the corresponding function.
*Parameters may customized by customers. We keep right to change and update without prior notice.
