Prod Model:	CY-JMS-12V20
Contact Load:	200A 250VAC
Contact Material:	Agsno2
Contact Type:	1b(1A)
Contact Resistance:	≤2mΩ
Action Time:	≤30ms
Insulation Resistance:	≥1000mΩ (500VDC)
Max Action Frequency:	1200 OPS/H
Shock Tolerance:	10-55Hz 1.0mm
Single Coil:	12W
Dual Coil:	24W

Product Description

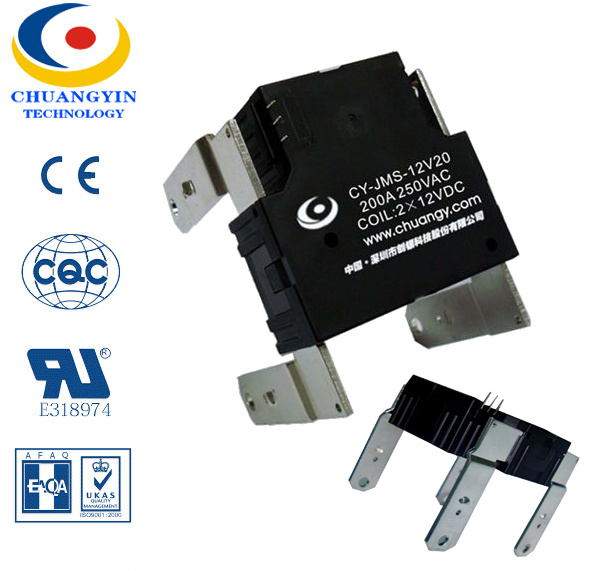

Magnetic Latching Relay 200A 250VAC

Characteristic

1.Only pulse excitation, single

2.Strong load capacity, can be switched 200A / 250VAC

3.Low power consumption, small volume

4.Under 3000A/10ms impact current, the product can work normally

5.According to customer requirements for welded attachment

Coil Specification

Rated Voltage	Action Voltage (VDC)	Max Coil Voltage (V)	Coil Resistance x (1±10%)Ω		Rated Power
Rated Voltage	Action Voltage (VDC)	Max Coil Voltage (V)	Single Coil	Double Coil	Rated Power
12	9.6	24	12	6+6	Single coil 12W Double coil 24W
24	19.2	48	48	24+14
48	38.4	96	192	96+96

Technical Specification

Contact Type	1B(1A)	Insulation Resistance		≥1000MΩ (500VDC)
Contact Material	AgSnO2	Dielectric Strength	Coil-Contact	≥4000VAC 1min
			Contact-Contact	≥2000VAC 1min
Contact Load(resistance)	200A 250VAC	Action Time	Close	≤30mS
			Open	≤30mS
Contact Resistance(mΩ)	≤2mΩ	Action Impulse Duration		50mS to 240mS
Max. Switching Voltage	250VAC	Life(time)	Electrical Life(ops)	1x10^4(Circle)
			Mechanical Life(ops)	1x10^6(Circle)
Max. Switching Current	200A	Max Action Frequency		1200ops/h
Max. Switching Power	50KVA	Vibration Tolerance		98m/s^2
Short Time Impact Current	3000A 10ms No sinter 6000A 10ms No explosion	Shock Tolerance		10 to 55Hz 1.0mm
Ambient Temperature	-40ºC to +70ºC	Relative Humidity		90%RH, 40ºC

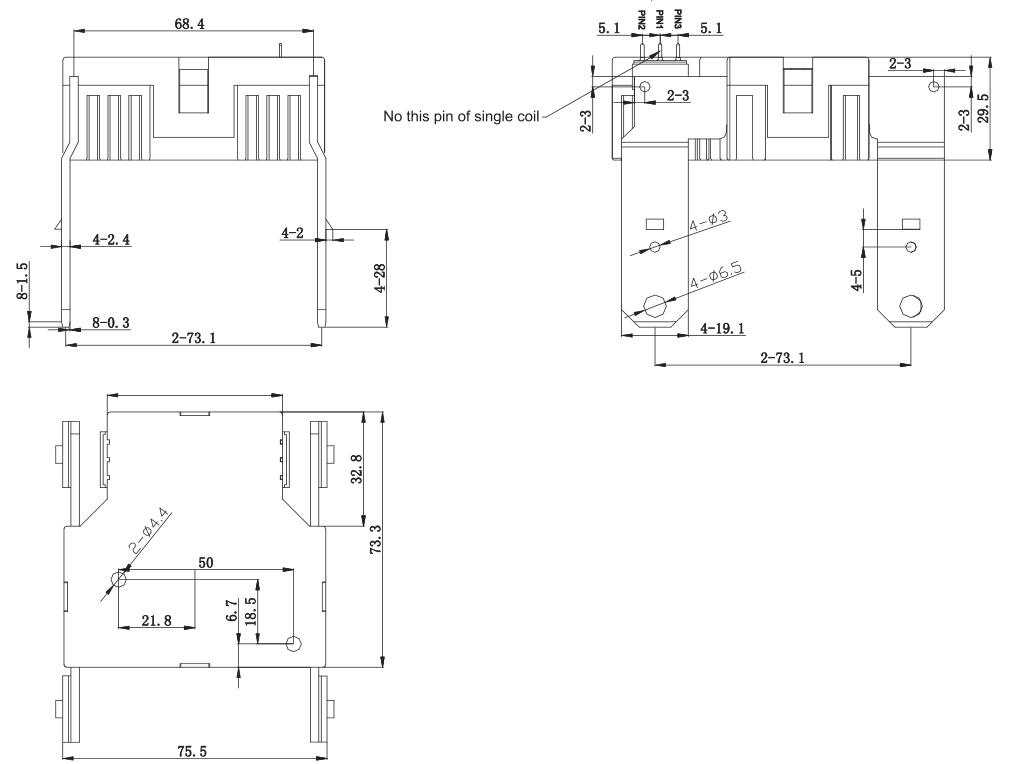

Dimension

Wiring Diagram
