200A/5A with Split Core Current Transformer (H-CT005-24D)

Name: 200A/5A with Split Core Current Transformer (H-CT005-24D)
Brand: all-electronics-online.com
SKU: 703754742
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 11-12.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

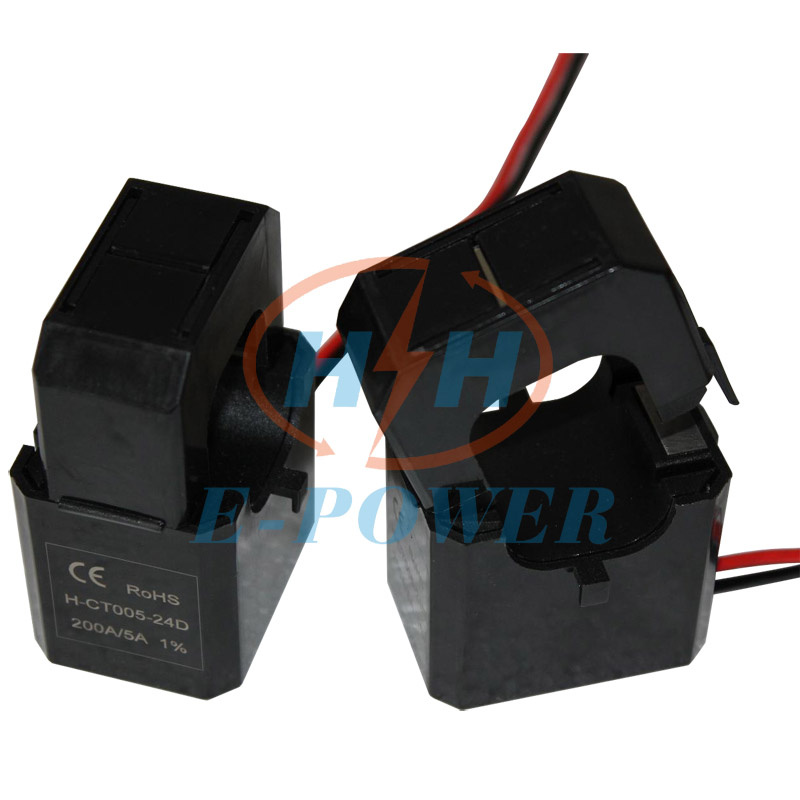

The H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.

1, Electrical Specifications

1), Rated Primary Current(AMP. ) 50/60Hz: 240nom(1~240A max)

2), Turn ratio: Np: Ns=1: 40

3), Current Ratio: 200A/5A

4), D. C. Resistance at 20 º C: 1.5Ω MAX

5), Accuracy @RL=1VA: 0.5%

6), Phase error at rated current range: ≤ 0.5°

7), Operating Temperature Range: -40~70º C

8), Storage Temperature Range: -45~85º C

9), Dielectric Withstanding Voltage(Hi-pot): 3.5KV/1mA/1min

10), Impulse Withstand Voltage: 5KV Peak

11), Insulation Resistance: DC500V/100MΩ Min

2, Applications.
A, Portable/Curret instruments.

B, Sub-metering.

C, Monitor Motor Loads

3, Feature
A, Small size.

B, Low cost

C, High secondary turns.

D, Secure locking hings

E, Full RoHS compliant

F, Mounting easy.

4, Material List:
NO	ITEM	DESCRIPTION	UL Card	MATERIAL	NOTE
1	CORE	UU53	/	SILLICON STEEL
2	CASE	PP3307	E235269	PP
3	BOBBIN	D202G15@	E107536	PBT
4	WIRE	2UEW	E164502	UEW/U
5	LEAD WIRE	UL1007 16AWG	E189674	PVC	80º C 300V
6	SOLDER	99.3%Sn0.7%Cu	/	Sn

Prod Model:	H-CT005-24D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	H-CT005-24D
Current Ratio:	200A/5A
Rate Primary Current:	5A
Max Primary Current:	240A AC
Secondary Turns:	40
Wire Lead:	AWG#22
DC Resistance:	1.5ohms +/-20% at 20
Frequency:	50/60Hz
Brand:	E-Power
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Application:	Lighting
Type:	Current Transformer
Phase:	Single
