Product Description:

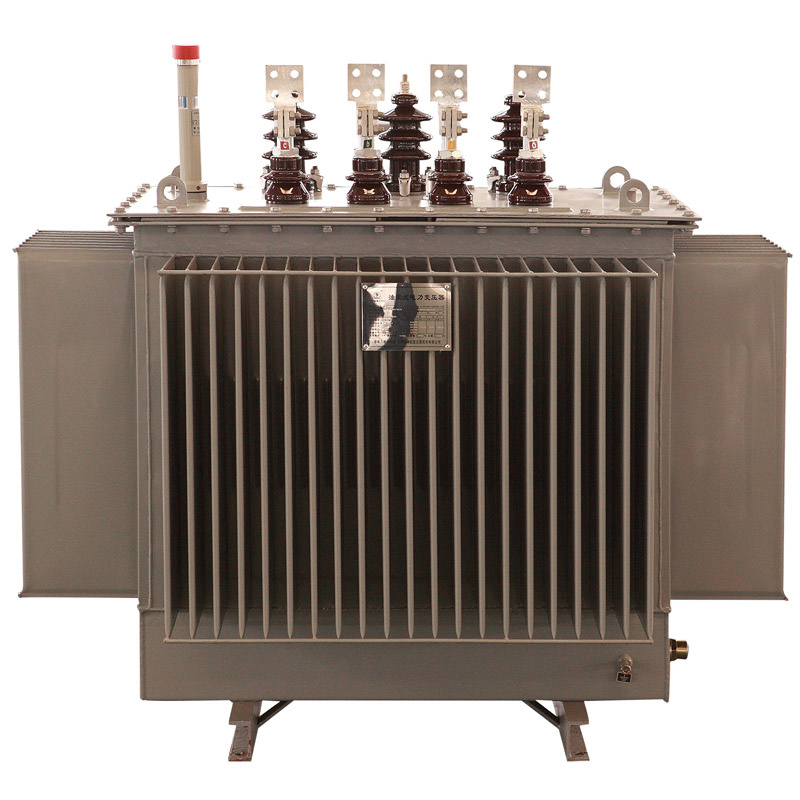

S11 serie of oil immersed transformers with obvious energy saving effect, can be widely used in industry and agriculture of urban and rural power grid.
The core can be laminated or rolled by high technology, Improving no-load performance and reducing noise.
The iron core is made of high quality cold-rolled silicon steel sheet to reduce iron loss, while the varnished wire is made of high purity oxygen free copper to reduce the copper loss.
| Parameter(S11-30~1600/10 Oil-immersed transformer) |
Rating
(kVA) | HV
(kV) | LV
(kV) | Connection
symbol | No-load
Current(%) | No-load
Losses(W) | On-load
Losses(120ºC) | short-circuit
impedance(%) | Track
Distance | Body
weight
(kg) | Oil
(kg) |
|
| 30 | 6
6.3
10
10.5
11
±5%
or
±2×2.5% | 0.4 | Dyn11
Yyn0
Yzn11 | 2.0 | 100 | 630/600 | 4 | 400.0 | 130 | 55 |
| 50 | 1.9 | 130 | 910/870 | 200 | 75 |
| 63 | 1.8 | 150 | 1090/1040 | 250 | 75 |
| 80 | 1.6 | 180 | 1310/1250 | 280 | 80 |
| 100 | 1.5 | 200 | 1580/1500 | 320 | 90 |
| 125 | 1.4 | 240 | 1890/1800 | 340 | 95 |
| 160 | 1.3 | 280 | 2310/2200 | 550.0 | 440 | 110 |
| 200 | 1.2 | 340 | 2730/2600 | 520 | 130 |
| 250 | 1.1 | 400 | 3200/3050 | 610 | 150 |
| 315 | 1.0 | 480 | 3830/3650 | 670 | 160 |
| 400 | 1.0 | 570 | 4520/4300 | 840 | 190 |
| 500 | 0.9 | 680 | 5410/5150 | 990 | 210 |
| 630 | Dyn11
Yyn0 | 0.8 | 810 | 6200 | 4.5 | 660 | 1140 | 280 |
| 800 | 0.7 | 980 | 7500 | 1430 | 320 |
| 1000 | 0.6 | 1150 | 10300 | 820 | 1470 | 360 |
| 1250 | 0.5 | 1360 | 12000 | 1770 | 400 |
| 1600 | 0.5 | 1640 | 14500 | 2210 | 440 |
