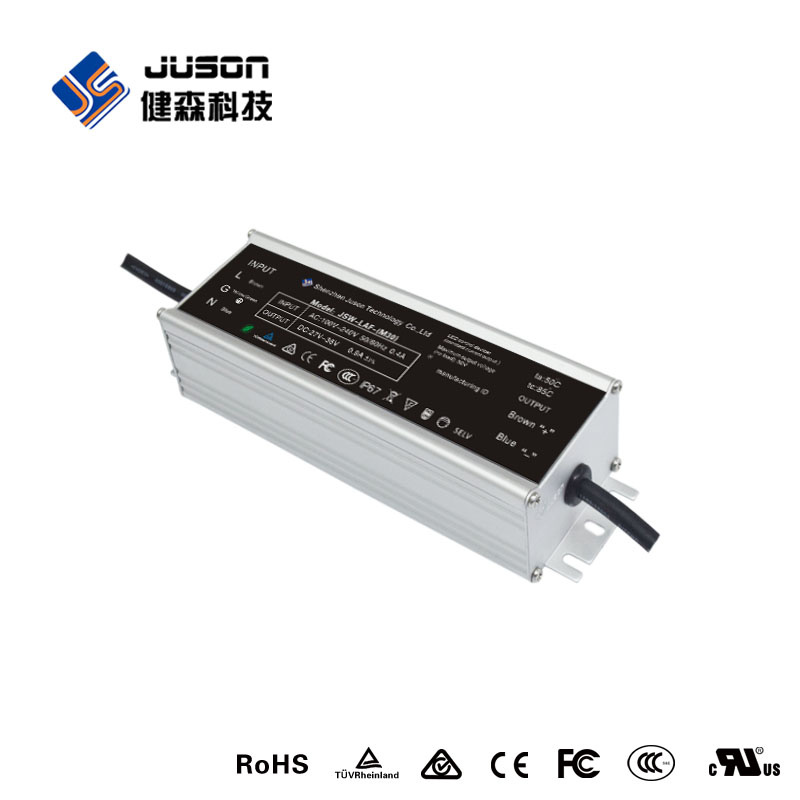

2017 30W Waterproof Power Supply 0.9A for LED wall washer
Specifications of Juson technology 30W led waterproof driver | model | output DC
power(W) | Vout
Range (vdc) | Iout Range
(A) | default constant
current output(A) | voltage
regulation | efficiency |
| JSW-LAF-(30) | 30W | 12-24V | 1.27-2.4A | 1.5A | ±3% | 94.5% |
| JSW-LAF-(M30) | 30W | 27-36V | 0.84-1.1A | 0.9A | ±3% | 95% |
| JSW-LAF-(M30A) | 30W | 35-50V | 0.62-0.84A | 0.7A | ±3% | 95% |
| JSW-LAF-(M30B) | 30W | 54-64V | 0.48-0.53A | 0.5A | ±3% | 95.5% |
| JSW-LAF-(M30C) | 30W | 65-107V | 0.29-0.45A | 0.35A | ±3% | 95.5% |
| JSW-LAF-(M30D) | 30W | 86-143V | 0.21-0.33A | 0.25A | ±3% | 96% |
| JSW-LAF-(M30E) | 30W | 129-214V | 0.15-0.22A | 0.2A | ±3% | 96% |
Features of Juson Technology LED waterproof power supply 1) Constant current power supply specifically designed for outdoor LED luminaires
2) 5 years warranty,problem occurred by power supply we can even pay you a whole new lamp
3) anti - Electrical surge voltage 6000-12000v,anti - high voltage 4000-6000v
4) Power efficiency >0.95,PF>0.98,active built-in PFC,focused on high-end power supply
5) Cooling by free air convection,100% full load aging test for 48-36hours before it being packed
6) Rubycon capacitor,Fairchild mosfet,electronic components all come from international brand,
ensuring the quality from beginning
7) IP67 suitable for dry,wet,rainy all types conditions

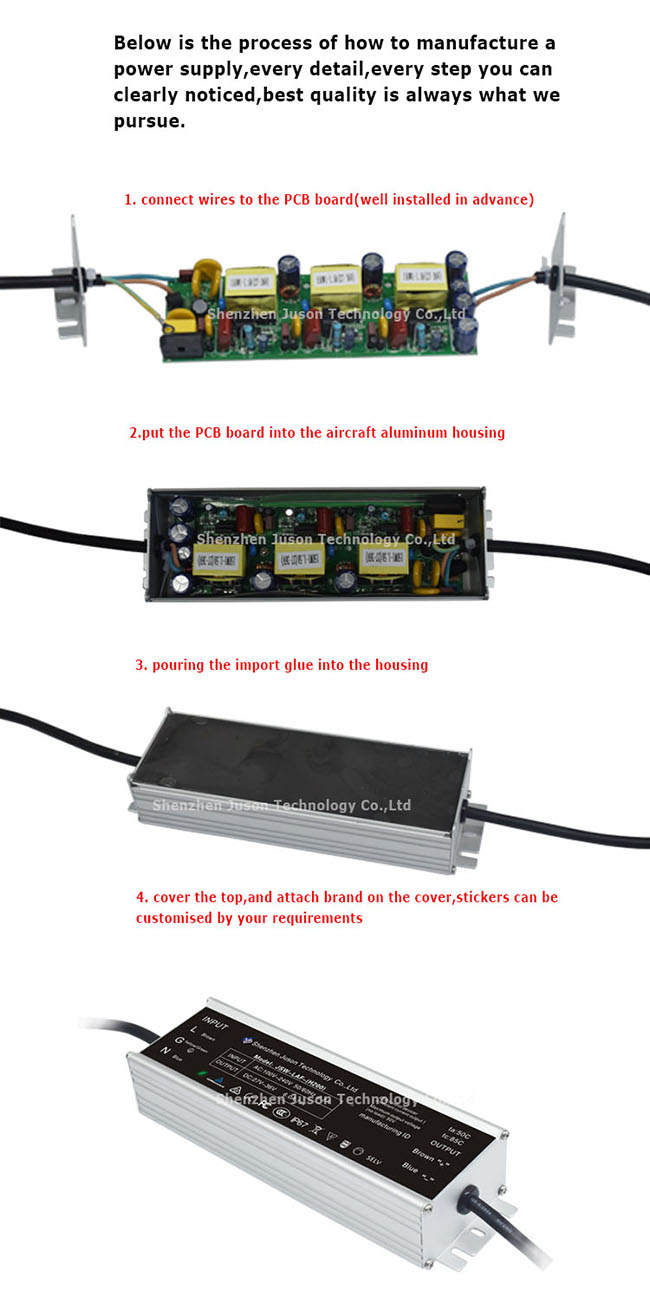

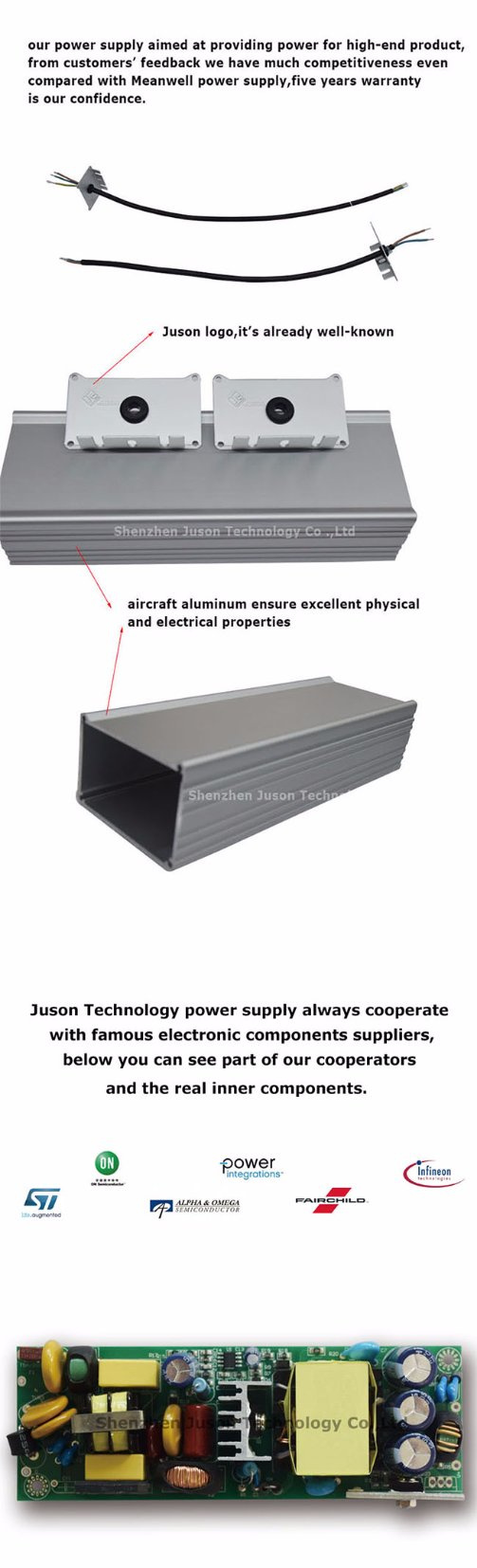

Details of Juson Technology LED waterproof power supply
Why you need to choose LED constant current power supply ?
LED is the abbreviation of light emitting diode,when the outside temperature increase,the resistance of diode will decrease,if you supply constant voltage to the LED,then the current of LED will increase rapidly,all we know that LED should work at stable conditions,the changing current will shorten its lifespan and can also lead much heat to the LED,the increase of temperature will exacerbate light wane,so we need to use constant current LED driver to ensure the lifespan of your LED luminaires.

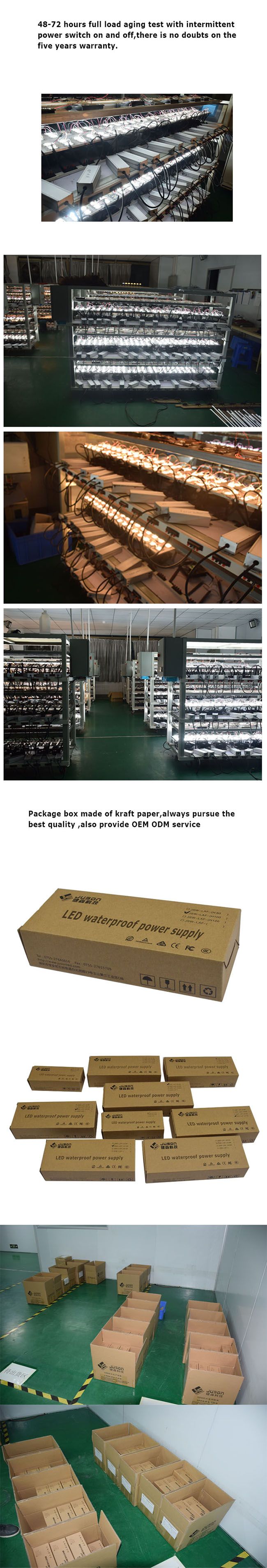

Quality control of Juson Technology LED waterproof power supply

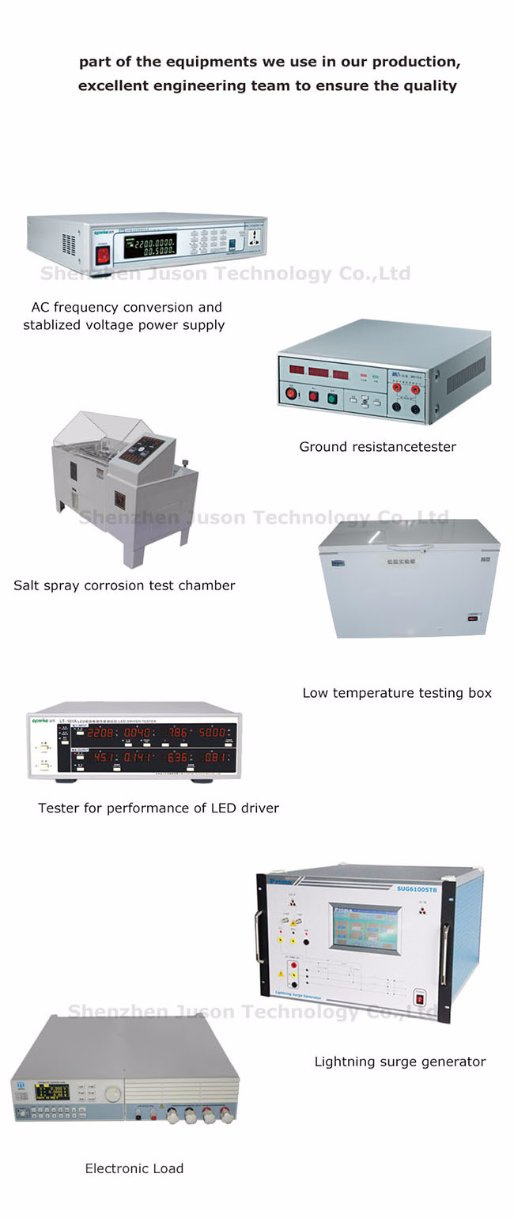

Equipment of Juson Technology LED outdoor power supply

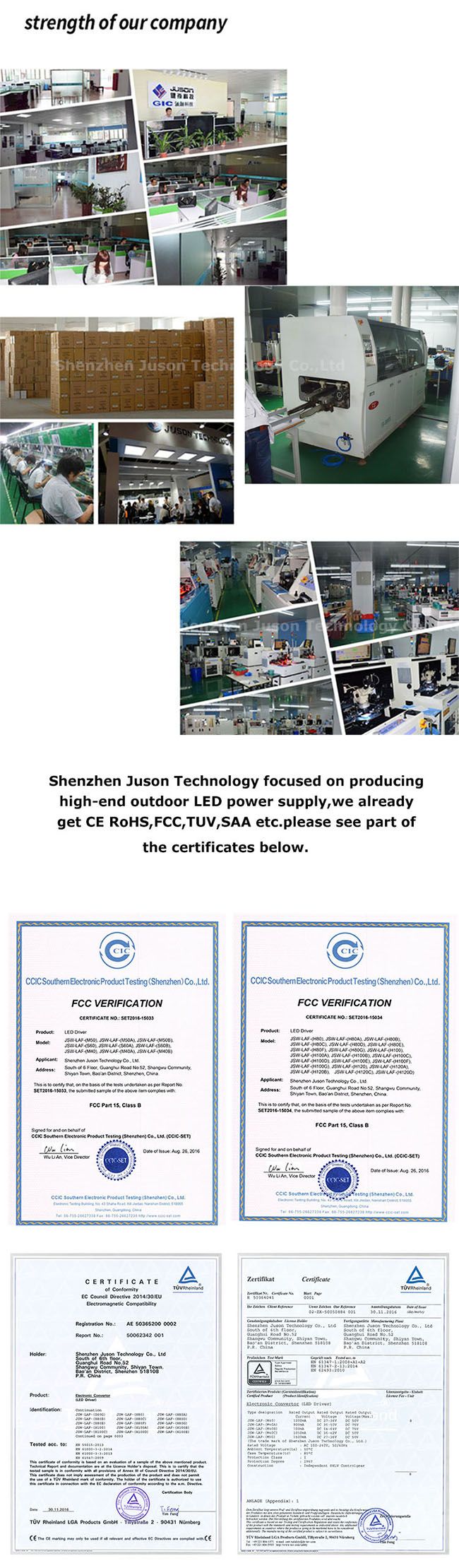

Introduction of Shenzhen Juson Technology Co.,Ltd
Shenzhen Juson Technology Co.,Ltd established in 2010,the mission of our company is to provide the best power solution for the outdoor LED luminaires,we always focus on manufacturing high-end constant current power supply,as the field is much smaller, we concentrate all our attention to the power supply,thus our technology and quality are always in the leading status of waterproof LED driver market.
Parameter of Juson Technology LED outdoor power supply
we can manufacture waterproof LED driver from 10W-300W,you can customise your own voltage output and the output constant current,please see below part of our models
| Model | JSW-LAF-(M30) | JSW-LAF-(S60) | JSW-LAF-(H100) | JSW-LAF-(H150) | JSW-LAF-(H200) |
AC input voltage range | 100-240V | 100-240V | 100-240V | 100-240V | 100-240V |
Output current | M30 0.9A M30A 0.6A M30B 0.5A M30C 0.3A | S60 1.8A S60A 1.25A S60B 1.00A | H100 2.9A H100A 2.1A H100B 1.6A | H150 4.5A | H200 6.00A |
Current Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
DC output voltage | M30 27-36V M30A 35-50V M30B 54-64V M30C 90-105V | S60 27-36V S60A 35-50V S60B 54-64V | H100 27-36V H100A35-50V H100B54-64V | H150 27-36V | H200 27-36V |
| Frequency | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz |
| Power Efficiency | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| Wave and noise | 70mVp-p | 70mVp-p | 70mVp-p | 70mVp-p | 70mVp-p |
| Inlet stability | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Output power | 30W | 60W | 100W | 150W | 200W |
| THD | <6% | <6% | <6% | <6% | <6% |
| Power Factor | 98% | 98% | 98% | 98% | 98% |
| IP rating | IP67 | IP67 | IP67 | IP67 | IP67 |
anti - high voltage | 4000-6000V | 4000-6000V | 4000-6000V | 4000-6000V | 4000-6000V |
anti - Electrical surge voltage | 6000-12000V | 6000-12000V | 6000-12000V | 6000-12000V | 6000-12000V |
| size (mm) | 137x42.3x29 | 140x58.6x43.2 | 183x58.6x43.2 | 213x64.6x40.2 | 213x64.6x40.2 |
RFQQ: Can I have a sample order?A: Yes,we welcome sample order to test and check quality. Mixed samples are acceptable.Q: What's the lead time?A: Samples need 2-3 working days,mass products need 7-15 days. According to your order quantity.Q: How do you ship the goods and how long does it take arrive?A: Express(DHL,UPS,Fedex Or TNT).Air or Sea shipment is available depends on your need. It usually takes 3-7 days to arrive except Sea transportation.Q: How to process the order if I have logo to print?A: We will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation, finally if sample is ok, we will go to mass production. Q: How to deal with the faulty lights ?A: Firstly, our defective rate is less than 0.1%,so usually there is no problem for the drivers.
Secondly, we usually offer 5 years warranty for our power supply.During the warranty period,any problem occurred we will not only compensate you the power supplies,
but also your broken LED luminaires. We focus on outdoor LED illumination project,welcome OEM and ODM,
providing you the best power solution for your outdoor led lights is our duty.
Shenzhen Juson Technology Co., Ltd. Founded in 2010, located in Shenzhen Baoan district, has over 100 employees, it owns high technology research and management team characterized by rich experience and outstanding professional skills.
Distinguished from other LED light, we aim to produce high quality LED lamp, our LED aquarium light are warmly welcomed all over the world as well as our LED driver, the concentration on LED driver also make us have strong strength in LED aquarium light, because the driver can lead to the performance of LED aquarium light.
Currently, the area of factory is more than 2000 square meters, we strictly perform ISO9001: 2000 international quality management system, make the quality meet international standards. Our products got through the quality testing of national technical supervision department and obtain CE, RoHS, FCC TUV etc certificates.
