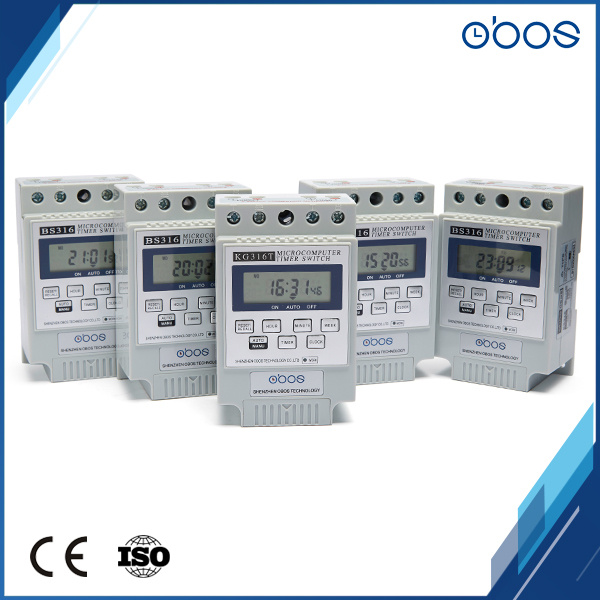

2017 New Style White Built-in Battery Per Day a Circle Timer Switch 220V
| Price: |
US $ 3-6/Piece |
| Min Order: |
6/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Company ProfileShenzhen OBOS science and technology co., LTD., founded in 2006 in shenzhen which is full of vitality and innovation, close to prosperity Hong Kong.
Company has been committing to intelligent automation control of electronic products in the field of research, development, production and sales.
After 10 years of the development , the company has set a good brand image in the market. Now the OBOS products bas been exported to more than countries such as North America, Europe, southeast Asia, Latin America and the Arab countries, etc. KG316T
Function:
The product can open and close all kinds of power supply automatically according to the user's time.
The control objects can be road lamp, neon lamp, billboard, producing equipment, broadcast TV,and all that the circuit fixtures and home appliances need setting time to control.

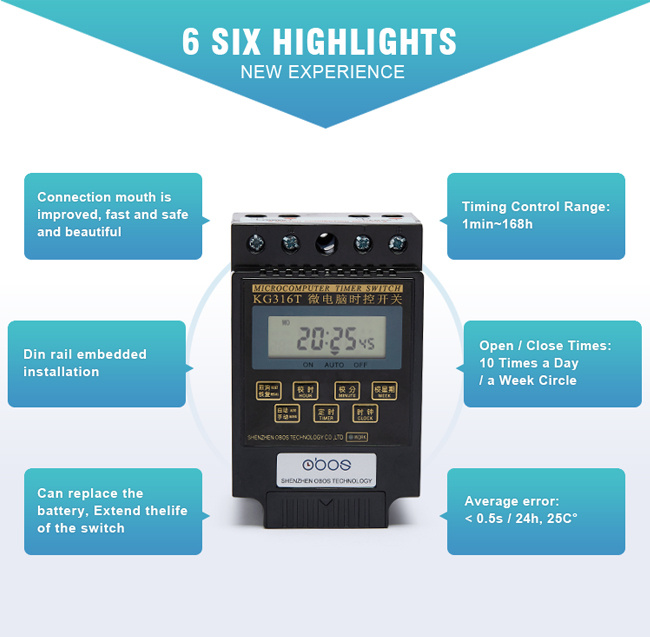

| Model No. | KG316T |
| Working Voltage | 100, 110, 115,120,127,220,230,240V AC |
| Voltage Range | 85-110% |
| Frequency | 50/60Hz |
| Contact Capacity(Resistance) | 25A 250VAC |
| Contact Electrical Life | 100000 Times |
| Machine Life | 10000000Times |
| Build-in Battery | lR03AAA 1.5VDC / 60mAh |
| Battery storage time | 5 years |
| Open / Close Times | 10 Times a Day / a Week Circle |
| Consumed Power | <4W |
| Timing Control Range | 1min-168h |
| Average Error | 0.5s/24h, 25ºC |
| Mini Interval | 1min |
| Main Color | White(Gray), Black |
| External Material | ABS Plastic |
| Temperature | ( -25ºC - +60ºC) |
| Relative Humidity | <95% |
| Weight | 205G |
| Outlione Dimension | 120*75*51.5(mm) |
| Installation | Din Rain 35mm or Screw fix With M3 3pcs,panel |
| shell material | PC material, proof flame |
C
FAQ:
1:what's your company's advantage :
proper performance price ratio
2: Could I put my own logo on it?
Q:Sure, customers' logo can be printed or put on the items.
3: How about the longevity of the items?
Normally 2 years
4:A:Could you provide sample ?
Of course, We provide sample with clients,
5.:How long does it take to make a sample?
Q:Normally within one week.
Thanks for your reading. If any product meets your need, welcome to send us an email. We are sure any of your information will be replyed as soon as possible.Programming steps: 1: Press Timer: Setting 1 ON time(display 1 on). 2: Press H+/M+: Setting hours and minutes. 3: Press D+: Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR, TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key) 4: Press Timer: Setting 1 off time(display 1 off). 5: Press H+/M+: Setting hours and minutes turn off time. 6: Press D+: If you want same set in every day, you need not press this key. 7: Repeat step 2~6: Set 2~6 ON/OFF time. 8: Press C/R: End.
| Prod Model: |
KG316T |
| Working Voltage: |
100, 110, 115,120,127,220,230,240V AC |
| Voltage Range: |
85-110% |
| Frequency: |
50/60Hz |
| Timing Control Range: |
1min-168h |
| Contact Electrical Life: |
100000times |
| Machine Life: |
10000000times |
| Average Error: |
0.5s/24h, |
| Open / Close Times: |
10 Times a Day / a Week Circle |
| Consumed Power: |
<4W |
| Contact Capacity: |
25A 250VAC |
